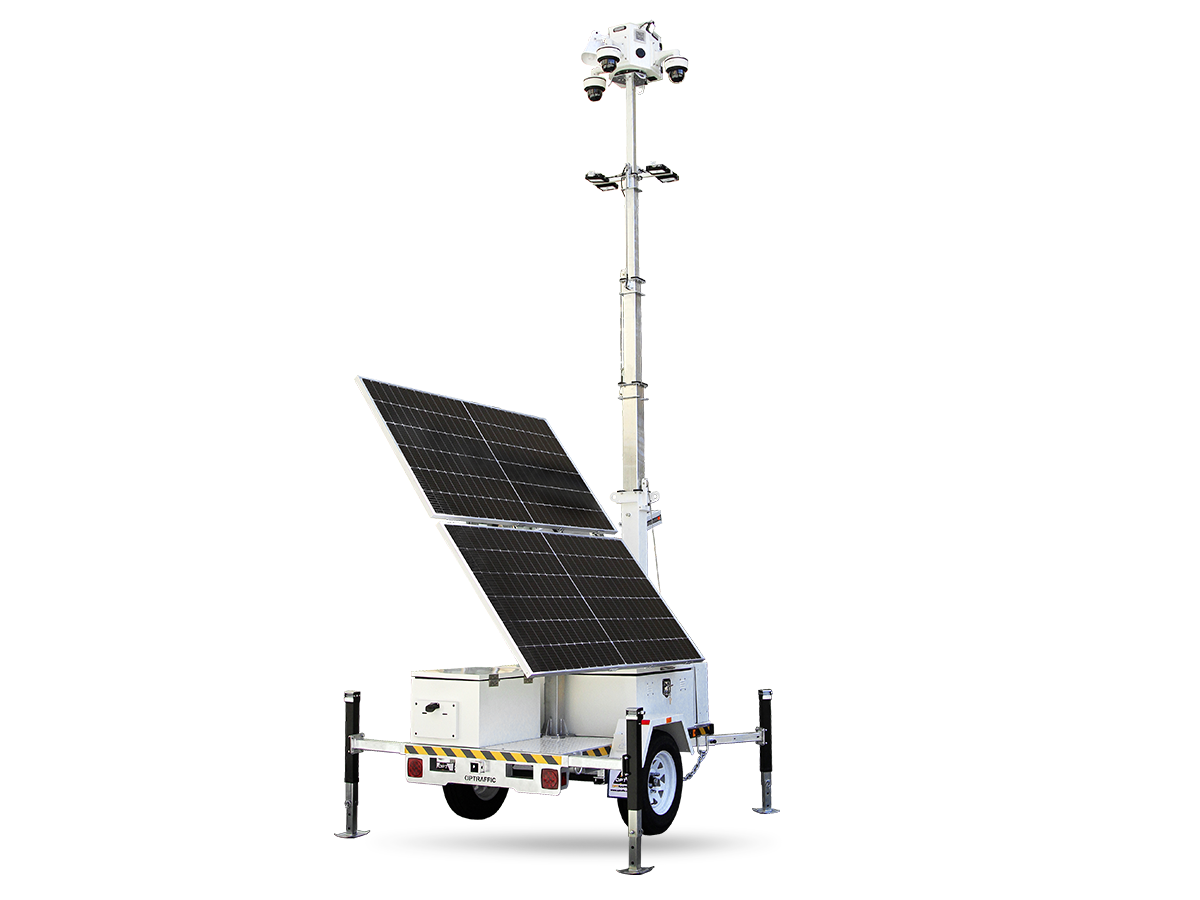

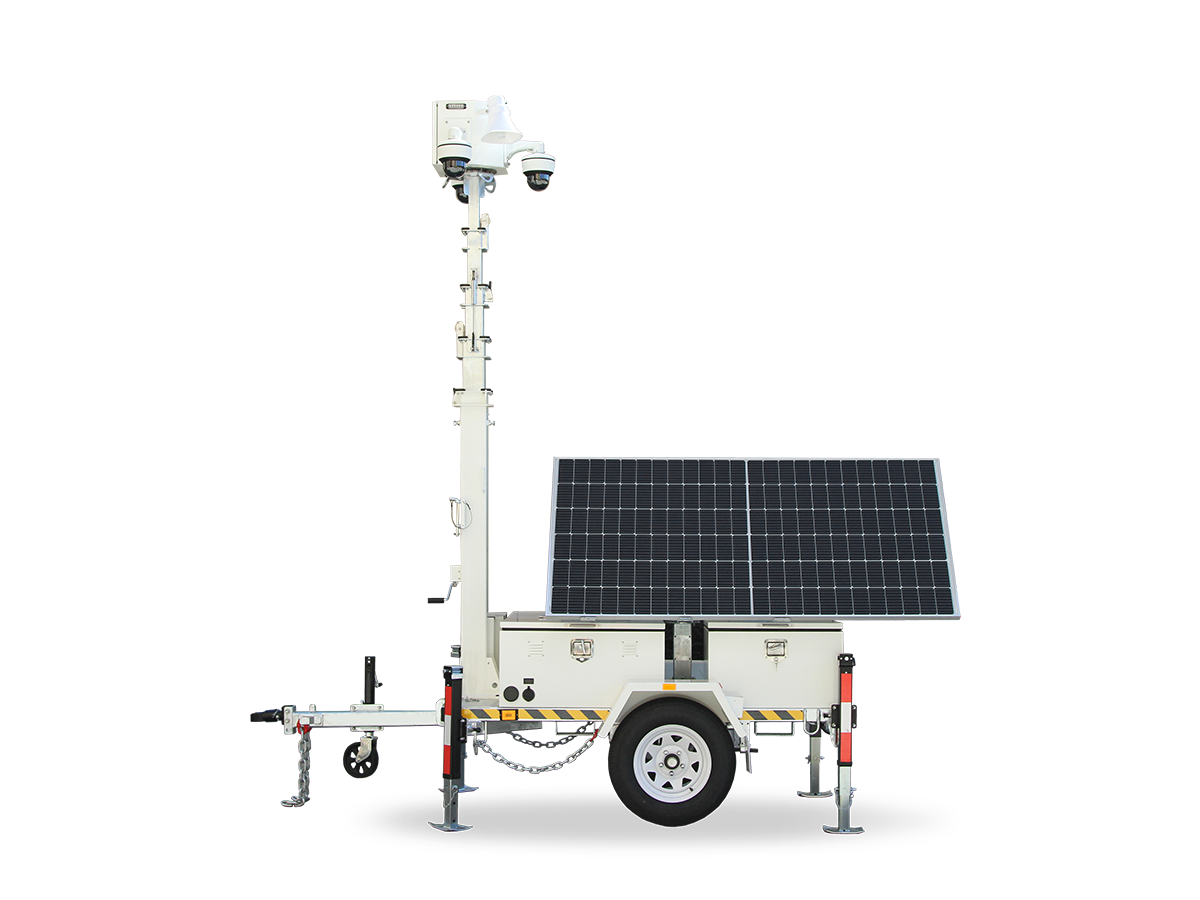

Ultra CCTV Camera Trailer
$1
Mobile Solar Powered CCTV Trailer Live Monitoring
Industries
- Construction
A CCTV camera trailer provides flexible, high-level surveillance for construction sites without the cost and limitations of permanent infrastructure. It can be rapidly deployed to monitor equipment, materials, access points, and perimeter areas, then relocated as the project progresses. Remote monitoring, HD cameras, and solar-powered operation help contractors deter theft, record incidents, and maintain visibility across large or changing sites.
- Energy&Mining
In remote energy and mining environments, a mobile CCTV camera trailer delivers autonomous surveillance where fixed power and network infrastructure may be unavailable or costly to install. Solar power, battery storage, elevated cameras, and wireless connectivity enable continuous monitoring of equipment, stockpiles, access roads, substations, pipelines, and site perimeters, improving asset protection and reducing the need for constant on-site security personnel.
- Public Safety
A CCTV camera trailer gives public safety agencies a rapidly deployable surveillance solution for events, emergency zones, road closures, and other temporary security requirements. High-mounted HD cameras provide wide-area visibility. Units can be repositioned quickly as operational priorities change.
- Security & Surveillance
A mobile CCTV camera trailer extends conventional security coverage to temporary, remote, and large-scale locations without permanent installation. Its mobility also allows security providers to redeploy surveillance assets as site requirements evolve.
Description
As the leading manufacturer with the industry’s broadest range of solar portable solutions, OPTRAFFIC embeds energy-saving and innovative design into every product. Featuring a robust trailer structure, advanced WEB functionality, and the built-in cable mast for enhanced security, the OPTRAFFIC Ultra CCTV Camera Trailer delivers reliable, round-the-clock monitoring for construction sites, mining operations, parking facilities, equipment rental fleets, and other temporary work zones.
Features
- VSMS System for Remote CCTV Management
- Cloud Database for Real-Time Monitoring & Streaming
- Long-Lasting Operation with Low Power Consumption
- Automatic Solar Charging with MPPT Controller
- Easy to Operate and Deploy by One Person
- Compact and Portable Structure for Easy Transportation
- Hot-Dip Galvanized for 20-Year Corrosion Protection
- Maintenance-Free Durable Batteries
- Built-In Cable Mast for Enhanced Security
Specifications

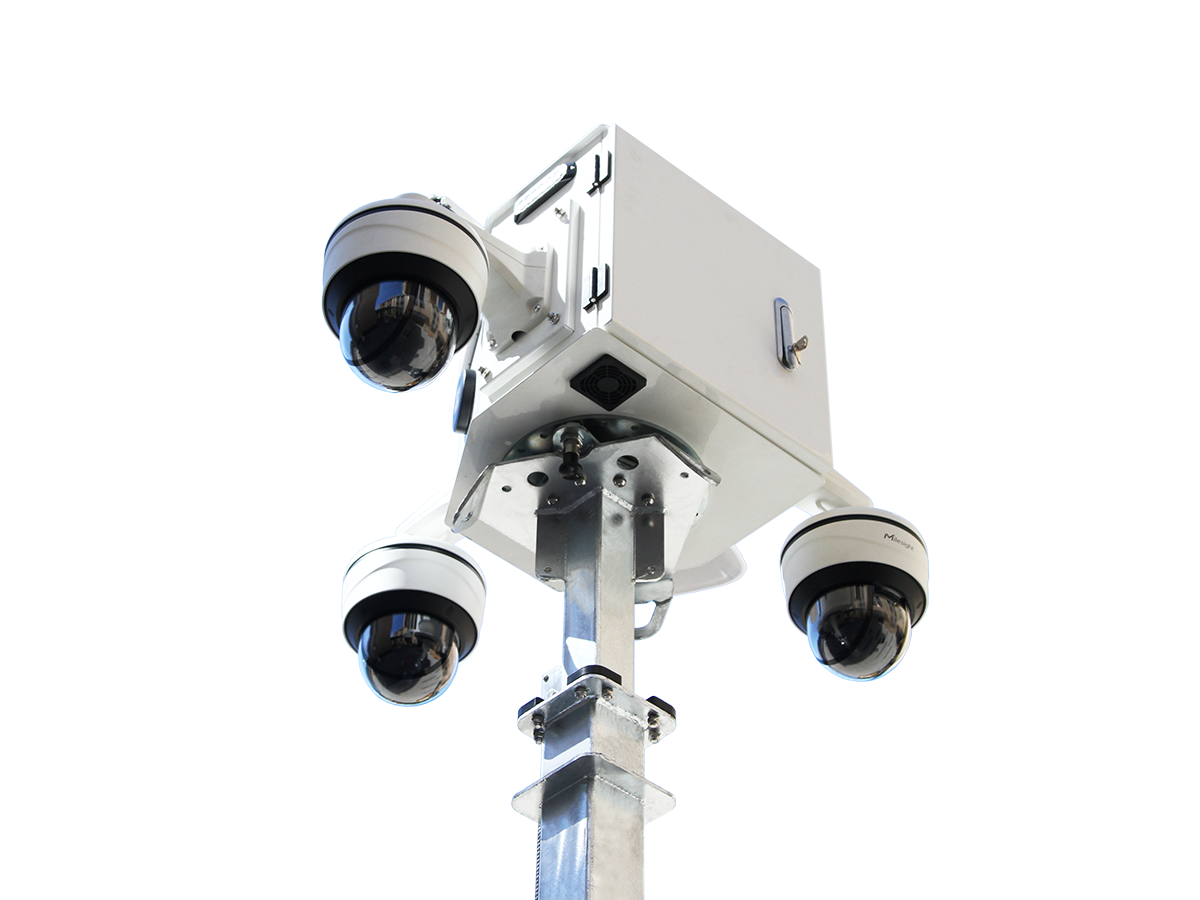

- Camera Options: Standard Model – 3 x 5MP PTZ Cameras, Option – 2 x 5MP PTZ Camera and 1 x 4K Panorama Camera, Custom Model – Customized Cameras
- Local Storage: 256GB
- Work Voltage: 24V
- Solar Panel: 2 x 400W (Double-Sided) Manual Rotation & Electric Tilting
- Battery: 314AH, 25.6V
- Auxiliary Light: 1 x Work Light, 3 x Red/Blue Warning Lights
- Remote Communication: 4G/5G Router
- Running Time: Continuous Uninterrupted Operation
- Mast Height: 7M
- Mast Lifting: Manual Winch Lifting
- Total Weight: 860KG
- Tyre: 185/R14
Software System
VSMS Video Surveillance Management System is an industry-leading, high-performance control ecosystem engineered for complete operational visibility across both web browsers and mobile apps. By seamlessly integrating real-time fleet management, automated event alerts, advanced data analytics, and edge AI algorithms, VSMS empowers you to monitor deployed assets, detect security events instantaneously, and turn critical site data into actionable intelligence—anytime, anywhere.
Advantages
- All-in-One Surveillance — Integrates video, power, communication, and remote management in one unit.
- Rapid Deployment — One-person setup enables fast deployment without complex installation.
- 24/7 Solar Power — MPPT solar charging and low-power operation support reliable off-grid surveillance.
- Remote Monitoring — Access live video and manage the system remotely through VSMS and cloud services.
- Flexible Camera Options — Supports different camera configurations for varied surveillance requirements.
- Easy to Relocate — Compact trailer design allows quick transportation and redeployment.
- Built for the Outdoors — Hot-dip galvanized structure provides long-term corrosion resistance.
- Low Maintenance — Maintenance-free batteries reduce servicing requirements and operating costs.
Applications
- Construction Site — A CCTV camera trailer monitors equipment, materials, entrances, and site perimeters.
- Energy & Mining — Protect remote mines, pipelines, substations, oil fields, and other critical assets.
- Public Events — Provide temporary surveillance for concerts, festivals, stadiums, and large gatherings.
- Critical Infrastructure — Secure power plants, water facilities, airports, utilities, and restricted areas.
- Parking Lot — A mobile CCTV camera trailer helps deter theft, vandalism, and unauthorized access.
- Law Enforcement — Deploy temporary surveillance for checkpoints, investigations, emergency operations, and high-risk locations.
- Vacant Property Protection — Secure empty buildings, development sites, and commercial properties against intrusion.
- Industrial Facilities — Monitor warehouses, storage yards, machinery, and large facility perimeters.
- Emergency Response — A CCTV camera trailer system provides rapid surveillance in disaster zones and temporary emergency sites.
Optional
- Bullet Camera
- PTZ Camera
- Panorama Camera
- 512GB / 1TB Local Storage
- Warning Speaker
- 1.5KW/40A Mains Charger
- Generator
- 8M Mast Height
- Electric Lifting
- Boom Gate
Video
FAQ
How long can the CCTV camera trailer system operate without sunlight?
Runtime depends on camera configuration, power consumption, weather, and battery capacity; the system is designed for extended autonomous operation.
How large an area can one mobile CCTV camera trailer cover?
Coverage depends on camera type, lens, mounting height, and site layout; the 7m mast provides an elevated viewpoint for 360°wider surveillance.
Are you a CCTV camera trailer manufacturer or a trading company?
OPTRAFFIC is a direct manufacturer with in-house R&D and production capabilities, providing factory-direct solutions for global projects.
Can I customize the mobile CCTV camera trailer for my project?
Yes. Camera configuration, solar capacity, battery system, mast height, trailer structure, color, branding, and other specifications can be customized. Feel free to contact us.
Do you offer better pricing for bulk orders?
Yes. Factory-direct pricing and volume discounts are available for fleet, wholesale, and project orders.
What warranty do you provide?
Warranty terms depend on the configuration and project requirements and are confirmed in the formal quotation.
Can the mobile CCTV camera trailer provide night surveillance?
Yes. Camera configurations with night-vision capability can provide surveillance in low-light conditions.
