Patented Lens VMS Trailer
$1

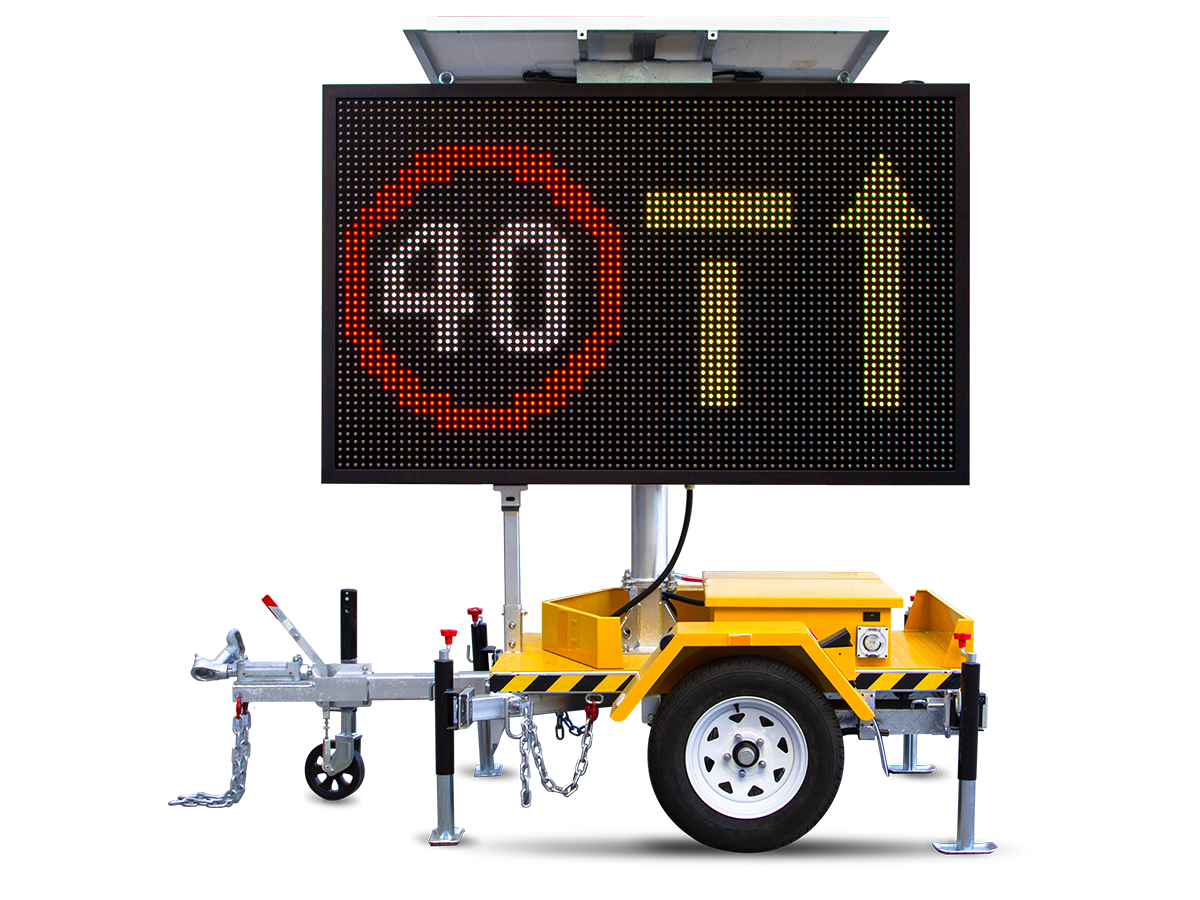

EN12966 Patented Lens VMS Traffic Trailer
Programmable Message, Text, and Patterns
Industries
- Traffic Safety
Boost road safety with the OPTRAFFIC vms traffic control trailer. Fully EN12966-compliant, it delivers clear, high-visibility alerts during lane closures, detours, and speed enforcement. The patented optical lens eliminates glare for oncoming drivers, ensuring maximum legibility in heavy rain or fog. Continuous solar power provides reliable 24/7 performance to protect highway work zones.
Description
OPTRAFFIC delivers high-performance variable message sign trailer for highways, built with our patented lens technology. Independently developed to meet EN12966 standards, the lens display improves optical performance by 10 times, ensuring exceptional visibility, Ultra-low power consumption, and long-term reliability. Ideal for gantry, tunnel, and critical highway applications.
Features
- Compliance with EN12966-1:2005 + A1:2009 standard
- 10× Optical Performance with Ultra-Low Power Consumption
- Highly visible and legible in all weather conditions
- Robust lens structure with highest luminosity
- Tailor-made sizes according to all different requests
- All LEDs and accessories are with premium quality
- Simplest structure and modular design for easiest maintenance
- High energy efficiency and Free-Maintanence
Specifications
- Module Size: 320*160mm/256*128mm/320*160mm/200*20mm
- Module Resolution (pixels): 32*16/16*8/16*8/8*8
- Pixel Pitch: 10mm/160mm/20mm/25mm
- Led Composition: RGB SMD LENS
- Voltage: 110V-230V AC
- Average Power (W/M²): 97/72/45/38
- Housing: Anti-UV Powder Coated Aluminium or Steel Case
- Maintenance Access: Front or Rear Access
- Certifications: EN12966, IP65
- Conformity: B6/B7, L3, L3, C2, R3, T1-T
Patented Optical Lens System
- Patented Optical Lens Design
OPTRAFFIC patented lens system shapes and directs LED light straight into the driver’s view, preventing light waste. This delivers a 10× optical boost and high contrast. By cutting power draw, it keeps the VMS traffic trailer running longer on solar energy. - Optimized Vertical Stripe Mask
The vertical stripe mask acts as a built-in sunshield, stopping intense glare from washing out the screen. Its clever geometric design uses gravity to shed dust and rainwater, keeping messages crystal clear in heavy storms without manual cleaning. - Front & Rear Access Maintenance
OPTRAFFIC lens screens offer both front and rear maintenance options, ensuring easy servicing across various installation environments and significantly reducing downtime and maintenance costs.
Operation System
- WEB system – remote operation system
- Flexible communication options
- On-site tablet for on-site control
Application
- Highway Construction Zones –VMS traffic trailers display lane closures and safety alerts with enhanced long-range visibility.
- Road Maintenance Projects – The VMS traffic trailer delivers clear, real-time traffic information for temporary worksites.
- Traffic Diversions – VMS traffic control trailers guide drivers through detours and changing road conditions.
- Emergency Response – Communicate road closures, accident warnings, and emergency instructions instantly.
- Special Events – Manage vehicle flow efficiently during concerts, sports events, and large public gatherings.
- Urban Traffic Management – Deploy a variable message sign trailer to provide dynamic traffic updates at busy intersections.
- Airport & Port Access – Improve traffic organization with clear directional and operational messages.
- Work Zone Safety – VMS traffic control trailers help protect workers and motorists with highly visible warnings.
- Disaster Evacuations –VMS traffic trailers provide critical routing and evacuation information when needed.
Optional
- Size & Pixel Pitch
- Customized display specifications
- Cabinet Material
- Anti-corrosion aluminum or galvanized steel
- Cabinet Color
- Multiple powder coating colors available
- Onsite Tablet
- Handheld Android controller
FAQ
Do your mobile VMS trailers support solar power or hybrid energy options?
OPTRAFFIC VMS trailers are designed for ultra-low power consumption and support solar panels and battery system.
What are the maintenance requirements for OPTRAFFIC VMS traffic trailer units?
OPTRAFFIC VMS traffic trailers are engineered for long-term reliability with low maintenance — typically limited to routine inspections and battery checks.
How does your patented lens tech improve visibility of VMS traffic control trailer ?
The lens system enhances LED light direction and focus, increasing brightness and clarity by 10× while reducing energy consumption.
Can I change the screen message using my phone, or do I need a laptop?
You can easily do it with your phone. Our WEB system lets you update text, change speed limits, or upload symbols instantly from your smartphone or tablet.
Can one person set up the VMS traffic trailer alone, or does it need a team?
One worker can easily set it up in under five minutes. The trailer uses a smooth hand winch to raise the screen. The stabilizing legs drop down and lock into place quickly without any heavy lifting.
Can the screen show local European traffic symbols, or just text?
It shows both perfectly. The software library comes pre-loaded with standard European road signs, arrows, and speed symbols. We also provide custom services for any language you need.
