Patented Lens Vehicle-Mounted Message Signs
$1
EN12966 Standards Patented Lens Vehicle-Mounted Message Signs
Industries
- Traffic Safety

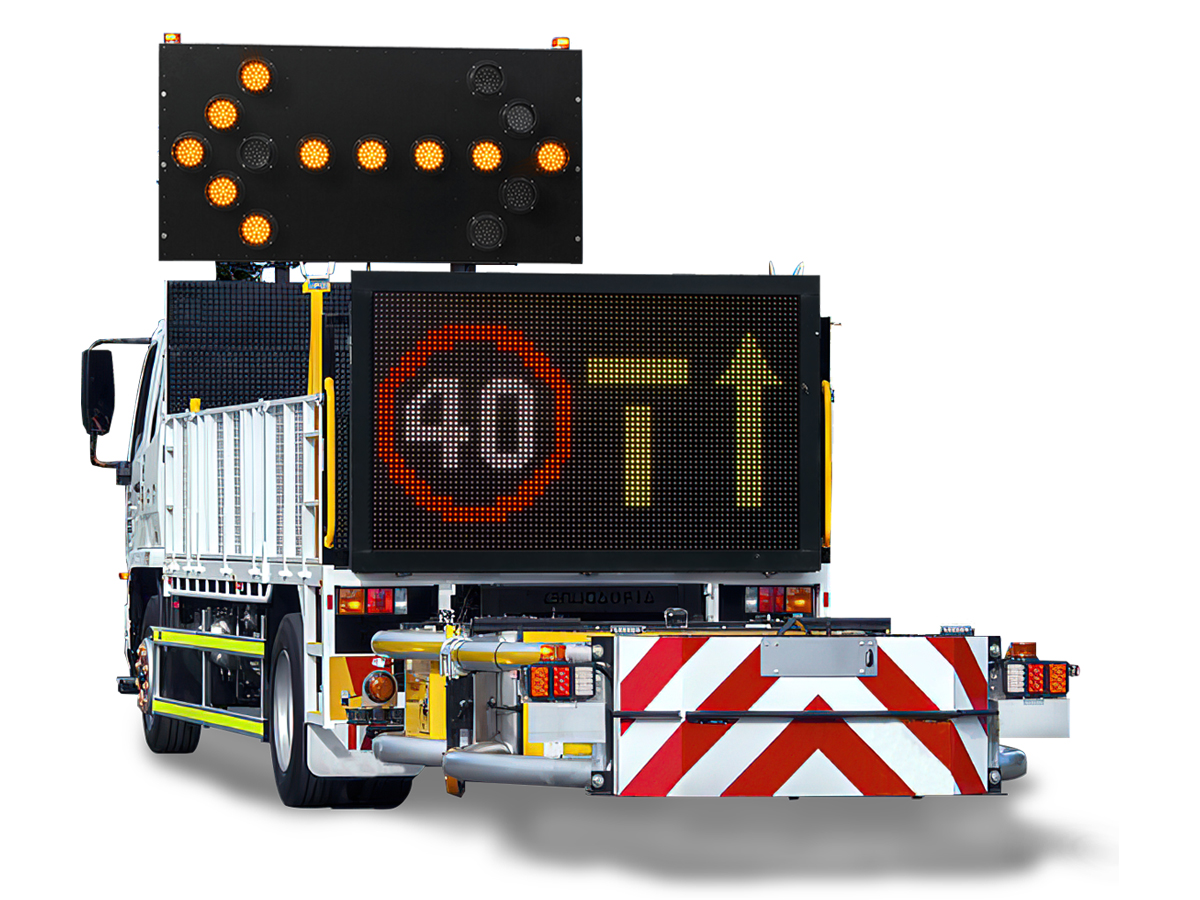

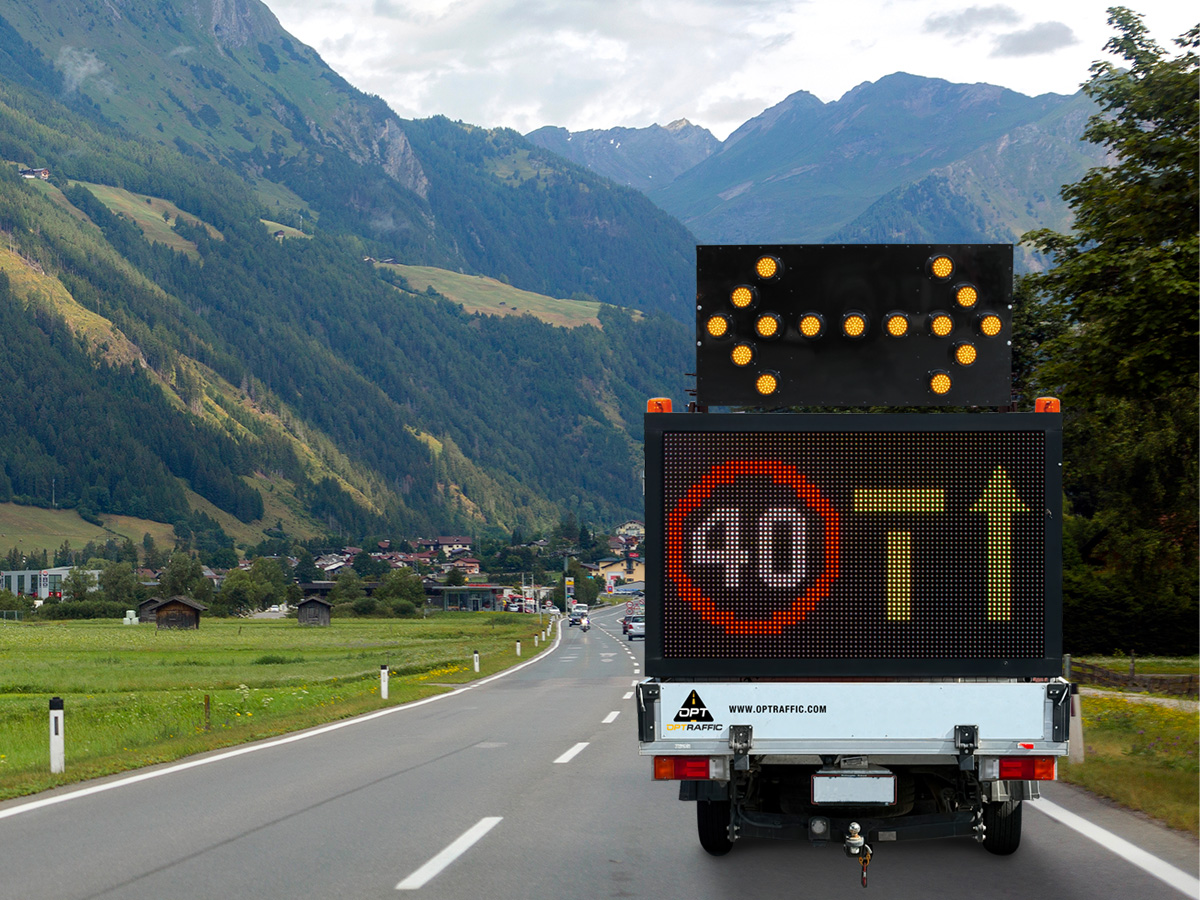

EU standard vehicle-mounted message signs offer instant, on-site traffic alerts for roadworks, accidents, and emergency closures. Highly visible and EN12966-compliant, they enhance traffic safety by guiding drivers in real time – right from the vehicle. Ideal for highway patrol, utility fleets, and maintenance crews.
Description
OPTRAFFIC delivers high-performance VMS solutions for highways, built with our patented lens technology. Independently developed to meet EN12966 standards, the lens display improves optical performance by 10 times, ensuring exceptional visibility, Ultra-low power consumption, and long-term reliability. Ideal for gantry, tunnel, and critical highway applications.
Features
- Compliance with EN12966-1:2005 + A1:2009 standard
- 10× Optical Performance with Ultra-Low Power Consumption
- Highly visible and legible in all weather conditions
- Robust lens structure with highest luminosity
- Tailor-made sizes according to all different requests
- All LEDs and accessories are with premium quality
- Simplest structure and modular design for easiest maintenance
- High energy efficiency and Free-Maintanence
Specifications
- Module Size: 320*160mm/256*128mm/320*160mm/200*20mm
- Module Resolution (pixels): 32*16/16*8/16*8/8*8
- Pixel Pitch: 10mm/160mm/20mm/25mm
- Led Composition: RGB SMD LENS
- Voltage: 110V-230V AC
- Average Power (W/M²): 97/72/45/38
- Housing: Anti-UV Powder Coated Aluminium or Steel Case
- Maintenance Access: Front or Rear Access
- Certifications: EN12966, IP65-IP
- Conformity: B6/B7, L3, L3, C2, R3, T1-T
Patented Optical Lens System
- Patented Optical Lens Design
OPTRAFFIC patented optical lens system concentrates LED light more efficiently, enhancing brightness and contrast. This delivers up to 10× improvement in optical performance while significantly reducing power consumption. - Optimized Vertical Stripe Mask
The upgraded vertical stripe mask design offers superior contrast and reduces water and dust buildup on the display surface, ensuring long-term clarity in all weather conditions. - Front & Rear Access Maintenance
OPTRAFFIC lens screens offer both front and rear maintenance options, ensuring easy servicing across various installation environments and significantly reducing downtime and maintenance costs.
Operation System
- WEB system – remote operation system
- Flexible communication options
- On-site tablet for on-site control
Optional
- Size & Pixel Pitch
- Customized display specifications
- Cabinet Material
- Anti-corrosion aluminum or galvanized steel
- Cabinet Color
- Multiple powder coating colors available
- Onsite Tablet
- Handheld Android controller
FAQ
Are your vehicle-mounted message signs easy to install on different trucks?
Yes, our vehicle-mounted message signs are designed for universal mounting and can be easily installed on various truck models with standard brackets.
What message formats do OPTRAFFIC truck mount message signs support?
OPTRAFFIC message boards support text, arrows, symbols, and animations, all customizable based on traffic needs or emergency use.
How does OPTRAFFIC patented lens tech improve VMS visibility?
The lens system enhances LED light direction and focus, increasing brightness and clarity by 10× while reducing energy consumption.
