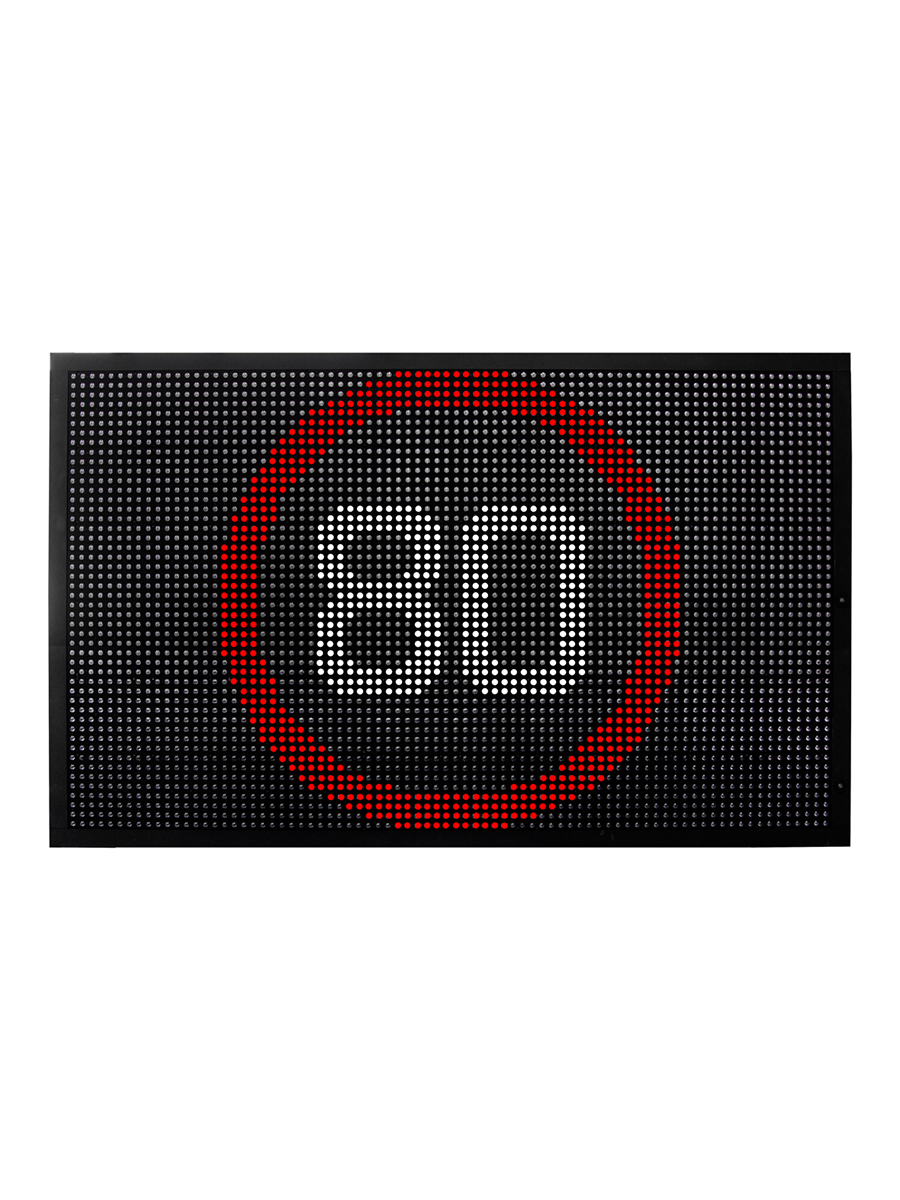

EU Standard Variable Speed Limited Sign
$1
EN12966 Standards Patented Lens Variable Speed Limited Sign
Industries
- Public Safety
EU standard variable speed limited signs help reduce accidents by adjusting speed limits in real time. Ideal for tunnels, school zones, and highways, they meet EN12966 standards and boost public safety with high-visibility, smart traffic control.
- Traffic Safety
EU standard VMS trailers deliver high-visibility messages anywhere—ideal for lane closures, detours, or speed enforcement. Fully EN12966-compliant, weatherproof, and solar-powered, they improve traffic safety during roadworks, events, and emergencies. Deploy in minutes, impact instantly.
Description
OPTRAFFIC offers high-performance Variable Speed Limit Signs (VSLS) and Lane Control Signs (LCS) designed to enhance road safety and traffic efficiency. Engineered with certified optical lens displays and low power LED modules, both systems deliver exceptional visibility under all conditions. Whether controlling dynamic speed limits or indicating lane status, OPTRAFFIC solutions support intelligent traffic management across highways, tunnels, toll zones, and urban areas. Remote and local control options ensure flexible operation to meet a wide range of project requirements.
Features
- EN12966 certified optical lens display
- Patented optical design for ultra-low power consumption and high brightness
- High-intensity LED for clear visibility in all conditions
- Supports both remote web-based control and onsite tablet operation
- Customizable display size, LED module configuration, and color options
- Robust, weather-resistant construction for demanding outdoor environments
- Multiple communication protocols available
- Ideal for intelligent traffic and automation systems
Specifications
- Module Size: 320*160mm/256*128mm/320*160mm/200*20mm
- Module Resolution (pixels): 32*16/16*8/16*8/8*8
- Pixel Pitch: 10mm/160mm/20mm/25mm
- Led Composition: RGB SMD LENS
- Voltage: 110V-230V AC
- Average Power (W/M²): 97/72/45/38
- Housing: Anti-UV Powder Coated Aluminium or Steel Case
- Maintenance Access: Front or Rear Access
- Certifications: EN12966, IP65-IP
- Conformity: B6/B7, L3, L3, C2, R3, T1-T
Patented Optical Lens System
- Patented Optical Lens Design
OPTRAFFIC patented optical lens system concentrates LED light more efficiently, enhancing brightness and contrast. This delivers up to 10× improvement in optical performance while significantly reducing power consumption. - Optimized Vertical Stripe Mask
The upgraded vertical stripe mask design offers superior contrast and reduces water and dust buildup on the display surface, ensuring long-term clarity in all weather conditions. - Front & Rear Access Maintenance
OPTRAFFIC lens screens offer both front and rear maintenance options, ensuring easy servicing across various installation environments and significantly reducing downtime and maintenance costs.
Operation System
- WEB system – remote operation system
- Flexible communication options
- On-site tablet for on-site control
Applications
- Highway Safety — Variable speed limit signs adjust speeds to manage congestion and improve traffic flow.
- Work Zones — LED speed limit signs enhance safety by adapting speeds in construction zones.
- School Zones — Adjust speeds during school hours to protect students and pedestrians.
- Remote Areas — Solar variable speed limit signs offer a reliable solution for off-grid traffic management.
- High-Risk Roads — LED speed limit signs optimize safety on tunnels and hazardous roads by adjusting speeds.
Optional
- Size & Color
- Customized trailer appearance
- Speed Radar
- High-accuracy speed detection system
- Onsite Tablet
- Handheld Android controller with App system
- Mast Lock
- Mechanical safety device
Setup
- Easy to transport by towing vehicles or forklifts
- Wheel chocks to ensure safety during operation
- Extendable outriggers and jacks for increased stability
- 360-degree rotatable display for optimal direction
- Hydraulic lifting system to adjust the height of display
Power System
- Low power consumption allows 24/7 operation throughout a year
- High-efficiency solar panels and MPPT controller
- Optional solar panels tilting system to adjust to optimal direction
- Real-time battery and voltage indicator
- Additional solar panels and batteries available
- Anti-vandal safety lock for battery box
Maintenance
- Easy replacement of LED modules and standard trailer parts
- Software system maintenance and upgrade
- Anti-corrosion hot galvanized steel structure
- Durable anti-UV powder-coated finish
- Quick response of aftersales services
FAQ
What kind of LED technology is used in your EU variable speed limit signs?
We use high-brightness, low-power LEDs with long lifespans and optimized visibility in all weather and lighting conditions.
What are the typical applications for variable speed limit signs in the EU?
Variable speed limit signs are ideal for highways, tunnels, toll zones, bridges, and construction areas where dynamic speed control improves safety and traffic flow.
What mounting options are available for speed Limited Signs?
We offer gantry-mounted, pole-mounted, and trailer-mounted installations depending on site requirements and local regulations.
