What Is a Three-Line Message Sign? Specs, Applications & Compliance Guide

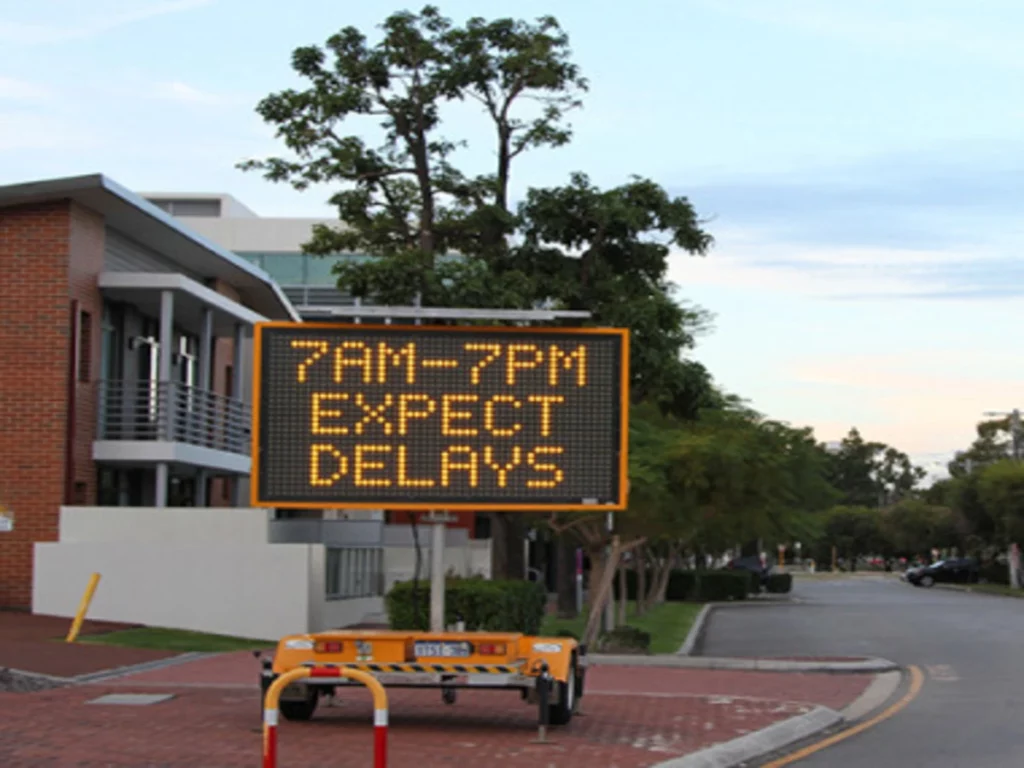

A three-line message sign is a portable electronic display that shows up to three lines of text, typically eight characters per line, to warn drivers of work zones, incidents, or detours ahead.

It goes by several names in the field — three-line VMS, three-line changeable message sign, or PCMS (portable changeable message sign) — but the defining trait is the same across all of them: text-based messaging built around a fixed three-line layout, not a full graphic matrix.

This guide covers what the sign actually is, the specifications that govern it in the US, UK, and Australia, where rental fleets and system integrators typically deploy it, and how to keep a fleet of them running without a truck roll for every message change.

What Is a Three-Line Message Sign?

Under the FHWA Manual on Uniform Traffic Control Devices (MUTCD), a message displayed on a changeable message sign shall consist of no more than two phases, and each phase shall consist of no more than three lines of text. That two-part rule — three lines per phase, two phases per message — is the regulatory backbone behind why the three-line message sign format exists at all: it is the layout MUTCD assumes for straightforward, single-thought roadway messaging.

Physically, most units mount on a trailer or truck bed for quick repositioning. The FHWA Portable Changeable Message Sign Handbook notes that most PCMS units allow only eight characters on a line regardless of character height, with each character built from a minimum five-by-seven pixel grid.

A three-line message sign is not the same thing as a full-matrix VMS, which uses a continuous pixel grid to render graphics, arrows, or lane-status icons. Three-line units are built for text only. For a full breakdown of how line count affects sign selection, see our guide to 2-line, 3-line, and 5-line changeable message signs; for graphic-capable formats, see our multi-screen VMS explainer.

Most trailer-mounted units run on solar power with battery backup, so the sign keeps operating through extended overcast periods without a mains connection. Message content is written using the MULTI markup format defined under NTCIP 1203, which handles character positioning, page timing, and flash sequencing across the three lines — the same underlying data structure regardless of which manufacturer built the controller.

Why Rental Fleets and Integrators Default to Three-Line VMS

For a rental company quoting a work-zone contract or an integrator specifying equipment for a DOT bid, the three-line format solves a specific problem: it delivers MUTCD-compliant messaging without the cost, weight, and programming complexity of a full-matrix board.

A full-matrix VMS costs more per unit, draws more power, and requires operators to learn a graphics-capable interface for jobs that only ever need text. Most work-zone and incident-warning use cases never call for arrows or icons — three lines of eight characters covers the message. Specifying a three-line unit for these jobs keeps the fleet’s per-unit cost down without giving up MUTCD or NTCIP 1203 compliance.

The trade-off runs the other way for jobs that do need lane-status graphics, bilingual rotating messages, or multi-screen displays — those call for full-matrix formats instead. Matching sign type to message complexity, not defaulting to the highest-spec unit on the lot, is what keeps a rental fleet’s cost-per-deployment competitive.

Three-Line Message Sign Specifications and Standards

Specification requirements for a three-line message sign vary by jurisdiction. The table below summarizes the governing standard and core requirement each market’s rental fleets and integrators need to check before deployment.

Market	Governing standard	Core requirement	Regulator
United States	MUTCD 11th Edition, Section 6L.05	Max 3 lines per phase, max 2 phases, ≤8 sec total display time	FHWA
United Kingdom	Traffic Signs Manual Chapter 8 / BS EN 12966:2014+A1:2019	Luminance and legibility conformity testing per BS EN 12966	DfT / BSI
Australia	AS 1742 / AS 4852.2 (portable VMS)	Luminance, legibility, and structural stability for portable units	Standards Australia

Character height on US units typically ranges from 18 to 54 inches depending on matrix type, with legibility distance scaling directly with letter height — taller characters read from farther away, which matters most on higher-speed roads. Per the FHWA PCMS Handbook, legibility distance is based on the standard that a 1-inch character can be read from 40 feet; an 18-inch character therefore reads clearly from roughly 720 feet under good conditions, which is why full-size units stay on interstate and arterial work zones rather than local streets.

NTCIP 1203 governs the data layer separately from physical specs: it defines how a sign’s controller exchanges message text, timing, and status with a Traffic Management Center over SNMP, so a fleet can mix hardware from more than one manufacturer under one command structure. For a rental company bidding state DOT contracts, NTCIP 1203 support is typically a line item in the procurement spec, not an optional feature — confirm it in writing before the bid goes in, not after award.

A newer reference worth flagging for US procurement teams: the Oregon DOT Portable Changeable Message Sign Handbook, updated March 2026, sets current guidance on message phasing and avoiding “repeating-line” formats that slow driver reading time.

Common Applications for Three-Line VMS Trailers

Rental fleets and system integrators deploy three-line message signs across a narrow set of recurring scenarios, each with its own compliance and logistics pressure point:

• Work zones. Advance warning of lane closures, reduced speed limits, or worker presence — the highest-volume use case for highway contractors and DOT-facing rental fleets.
• Incident and congestion management. Rapid deployment to warn of accidents, severe congestion, or hazardous weather conditions ahead of the hazard itself. These deployments are unplanned by nature, which is why solar/battery autonomy — not a mains hookup — determines whether a unit is field-ready on short notice.
• Special events. Parking direction, detour routing, and crowd management messaging for festivals, marathons, and stadium traffic. Event contracts typically run a few days, so integrators need signs that revert automatically to a standard message once the event schedule ends, rather than requiring a crew to manually reset each unit.
• Emergency response. Evacuation instructions or Amber Alerts pushed to multiple units across a region during active incidents. This is the scenario where NTCIP 1203 compliance stops being optional — state dispatchers need to push a mandatory override to every connected sign at once, regardless of which rental company or manufacturer supplied it.

Across all four, the sign’s job stays the same: give drivers one clear, brief instruction with enough advance notice to act on it safely. What changes scenario to scenario is how fast the message needs to change and who needs authority to change it — both of which point back to fleet software, not the sign hardware itself.

Full-Size vs. Mini Three-Line Signs: Which Fits Your Deployment

MUTCD ties character height directly to posted speed. Standard highway boards generally use 18-inch characters, while MUTCD allows 14-inch characters on roads posted at 45 mph or below — the basis for the smaller “mini” three-line sign category common on local streets, event sites, and public safety checkpoints. A full-size unit on a low-speed municipal street is often oversized for the deployment; a mini unit on a high-speed highway shoulder will not meet legibility distance requirements.

For a rental fleet stocking both classes, the practical decision rule is simple: check the posted speed limit of the deployment site first, then confirm the trailer’s tow weight and footprint fit the site’s access constraints. A highway contractor bidding interstate work zones needs full-size units on hand; an integrator servicing municipal event contracts and school-zone work gets more utilization out of a mini-class fleet that a single technician can tow with a standard vehicle.

For the full sizing, towing, and deployment-scenario comparison, see full-size vs. mini three-line VMS.

Managing a Three-Line VMS Fleet

A single three-line message sign is simple to manage manually. A fleet of them spread across multiple job sites is not. Rental operators and integrators running more than a handful of units typically move to centralized fleet software — for the full comparison of free versus subscription-based platforms, see three-line VMS fleet management software.

Optraffic has manufactured traffic safety equipment, including three-line VMS trailers, since 2008, with deployments across the US, UK, and Australia. Units ship with 4G remote programming and NTCIP 1203 support built in, so a rental fleet can standardize on one control system regardless of how many trailers are on the lot.

FAQ: Three-Line Message Signs

---

For a full look at how portable traffic equipment fits into a broader deployment plan, see our traffic management strategies guide. To review specifications for Optraffic’s three-line VMS trailers, contact the Optraffic team.
