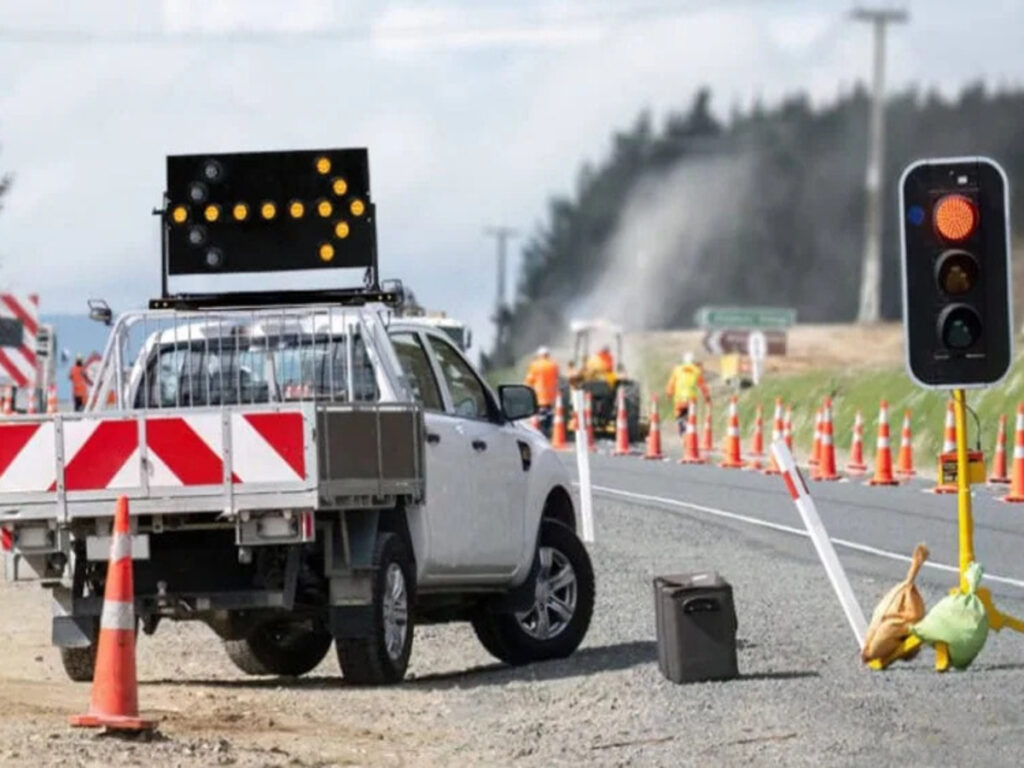

Truck-Mounted Arrow Board: Complete Buyer’s Guide for Fleets and Rental Companies

Procurement teams buying truck-mounted arrow boards for the first time — or scaling an existing fleet — consistently face the same four decision points: which MUTCD type matches the deployment road class, which fold system fits the crew workflow, which mounting bracket works across the fleet’s vehicle mix, and what compliance documentation to request before accepting delivery.

Get any one of these wrong and the consequences are immediate: a Type B panel on a freeway lane closure fails a DOT inspection; a manual-fold Type C on a live TMA operation requires two crew members where one should suffice; a mismatched bracket costs two days in the fabrication shop.

This guide addresses all four decision points. It draws on MUTCD §6L.06 specifications and Optraffic’s product range to give rental companies and contractors a single reference before placing an order.

Truck-Mounted vs Trailer-Mounted: One Decision to Make First

Before specifying a truck-mounted arrow board, confirm the deployment model warrants a vehicle-integrated solution. The distinction is straightforward:

Factor	Truck-Mounted	Trailer-Mounted
Mobility	Moves with the truck instantly	Requires towing vehicle to relocate
Setup time	Board deploys from the cab	Requires towing, unhitching, levelling
Best for	Mobile operations, frequent relocation	Stationary or semi-permanent setups
Power source	Vehicle electrical system (12V/DC9–36V)	Solar + battery (autonomous)
Crew requirement	1 operator from cab (with power tilt)	1–2 operators on-site

If the project requires a board to move with traffic flow, shadow a work crew across kilometres of road, or relocate multiple times per shift — truck-mounted is the correct choice. For stationary deployments lasting days or weeks in one position, a trailer-mounted solar board is more operationally efficient.

For a full project-type comparison, see Arrow Board Trailers vs Truck-Mounted Arrow Boards: Which Is Better?

Truck-Mounted Arrow Board Size and MUTCD Type: What the Spec Sheet Must Show

MUTCD §6L.06 (11th Edition Revision 1, effective March 5, 2026) classifies truck-mounted arrow board panels by minimum illuminated panel area, minimum element count, and minimum legibility distance. These are the thresholds from Figure 6L-6:

Type	Minimum Panel Size	Min. Elements	Min. Legibility Distance	Road Speed
A	48 × 24 in (1,152 in²)	12	½ mile (~805 m)	< 45 mph
B	60 × 30 in (1,800 in²)	13	¾ mile (~1,207 m)	45–65 mph
C	96 × 48 in (4,608 in²)	15	1 mile (~1,609 m)	≥ 65 mph

Source: MUTCD 11th Edition Revision 1, §6L.06 and Figure 6L-6. Full PDF: mutcd.fhwa.dot.gov/pdfs/11th_Edition/mutcd11thedition.pdf

Two critical verification points at delivery:

1. Request the certified illuminated panel area in in² — not the outer frame dimensions. A 72×36 in outer frame with a 60×30 in display area is a Type B, not a Type C.
2. Confirm element count against the threshold for the claimed type. Commercial products routinely exceed the MUTCD minimum — a 15-lamp panel on a 60×30 in face exceeds the 13-element Type B minimum, which is by design, not an error.

For the full size and lamp count selection guide, see Truck-Mounted Arrow Board Size & Lamp Guide: Type A, B, C and Lamp Count Explained.

Choosing the Right Arrow Board for Your Truck Type

The vehicle determines three compliance variables: the required MUTCD panel type, the mounting method, and the power approach. Each vehicle class has a distinct spec profile:

TMA Trucks

TMA (Truck-Mounted Attenuator) shadow vehicles operate exclusively at freeway speed. Type C is mandatory — minimum 96×48 in panel, minimum 15 elements, legibility ≥ 1 mile. Mounting must be rear-face with fold-down capability; a 30-element panel at full highway weight requires an electric fold actuator for single-operator retraction.

Utility Trucks

Bucket trucks, boom trucks, and line-maintenance vehicles deploy across a wide speed range. Type B (60×30 in minimum) covers most arterial and highway utility work up to 65 mph. Type C applies for freeway right-of-way operations. Ladder rack or bed-frame mounting is standard; confirm rack static load rating before ordering a Type C panel with steel frame.

Flagger Vehicles and Half-Ton Pickups (F-150, Ram 1500)

Flagger operations at or below 45 mph use Type A or B. For pickup trucks used as shadow vehicles on 65 mph highways, Type C applies — verify the bed-frame mount positions the bottom of the panel at or near the 2.1 m (7 ft) guidance height from §6L.06.

For a full vehicle-class decision matrix, see Arrow Board for Trucks: TMA, Utility Trucks, and Flagger Vehicles Spec Guide.

Power Tilt, 90°, and Manual Tilt: Matching the Fold System to Your Fleet

Fold system selection is the most frequently under-specified decision in a truck-mounted arrow board procurement. The three options:

Manual tilt — lowest cost, requires physical effort to raise and lower. Acceptable for low-frequency deployments on local roads where the operator can safely exit the vehicle.

90° power tilt — electric actuator raises the board to vertical (display facing traffic) and lowers to horizontal (transport position). One-operator from-cab operation. Suitable for most highway and arterial deployments.

180° power tilt — board travels from flat transport position through vertical to fully inverted storage position. The full inversion clears the panel from the vehicle’s sight lines when not in use. Preferred for fleets where the truck serves dual roles (arrow board operations and standard maintenance work).

The operating temperature range of the actuator matters for Canadian deployments — confirm performance specification at −40 °C before ordering for Ontario or northern US winter operations.

For a detailed comparison of all three configurations, see Manual Tilt vs 90° vs 180° Power Tilt Truck Arrow Board: Which Is Right for Your Fleet?

MUTCD and MTO Compliance: What to Verify Before Deployment

For US projects, §6L.06 requires controllers to produce four display modes (sequential arrow, flashing caution, flashing arrow, sequential bars) at 25–40 flashes per minute. The 50% nighttime dimming requirement is a Standard (mandatory), not a Guidance. Request the dimming specification in writing before accepting delivery.

For Ontario (Canada) projects, OTM Book 7 (April 2022) uses the same Type A/B/C classifications as MUTCD. “MTO approved” is not a product registry — it means the deployment plan incorporating the board has been reviewed by the MTO district office via a Traffic Control Plan (TCP). Confirm the supplier can provide TCP-compatible documentation. Worker competency under O.Reg. 213/91 §67 is a separate legal requirement.

For the complete US–Canada compliance comparison, see MUTCD and OTM Book 7: Truck-Mounted Arrow Board Compliance for US and Canada.

For recommended mounting height, see What Is the Recommended Height for a Truck Arrow Board?

What to Check Before Buying Truck-Mounted Arrow Boards

For rental companies and contractors building or scaling a fleet, these are the six verification points that prevent costly post-delivery problems:

1. Certified illuminated panel area vs outer frame dimensions. Confirm in in² against MUTCD Figure 6L-6.
2. Bracket compatibility with your specific vehicle models. Cab-top, bed-frame, and rear integrated frame kits are not interchangeable. Specify bracket type per vehicle at order time.
3. Controller voltage match. Most light-duty trucks run 12V; some heavy-duty vehicles run 24V. Confirm the controller operates on DC 9–36V or request a step-down converter specification.
4. IP rating. IP65 is the verified minimum for all-weather roadside deployment — confirmed on Optraffic’s VMAB series.
5. Actuator fold type per vehicle role. Manual, 90°, or 180° — matched to deployment frequency and crew size.
6. Nighttime dimming certification. §6L.06 Standard requires ≥ 50% dimming. Request written confirmation.

Optraffic’s truck-mounted arrow boards (VMAB series) comply with MUTCD and AS standards and ship with multiple mounting bracket configurations — cab-top frame kits, bed-frame cross-rail kits, and rear integrated frame kits with optional electric fold actuator. The included 4G remote controller supports display mode switching and brightness control from the cab. The IP65-rated enclosure handles rain, dust, and road spray across deployment environments. All configurations operate on DC 9–36V.

For troubleshooting after deployment, see Why Your Truck-Mounted Arrow Board Won’t Turn On – Common Issues & Fixes. For actuator and fold system detail, see A Comprehensive Guide to Electric Actuators in Truck-Mounted Arrow Boards.

These products sit at the core of the traffic safety equipment supply chain for hire companies and contractors across the US, UK, and Australia.

Fleet Management After Purchase

A truck-mounted arrow board fleet without a tracking system creates predictable operational gaps: boards go out on jobs and their deployment status, location, and condition become invisible to the fleet manager.

Optraffic’s VMAB series includes a 4G remote controller that allows cab-based display mode switching without a second crew member on the road. For fleet-level maintenance scheduling, the key routine checks are: lamp health inspection every 250 operating hours, bracket torque check after the first 500 km of highway-speed deployment, and controller connection inspection before each winter season.

For a complete guide to keeping truck-mounted boards operational across a multi-unit fleet, see Truck-Mounted Arrow Board for Roadwork Fleets.

Conclusion

A truck-mounted arrow board procurement decision has five linked variables: MUTCD type, vehicle class, fold system, mounting bracket, and compliance documentation. Each variable depends on the one before it — the road class determines the MUTCD type, the vehicle determines the mounting method, and the deployment frequency determines the fold system.

Rental companies standardizing a mixed fleet should anchor on Type B (15-lamp) as the base unit covering the majority of call-outs, and add Type C (25-lamp) capacity for freeway and DOT contract work. Contractors with dedicated TMA vehicles should specify Type C with 180° electric fold actuator and confirm bracket integration at order time, not after delivery.

For full VMAB series specifications including panel dimensions, lamp configurations, mounting bracket options, and compliance documentation, visit the Optraffic truck-mounted arrow board product page.
