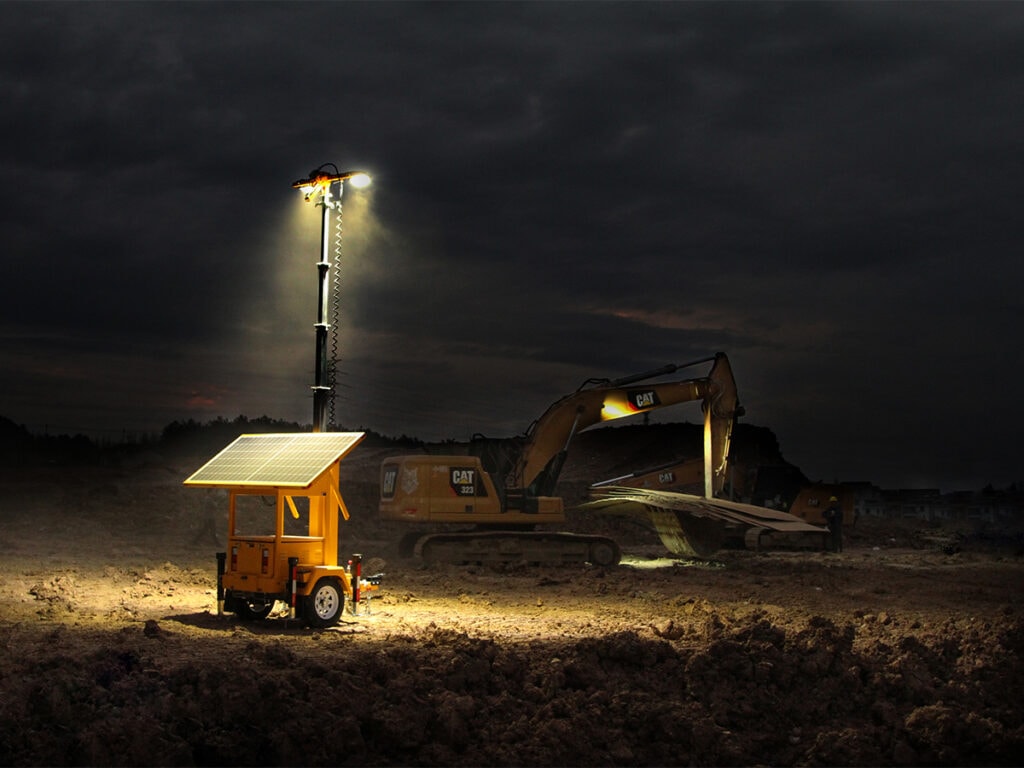

Mobile Lighting Towers: Top Uses for Construction Sites

Construction sites don’t stop when the sun goes down. Night shifts, extended project timelines, remote locations without grid access, and emergency callouts all create a consistent operational need: reliable, portable illumination that can be deployed quickly and moved as site conditions change.

Mobile lighting towers are the standard solution for these situations. Unlike fixed site lighting, they mount on a wheeled trailer or self-contained chassis, deploy without permanent electrical infrastructure, and can reposition as work zones shift across a site. This guide covers the primary construction applications, power configuration options, compliance requirements, and selection criteria that procurement teams and site managers typically evaluate.

What Is a Mobile Light Tower?

A mobile light tower — also referred to as a construction light tower or portable light plant — is a trailer-mounted or self-propelled unit that combines a lighting array, an extendable mast, and an integrated power source. The mast raises the lighting heads to heights typically ranging from 6 to 9 metres, providing wide-angle illumination across large work areas without creating the shadow interference common to low-level lighting.

Core Components

Component	Function
LED lighting heads	Primary light output; modern units use high-lumen LED arrays replacing older metal halide lamps
Telescopic or hydraulic mast	Raises lights to operating height (typically 6–9 m); pneumatic, hydraulic, or manual operation
Power source	Solar panels, diesel generator, hybrid system, or battery pack depending on configuration
Trailer chassis	Enables towing and repositioning; single-axle or tandem depending on unit size
Control panel	Manages power switching, mast operation, and (on advanced units) remote monitoring
Stabiliser jacks	Level the unit on uneven ground before mast extension

The key distinction between a mobile light tower and a fixed site light plant is the integrated power source and the trailer chassis. Fixed installations draw from the electrical grid; mobile towers carry their own power and can operate indefinitely without an external supply.

Primary Applications of Mobile Light Towers on Construction Sites

The five scenarios below cover the situations where construction sites most consistently require portable light towers. For a broader overview of the site conditions and project types that drive this need, see when a construction site needs portable light towers.

1. Night Shift Operations and Extended Working Hours

The most direct application: extending productive working hours beyond daylight. Road construction projects in urban areas often restrict daytime lane closures to off-peak windows, requiring night-shift crews to complete surfacing, line marking, and barrier installation in compressed timeframes. Highway upgrades and bridge construction similarly run 24-hour schedules during critical project phases.

What this requires from the tower:

• Consistent, flicker-free output throughout the shift (solar-only units may not sustain this without adequate battery capacity)
• Coverage wide enough to illuminate the active work zone without repositioning mid-shift
• Compliance with OSHA 29 CFR 1926.56 illumination thresholds for the specific tasks being performed (see compliance section below)

Infrastructure contractors regularly submit Super Solar Light Tower and Hybrid Light Tower specifications to Optraffic for night-shift highway and civil works projects, with runtime and LED wattage as the primary evaluation criteria.

2. Remote and Off-Grid Worksites

Pipeline construction, substation installation, transmission line erection, mining access roads, and rural bridge projects share a common constraint: no grid connection within practical cable-run distance. Diesel generators have historically dominated this segment, but solar and hybrid configurations have become viable for projects where fuel logistics add significant cost or operational complexity.

Typical buyer requirements in this segment:

• Multi-night runtime without refuelling or recharging intervention
• Ability to operate in high-ambient-temperature environments (critical for Middle East and Australian outback deployments)
• Compact transport dimensions for sites accessible only by narrow haul roads

Civil and erection contractors working on substations and overhead transmission line projects — including several that have submitted specifications to Optraffic from the Middle East — typically request 20–30 units for simultaneous deployment across dispersed site sections.

3. Emergency Response and Rapid Deployment

When ground conditions, weather, or power outages require immediate response, mobile light towers provide illumination within minutes of arrival. Emergency deployment scenarios on construction sites include:

• Structural incidents requiring rescue operations in low-light conditions
• Power outage response where temporary grid supply has failed and site evacuation or emergency repair is required
• Flood and weather event response during disaster-affected infrastructure repair

The critical requirement here is fast mast extension — units that require lengthy setup sequences are a liability in genuine emergency contexts. Pneumatic and hydraulic mast systems extend faster than manual hand-crank alternatives.

US federal procurement channels have specified mobile generator light towers for large-scale operational deployments requiring continuous 24-hour illumination coverage, with multiple units running simultaneously across extended areas.

For a detailed look at how solar light towers perform specifically in emergency and unplanned deployment scenarios, see solar light towers in emergency situations.

4. Site Security and Perimeter Lighting

Dark perimeters create access opportunities for theft and vandalism — two persistent cost contributors on construction projects, particularly those with high-value copper cabling, plant equipment, or stored materials on site overnight.

Mobile light towers placed at site entrances, storage compound perimeters, and equipment laydown areas serve a deterrence function distinct from task lighting: the goal is broad, visible illumination rather than precise work zone coverage. Units with integrated CCTV mounts — such as Optraffic’s Mini Solar Light Tower with optional camera — combine illumination and surveillance in a single deployable unit.

Placement considerations for security applications:

• Position to eliminate shadow pockets at fence lines and gate entries
• Aim lighting outward from the perimeter (illuminating approaches rather than the interior)
• Consider units with automatic dusk-to-dawn switching to avoid manual operation overnight

5. Mining, Energy, and Industrial Applications

Beyond road construction, mobile light towers see consistent use in:

• Open-cut mining — blast area illumination, ore processing zones, haul road intersections
• Oil and gas — wellhead and pipeline inspection lighting in remote fields
• Port and logistics — container yard illumination, vessel loading operations at night
• Aerodrome ground operations — apron lighting for maintenance work outside standard service periods

Equipment hire companies supplying these sectors typically procure solar light tower fleets in bulk, evaluating specifications across multiple models simultaneously. Optraffic has received fleet procurement inquiries from hire companies in New Zealand and Australia covering the full solar range — Mini, Medi, and Super — where unit compatibility and commonality of spare parts across the fleet are primary decision criteria.

OSHA Illumination Requirements for Construction Sites

OSHA 29 CFR 1926.56 sets minimum illumination standards for construction work areas. These are mandatory minimums — not design targets. Light tower selection must be capable of meeting these thresholds at the actual working surface, not at the lamp output level.

Minimum Illumination Standards by Task Area

Work Area Type	Minimum Illumination (foot-candles)
General construction areas	5 fc
Excavation and waste areas, access roads, loading platforms	3 fc
Indoors: warehouses, corridors, hallways	5 fc
Tunnels, shafts, general underground work	5 fc
General construction plant and shops	10 fc
First aid stations, infirmaries, offices	30 fc

Source: OSHA 29 CFR 1926.56 — Illumination

Practical note: The foot-candle values above apply at the working surface. A tower positioned at 9 metres with a 4 × 100W LED array will deliver different surface illuminance depending on mast angle, reflector design, and distance from the work zone. For large-area coverage calculations, see how much area a lighting tower covers and use the lumen output specifications from the product datasheet rather than estimating from wattage alone.

UK and Australian Compliance References

For projects in other primary markets:

• UK: BS EN 12464-2:2014 (Light and lighting — Lighting of work places — Part 2: Outdoor work places) governs outdoor construction illumination. The standard specifies maintained illuminance (Em) and uniformity ratios (U0) by task type. Relevant guidance is also provided in the HSE Construction (Design and Management) Regulations 2015.
• Australia: AS/NZS 1680.2.5 covers outdoor working area lighting. State-based safe work authority guidance (Safe Work Australia) supplements the standard with construction-specific requirements.

For UK-specific portable lighting tower compliance and precautions, see portable lighting tower safety and key precautions for outdoor use in the UK.

Mobile Light Tower Power Options: Solar, Hybrid, and Diesel-Generator

Power source selection is the most consequential specification decision for most buyers. The right configuration depends on shift duration, site noise restrictions, fuel access, environmental requirements, and budget over the rental or ownership period.

Comparison Overview

	Solar	Hybrid	Diesel-Generator
Grid dependency	None	None	None
Fuel cost	Zero (solar)	Low (generator supplements solar)	Ongoing diesel cost
Runtime	Dependent on battery capacity and solar input	Extended via generator top-up	Limited by tank capacity
Emissions	Zero	Low	Standard diesel emissions
Noise level	Silent	Low (generator runs intermittently)	Continuous generator noise
Best for	Multi-night deployments with daylight recharge windows	Sites with inconsistent solar input or multi-day overcast	High-output demand, short deployments, locations where battery weight is a constraint
Optraffic range	Mini / Medi / Super Solar Light Tower	Hybrid Light Tower	Generator-equipped configurations

Solar Light Towers

Solar configurations use photovoltaic panels to charge battery banks during daylight hours, with LED arrays drawing from battery storage during night operation. The sizing relationship between panel wattage, battery capacity, and LED draw determines autonomous runtime.

Optraffic’s solar range covers three capacity tiers:

• Mini Solar Light Tower — compact footprint, suited to smaller work zones and hire fleet standardisation
• Medi Solar Light Tower — mid-range capacity for multi-shift construction deployments
• Super Solar Light Tower — largest solar configuration, used in high-demand or multi-night applications

Solar units are the preferred specification where site noise restrictions apply (residential adjacent projects, hospital access roads, airport perimeter work) and where fuel logistics to remote sites create operational overhead. For practical guidance on getting maximum output from solar units across a construction project lifecycle, see how to maximise efficiency with portable solar light towers for construction projects.

For a detailed comparison of solar against diesel and grid-connected options, see solar hybrid light tower vs diesel.

Hybrid Light Towers

Hybrid configurations combine solar panels and battery storage with an integrated diesel generator. The generator activates automatically when battery state-of-charge drops below a set threshold, ensuring continuous output regardless of solar conditions. This makes hybrid units appropriate for:

• Projects running through extended overcast periods
• Multi-week deployments where full solar autonomy cannot be guaranteed
• Sites with high ambient light demand that solar alone cannot sustain

Civil engineering contractors and equipment hire companies — including an Australian firm that submitted a 10-unit Hybrid Light Tower inquiry to Optraffic — favour hybrid configurations for large site packages where uninterrupted operation is non-negotiable.

Diesel-Generator Light Towers

Diesel-generator configurations deliver maximum output flexibility, with runtime limited only by tank refill frequency. They remain the dominant choice for applications where:

• High LED wattage demand exceeds solar-battery capability
• Short deployment windows make battery sizing impractical
• Fuel supply logistics are already established on site for other plant

A US LED lighting solutions company specified 8 × 640W solar towers on trailer for immediate procurement — a specification that illustrates how buyers in this segment focus on wattage output and trailer mobility as primary criteria when evaluating generator-class units.

How to Select the Right Mobile Light Tower

Matching the tower to the site requires evaluating five variables in sequence:

1. Required coverage area Calculate the work zone dimensions. A single tower at 9 m mast height with a 4-head LED array typically covers 2,000–4,000 m² depending on reflector design and mounting angle. Larger zones require either multiple units or repositioning during the shift. Use the lighting tower coverage area guide to verify coverage against your site plan.

2. Required illuminance level Reference OSHA 29 CFR 1926.56 (US), BS EN 12464-2 (UK), or AS/NZS 1680.2.5 (AU) for the minimum foot-candle or lux value required at your working surface. Verify that the tower’s lumen output — at the actual deployment height and angle — delivers that threshold. Manufacturer datasheets should provide illuminance values at specified distances; if they don’t, request them.

3. Shift duration and power configuration

• Single overnight shift with daytime recharge window → solar viable
• Multi-day overcast forecast or extended multi-shift deployment → hybrid
• High-output continuous demand → diesel-generator

4. Site access and mobility

• Narrow access roads, soft ground, or tight staging areas may restrict trailer width and axle loading
• Check towing vehicle compatibility against the tower’s gross trailer mass (GTM)
• For sites where towers will reposition frequently, evaluate mast extension/retraction time and ease of jack operation

For common errors in levelling jack setup that affect safe mast operation, see avoiding common mistakes in the setup of levelling jacks on mobile light towers.

5. Glare management In active work zones, poorly aimed towers create glare that increases fatigue and reduces reaction time for workers and passing traffic. Reflector angle, mast height, and positioning relative to the work zone all affect glare levels. For a practical guide to glare control on LED-equipped towers, see how teams can reduce glare from a LED light tower.

Frequently Asked Questions

---

For product specifications on Optraffic’s mobile light tower range — including the Mini, Medi, and Super Solar Light Towers and the Hybrid Light Tower — contact Optraffic directly via the product enquiry form.
