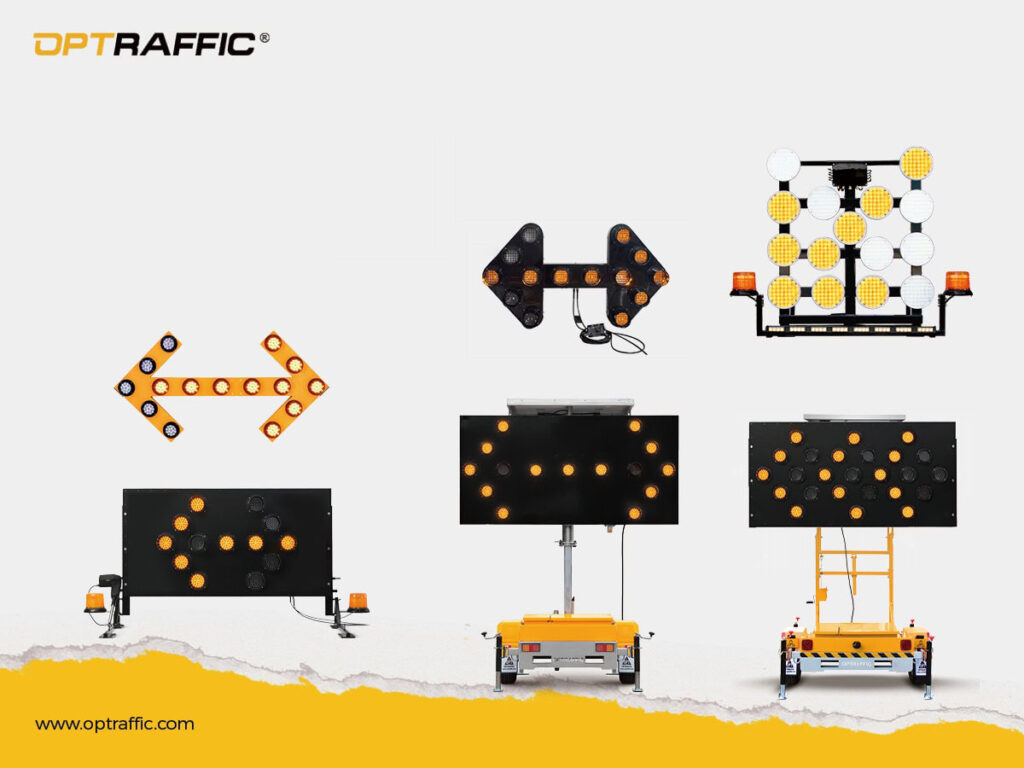

LED Arrow Board Design Guide: Key Factors to Consider Before You Build

July 2, 2025

Understanding the key factors before building an LED arrow board leads to safer and more effective roadwork zones. Regions using advanced LED arrow board systems have seen a notable drop in work zone accidents, as shown by National Highway Traffic Safety Administration data. Designers must pay attention to compliance, visibility, power, durability, mounting, human factors, and maintenance. Regulatory approval and alignment with specific use cases help maximize safety and performance.

Environmental Durability and Reliability

Designers must consider environmental durability and reliability to ensure OPTRAFFIC arrow boards perform safely and consistently in demanding conditions. These factors directly affect operational costs, maintenance frequency, and overall safety in work zones.

Weather-resistant housing design

Weather-resistant housing protects the internal components from rain, snow, and fog. Traffic safety specialists recommend using durable materials that withstand harsh weather. Regular operational checks help prevent malfunctions. Strategic placement of the arrow board can reduce the impact of wind and precipitation, keeping signals visible to drivers. This approach maintains reliability and reduces the risk of accidents during adverse weather.

Shock and vibration resistance

Arrow boards often face rough handling during transport and operation. Secure and compatible couplers prevent movement and detachment, even during sudden stops or on uneven terrain. Vibration testing under recognized safety standards, such as USCAR and LV214, simulates real-world conditions. Fixed couplers with rigid designs minimize movement, which helps maintain visibility and reduces maintenance needs. Secure locking mechanisms further reduce vibrations and prevent accidental detachment, supporting long-term reliability and safety.

Tip: Consistent signal visibility depends on stable mounting and shock-resistant construction.

Battery and electronics protection

Proper protection of batteries and electronics ensures reliable operation and extends the lifespan of the arrow board. The following table summarizes key tests and their purposes:

Test Type	Description	Purpose / Outcome
Waterproof & Dustproof Test	Water spray and dust ingress tests to achieve IP65/IP67 ratings	Confirms ingress protection, ensuring electronics and battery are protected from water and dust
Vibration & Impact Test	Simulated transport vibrations and impacts using physical tests and computer modeling	Ensures no internal breakage or LED disconnections during transport
Current & Voltage Test	Measurement of operating voltage and current per LED, maintaining ±3% accuracy	Verifies stable electrical performance and detects faulty drivers or shorts
Thermal Management	Use of advanced materials (e.g., diamond boards) to reduce thermal stress	Prevents overheating and early LED burnout, extending lifespan
LED Lifespan Simulation	Continuous operation for 72–100 hours to detect early burnouts and thermal drift	Validates durability and long-term reliability of LEDs
Visual Inspection	Checks LED alignment, enclosure integrity, lens clarity, and indicator visibility	Detects physical damage, soldering issues, or corrosion that could compromise safety
Compliance Certifications	CE, RoHS, FCC, ISO 9001, UKCA marking compliance	Confirms adherence to product regulations and quality management standards

LED lamps with extended lifespans reduce replacement frequency, lowering maintenance needs and operational costs.
Robust trailer construction minimizes wear and tear, enhancing durability.
Use of solar power supports sustainable operation and decreases environmental impact.
Real-world case studies show improved traffic safety, with fewer accidents and near-misses in work zones.

These combined features confirm that environmental durability and reliability are essential for effective and safe OPTRAFFIC LED traffic arrow board and LED arrow sign board deployment.

Energy Efficiency and Power Source Design

Use of renewable energy

OPTRAFFIC engineers focus on renewable energy to power arrow boards efficiently and sustainably. Solar energy stands out as the preferred choice for many modern traffic control devices. Solar-powered systems offer several advantages:

Solar energy leads to long-term cost savings.
Solar-powered arrow boards require minimal maintenance.
Absence of fuel consumption reduces environmental impact.
Solar energy aligns with eco-friendly traffic management practices.
LED arrow boards consume less power than traditional lighting.
Energy-efficient design extends operational life and lowers operational costs.
LED technology supports prolonged use with less frequent maintenance.
Solar-powered LED arrow boards contribute to sustainable traffic management.

A comparison of key features highlights the benefits of solar technology:

Feature	Data / Description
LED Power Consumption	OPTRAFFIC’s LED lamps consume up to 85% less power than traditional arrow board LEDs
Overall Power Consumption	Solar arrow boards consume up to 80% less power than older models
Battery Size and Quantity	Fewer and smaller batteries required
Lead Content Reduction	80% less lead content in batteries
Battery Maintenance	Fully sealed, maintenance-free batteries
Charging Time	Faster charging reduces downtime

Battery selection and storage capacity

Selecting the right battery ensures reliable operation for OPTRAFFIC arrow boards. Sealed AGM batteries are popular because they do not leak or spill. These batteries also require less maintenance and last longer. Four 18AH, 12V sealed AGM batteries can provide steady power for extended periods. Battery power management remains critical. Weak batteries can cause arrow boards to fail, which may lead to safety risks and operational delays. Solar and hybrid power systems are recommended for long projects. Solar boards recharge during the day, reducing downtime and maintenance effort. Hybrid boards combine solar and battery power, offering reliability even in less sunny conditions.

Tip: Regularly test power systems and maintain battery charge levels to ensure continuous operation.

Charge controller integration

Charge controllers play a vital role in protecting batteries and maximizing efficiency. OPTRAFFIC integrates advanced charge controllers with solid-state voltage regulators and charge indicators. These components prevent overcharging and deep discharging, which extends battery life. Energy-saving controls, such as touch-sensitive keys and efficient LED displays, further reduce energy consumption. Cleaning solar panels and having backup power sources, like extra batteries, help maintain a steady power supply and extend operational longevity. Proper charge controller integration ensures that OPTRAFFIC LED arrow sign boards and LED traffic arrow boards remain operational in all conditions.

Display Panel Design

LED technology and layout

Modern LED arrow boards rely on advanced LED technology to deliver clear, bright signals in all lighting conditions. OPTRAFFIC engineers select high-intensity LEDs that maintain consistent brightness and color over time. The arrangement of LEDs on the display panel follows strict geometric patterns. This ensures that arrows and symbols appear uniform and easily recognizable from a distance. Designers often use modular layouts, which allow for quick replacement of faulty LEDs and simplify maintenance. The use of energy-efficient LEDs reduces power consumption and extends battery life, supporting sustainable operation. OPTRAFFIC integrates robust circuit boards and protective coatings to shield the electronics from moisture and dust, further enhancing reliability.

Tip: Modular LED layouts make repairs faster and minimize downtime in the field.

Contrast and visibility optimization

Contrast and visibility play a critical role in the effectiveness of any LED arrow board. OPTRAFFIC applies advanced brightness and power management techniques, such as global dimming and color modulation, to balance power efficiency with image quality. Studies have shown that optimized brightness control and color remapping can significantly improve contrast and visibility, especially in challenging environments. For example, research in digital display systems demonstrates that higher contrast and color balance enhance depth perception and image resolution. These improvements help drivers quickly interpret signals, even in bright sunlight or low-light conditions.

Maintaining a stable luminance range ensures that the display remains visible in various lighting conditions. If ambient light increases without a corresponding boost in display luminance, contrast and visibility decrease. OPTRAFFIC addresses this by integrating sensors that adjust brightness automatically, preserving image clarity and reducing eye strain for drivers. High-contrast colors, such as yellow and red, stand out against most backgrounds and further improve visibility. Proper contrast optimization not only enhances safety but also reduces the risk of misinterpretation.

Viewing angle and legibility distance

The effectiveness of an LED arrow board depends on its visibility from different angles and distances. OPTRAFFIC engineers design panels with wide viewing angles, ensuring that signals remain clear even when drivers approach from the side. The size of the display panel directly affects how far away it can be read. Larger panels provide longer legibility distances, giving drivers more time to react.

Panel Type	Approximate Size (inches)	Recommended Legibility Distance	Minimum Number of Elements
A	Medium (48 x 24)	About 0.5 miles	12
B	Medium-Large (60 x 30)	About 0.75 miles	13
C	Large (96 x 48)	About 1 mile	15
D	Not Specified	About 0.5 miles	12

Signals must be visible from a sufficient distance to allow timely user reactions. Larger panel sizes with appropriate spacing reduce visual overlap and confusion. High-contrast colors improve visibility against various backgrounds. Proper placement avoids confusion near intersections where multiple signals compete for attention. Placement aligned with speed zones ensures drivers have adequate time to respond, especially at higher speeds.

A recent study found that 15.9% of respondents misinterpreted lane usage due to unclear arrow signage placement near intersections. Improper placement caused drivers to remain in incorrect lanes, increasing confusion and potential safety risks. Experimental results also showed that participants had higher confidence when arrows pointed toward the center of the route. After a distance of 2 meters from the center, comprehension rates for arrows pointing left, right, and up were comparable, while down-pointing arrows were less clearly understood. The lateral position and angle of arrow signage significantly influence user compliance and clarity.

OPTRAFFIC recommends using LED arrow sign board and LED traffic arrow board models that meet or exceed industry standards for viewing angle and legibility. These features ensure that signals remain clear and unambiguous, even in complex traffic environments.

Control System and User Interface

A well-designed control system and user interface form the backbone of any effective OPTRAFFIC LED arrow board. These systems allow operators to manage traffic signals quickly and accurately, even in challenging environments. The right interface improves safety, reduces errors, and streamlines daily operations.

Onboard and remote control options

Operators need flexible control options to adapt to different worksite conditions. Onboard controls usually feature simple, tactile buttons or touchscreens mounted directly on the LED arrow board. These controls allow quick access for setup and adjustments on-site. Remote control options add another layer of convenience and safety. Wireless remotes or mobile apps let users operate the board from a distance, which keeps them out of active traffic lanes and reduces exposure to hazards.

Tip: Remote controls can help operators adjust the OPTRAFFIC LED arrow sign board without leaving their vehicles, especially during poor weather or heavy traffic.

A table below highlights the main differences between onboard and remote control options:

Feature	Onboard Control	Remote Control
Accessibility	Direct, on-site	Operate from a safe distance
Setup Speed	Fast for simple changes	Fast for frequent adjustments
Safety	Requires proximity	Reduces operator risk
Usability	Simple interface	May require pairing/setup

Both control types support efficient operation of OPTRAFFIC LED traffic arrow boards in a variety of scenarios.

Preset display modes and programmability

Preset display modes and programmability give operators the power to respond to changing traffic conditions instantly. With programmable settings, users can select from a range of arrow patterns, directional signals, and flashing sequences. This flexibility allows the OPTRAFFIC LED arrow board to communicate clear instructions to drivers, no matter the situation.

Programmable modes also let operators adjust brightness and flashing speed. These adjustments ensure that signals remain visible in bright sunlight or at night. Studies show that customizable arrow patterns and dynamic display modes improve communication clarity and reduce driver confusion. Operators can quickly switch between patterns to match real-time needs, which increases both safety and efficiency.

Preset modes save time during emergencies.
Programmability supports tailored traffic management.
Quick adjustments help maintain optimal visibility.

Operators who use programmable OPTRAFFIC LED arrow sign boards report fewer errors and smoother traffic flow during lane closures and detours.

Real-time status feedback

Real-time status feedback transforms the user experience for OPTRAFFIC LED traffic arrow boards. Status indicators, such as LED lights or digital readouts, show the current operating mode, battery level, and any system faults. This immediate feedback helps operators detect issues before they become critical.

A recent case study on multimodal feedback systems found that real-time visual and acoustic cues reduced user stress and improved workflow awareness. When operators see instant confirmation of their commands, they feel more confident and make fewer mistakes. Clear feedback also benefits users with different experience levels, making the system more accessible.

Status lights confirm correct pattern selection.
Alerts warn of low battery or system errors.
Feedback reduces downtime and maintenance costs.

Note: Real-time feedback on OPTRAFFIC LED arrow boards ensures that operators can monitor system health and performance at a glance.

A reliable control system and user interface make OPTRAFFIC LED arrow boards, LED arrow sign boards, and LED traffic arrow boards safer and easier to use. These features support efficient traffic management and help protect both workers and drivers.

Compliance with MUTCD and FHWA Standards

Meeting the Manual on Uniform Traffic Control Devices (MUTCD) and Federal Highway Administration (FHWA) standards ensures that every OPTRAFFIC LED arrow board provides clear, safe guidance for drivers. These standards cover size, display patterns, flashing sequences, and documentation, all of which contribute to effective traffic management.

Size and character height regulations

MUTCD and FHWA guidelines specify strict requirements for the size and character height of LED arrow boards. OPTRAFFIC engineers design each display to meet or exceed these standards. For example, character heights must scale with viewing distance, and changeable message signs require characters about 35% larger than those on print signs for equal legibility. The Access Board’s Final Report outlines that stroke thickness should be between 10% and 30% of the character height, and characters must be uppercase and conventional in form. Spacing between characters should be 1.5 to 2 times the stroke width, which maximizes legibility. These specifications ensure that OPTRAFFIC LED arrow sign boards remain visible and readable from the required distances, supporting safe navigation in work zones.

Display pattern requirements

Display patterns on OPTRAFFIC LED arrow boards must follow MUTCD-approved sequences. These patterns include left, right, and merge arrows, as well as caution bars. Studies show that proper display patterns help drivers merge earlier and reduce confusion. The table below summarizes recommended lamp intensities for different driving situations, which help maintain visibility and minimize glare:

Situation	Minimum On-Axis Intensity (cd)	Minimum Off-Axis Intensity (cd)	Maximum Hot Spot Intensity (cd)
Low-Speed Day	300	60	N/A
High-Speed Day	500	100	N/A
Low-Speed Night	90	18	370
High-Speed Night	150	30	370

Proper display patterns and lamp intensities improve driver comprehension and promote early lane changes, which increases safety in work zones.

Flashing sequence and visibility distance guidelines

Flashing sequences must follow MUTCD timing and pattern rules. OPTRAFFIC LED traffic arrow boards use regulated flash rates and brightness levels to ensure signals are visible both day and night. The Access Board recommends a minimum 70% visual contrast and an eggshell finish for optimal visibility. Legibility distances often exceed 1,000 feet, giving drivers enough time to react. The chart below illustrates how on-axis and off-axis intensities vary by driving situation:

Certifications and documentation

OPTRAFFIC provides full documentation and certifications for every LED arrow board, LED arrow sign board, and LED traffic arrow board. These include CE, RoHS, FCC, and ISO 9001, confirming compliance with international and national standards. Proper records help agencies verify that each product meets MUTCD and FHWA requirements. Keeping up-to-date documentation ensures that OPTRAFFIC products remain eligible for use in regulated traffic environments.

Safety and Operational Considerations

Trailer or stand design for mobile units

Mobile units require sturdy trailers or stands to ensure stability and safety during transport and deployment. OPTRAFFIC engineers design trailers with reinforced frames and balanced weight distribution. This approach prevents tipping and shifting, even on uneven surfaces. Adjustable stands allow for quick setup and secure positioning. Operators can use leveling jacks to stabilize the unit, which keeps the display visible and reduces the risk of accidents. Reflective markings and bright paint increase visibility for drivers, especially at night or in low-light conditions.

Tip: Regularly inspect trailer tires and hitch connections to prevent breakdowns during transport.

Locking mechanisms and anti-theft features

Security remains a top priority for OPTRAFFIC mobile traffic equipment. Wheel locks use heavy-duty steel clamps and tamper-resistant locks to immobilize trailers. Their bright colors act as a visual warning, discouraging theft attempts. Lockable tongues feature advanced locking pins, anti-drill plates, and reinforced housings. These components resist cutting and tampering, making unauthorized towing difficult. Construction companies have reported fewer thefts and less vandalism after installing these locks. Manufacturers test these mechanisms for durability and strength, ensuring they withstand repeated use and force. Weather-resistant coatings protect against rust and corrosion, which extends the life of the locks. Some units include GPS tracking and alarm systems for real-time monitoring and alerts. Proper installation and regular maintenance keep these security features effective.

Maintenance access and serviceability

Easy maintenance access helps operators keep OPTRAFFIC arrow boards in top condition. Engineers design enclosures with hinged doors and quick-release fasteners. These features allow technicians to reach batteries, wiring, and control panels without special tools. Clear labeling of components reduces confusion during repairs. Modular parts simplify replacement and minimize downtime. Operators should follow a regular inspection schedule to check for loose connections, worn parts, or dirt buildup. Keeping the unit clean and well-maintained ensures reliable operation and extends service life.

Note: Good serviceability reduces repair costs and keeps traffic moving safely.

Cost vs. Performance Trade-Offs

Balancing initial cost with long-term efficiency

Project managers often face a choice between lower upfront costs and better long-term value. Some may select less expensive equipment to save money at the start. However, this decision can lead to higher maintenance expenses and more frequent replacements. OPTRAFFIC engineers recommend evaluating the total cost of ownership. Energy-efficient systems, such as those using advanced SMD LEDs, consume less power and last longer. Over time, these features reduce both energy bills and the need for repairs. Investing in quality at the beginning often results in fewer disruptions and lower costs throughout the product’s life.

Component quality and life-cycle planning

The quality of each component directly affects the reliability and lifespan of OPTRAFFIC arrow boards. Studies comparing SMD LEDs and traditional LEDs show clear differences:

Metric	SMD LED	Traditional LED
Lifespan	Over 50,000 hours (longer life)	Less than 50,000 hours
Maintenance Costs	Lower due to durability	Higher due to frequent failures
Energy Consumption	Lower, more energy efficient	Higher energy use

SMD LEDs provide longer service life and lower maintenance costs. Poor-quality parts or manufacturing defects can cause early failures, especially in vehicle-mounted units. OPTRAFFIC recommends using high-quality replacement modules and securing them against vibration. Regular professional maintenance and diagnostics help extend operational life and improve safety. These practices ensure that OPTRAFFIC LED arrow sign board and LED traffic arrow board systems perform reliably in demanding environments.

Choosing the right features for your use case (urban, highway, construction zones)

Selecting features that match the intended use improves both performance and cost-effectiveness. Urban projects may benefit from compact displays and remote control options. Highway applications often require larger panels with higher brightness and longer legibility distances. Construction zones need rugged designs and easy-to-use interfaces. OPTRAFFIC offers a range of models to suit different scenarios. Project planners should consider the environment, expected usage, and local regulations before making a purchase. This approach helps avoid overspending on unnecessary features or underinvesting in critical capabilities.

Tip: Matching the right OPTRAFFIC model to your project reduces waste and maximizes safety.

Building an effective LED arrow board requires careful attention to compliance, visibility, power, and durability. Recent studies show that improved compliance and visibility reduce curve crashes by over 25% and increase driver reaction times. Eco-friendly power sources and weather-resistant materials extend equipment lifespan and lower costs. OPTRAFFIC recommends that project teams review MUTCD guidelines, create a detailed checklist, and consult experts before starting any LED arrow board project. These steps help ensure safe, reliable, and efficient traffic management.

FAQ

What is the main purpose of an OPTRAFFIC LED arrow board?

An OPTRAFFIC LED arrow board directs traffic safely around work zones or hazards. The board uses bright LEDs to show clear arrows or patterns. Drivers can see the signals from a distance, which helps prevent confusion and accidents.

How does an LED arrow board differ from a traditional sign?

An LED arrow board uses illuminated arrows and patterns, while a traditional sign relies on static graphics. The LED arrow board provides dynamic, highly visible signals. Operators can change the display as needed for different traffic situations.

What maintenance does an OPTRAFFIC LED arrow board require?

Operators should check the battery, clean the solar panel, and inspect the LED arrow board for damage. Regular testing ensures the LED arrow sign board and LED traffic arrow board work correctly. Quick repairs help maintain safety and reliability.

Can an LED arrow board operate in extreme weather?

Yes. OPTRAFFIC engineers design each LED arrow board with weather-resistant housing and durable electronics. The LED arrow sign board and LED traffic arrow board continue to function in rain, snow, or high heat, ensuring reliable performance year-round.

How do operators control an OPTRAFFIC LED arrow board?

Operators use onboard controls or remote devices to select patterns and adjust brightness. The OPTRAFFIC LED arrow board offers preset display modes for quick changes. Real-time feedback helps operators monitor the LED arrow sign board and LED traffic arrow board status easily.
