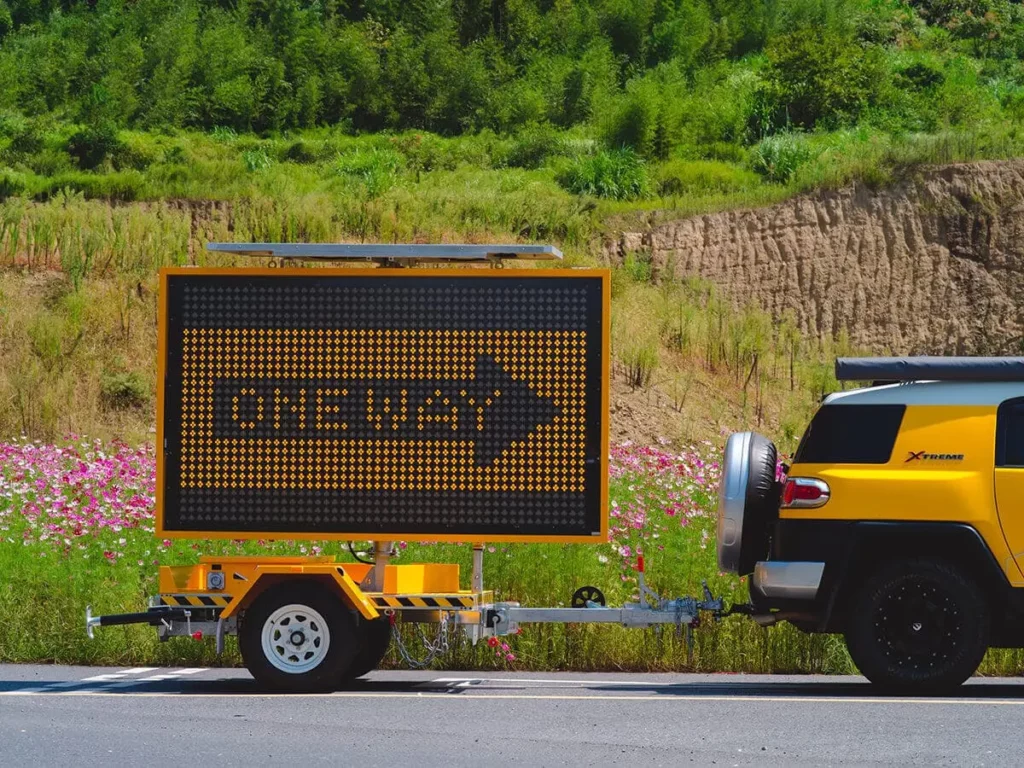

How to Position a Work Zone Trailer on a Highway Shoulder Without Encroaching on the Lane

Walk any highway work zone on a curve and you will see the same thing. A variable message sign sits angled across the shoulder, its tow bar reaching out past the white line. Nobody parked it that way by choice. Knowing how to position a work zone trailer on a highway shoulder means understanding why crews are forced into that angle, and what removes the need for it. This guide names the hazard, traces its cause, and sets out the placement decisions that keep a trailer square to the road.

The Hazard Nobody Names: Tow-Bar Encroachment on the Shoulder

Our Team has walked hundreds of work zone setups with North American contractors and hire companies. One pattern appears everywhere and almost never gets written down.

Here is the chain of events.

A crew needs a sign to face approaching traffic. On a curve, ramp or crest, approaching traffic does not arrive along the line of the shoulder. It arrives at an angle. If the display is fixed to the chassis, the only way to aim the display is to aim the whole trailer.

So the crew swings the trailer. The sign face now points at drivers. But the trailer is no longer parallel to the shoulder. Its tow bar, the longest and lowest part of the unit, now protrudes toward the travelled way.

On a narrow shoulder, that tow bar crosses the white line. Call it what it is: tow-bar encroachment. It is a steel object at bumper height, sitting inside a live traffic lane, usually unlit and usually unmarked.

Nobody logs it. It does not appear on a traffic control plan. It shows up only after something hits it.

Why Fixed-Facing Trailers Force Diagonal Parking

The MUTCD tells you to aim at traffic, not at the road edge

This is not a crew shortcut. It is a crew following the manual with the wrong equipment.

The MUTCD is explicit on sign orientation. It directs that signs be mounted at right angles to the direction of the traffic they serve. It then adds the critical instruction for curves: on curved alignments, the placement angle should be determined by the direction of approaching traffic, rather than by the roadway edge at the point where the sign sits.

Read that carefully. The manual tells crews to aim by approach direction. A fixed-facing trailer gives them only one way to obey: rotate the chassis.

The standard and the hardware are pulling in opposite directions. The crew resolves that conflict with the tow bar.

Lateral offset rules exist for exactly this reason

The MUTCD’s lateral offset provisions state their own purpose plainly. Minimum offsets exist to keep trucks and cars that use the shoulder from striking signs and their supports.

A trailer parked at an angle inverts that logic. Instead of the support sitting back from the shoulder, part of it moves forward into the path of traffic. The offset the plan assumed no longer exists on the ground.

Rear-end and shoulder impacts are the wrong risk to add to

FHWA’s 2026 National Work Zone Awareness Week material notes that work zone fatalities fell about 6 percent from 2023 to 2024, but that the share of fatal work zone crashes involving speeding and rear-end collisions rose over the same period.

Rear-end and shoulder-drift impacts are precisely the crash types a protruding tow bar converts from a near miss into a strike. Adding an unplanned steel obstruction at the shoulder edge works directly against that trend.

Where Tow-Bar Encroachment Happens Most

The problem concentrates in a predictable set of locations. Knowing how to position a work zone trailer on a highway shoulder starts with recognising them before dispatch.

Location type	Why the display must be angled	Typical shoulder condition	Encroachment risk
Horizontal curve	Approach direction differs sharply from shoulder alignment	Often narrowed on the inside of the curve	High
Freeway on-ramp or off-ramp	Traffic approaches from a diverging path	Narrow, with barrier or guardrail behind	High
Crest vertical curve	Sight line opens late, so aim matters more	Variable	Moderate to high
Urban arterial	Multiple approach angles at intersections	Kerbed, with no recovery space	High
Straight rural highway	Approach aligns with the shoulder	Usually wide	Low
Behind concrete barrier	Aim still matters, but space is fixed	Confined lateral space	Moderate

The straight rural case is the only one where a fixed-facing unit and a rotating unit behave the same. Every other row on that table is a location where the chassis has to move if the screen cannot.

How Screen Rotation Removes the Encroachment

The fix is mechanical rather than procedural. Separate the aiming function from the parking function.

Our Team builds message sign and arrow board trailers with a rotating screen mount running on a central slewing bearing. The crew parks the trailer parallel to the shoulder, aligned as the traffic control plan intended. They then turn the display alone until it faces approaching traffic. A mechanical locking pin holds that angle.

Three things change on the ground:

1. The chassis stays square. Tow bar, fenders and jacks all remain behind the shoulder line.
2. The lateral offset survives contact with reality. The clearance assumed in planning is the clearance the site actually gets.
3. Aim becomes adjustable without repositioning. If the closure shifts or the approach changes, one person turns the screen instead of hitching, moving and re-levelling the unit.

That third point matters more than it first appears. Repositioning a trailer on a live shoulder puts a worker and a vehicle back into the traffic stream. Turning a screen does not.

What to check on a rotating mount

Rotation is only useful if it holds. When evaluating units, our Team recommends checking:

• The bearing type. A central slewing bearing carries load evenly through the full turn.
• The locking method. A positive mechanical pin resists wind load and passing-vehicle turbulence better than friction alone.
• The detent positions. Fixed increments let a crew repeat an angle without judgement calls.
• Single-operator access. If rotation needs two people, crews will skip it and swing the trailer instead.

That last point decides whether the feature gets used. A rotation system that is awkward on a cold night returns the crew to diagonal parking.

Placement Rules for Any Work Zone Trailer on a Shoulder

Rotation removes the worst failure mode. It does not replace placement discipline. Work through these before the crew leaves the truck:

1. Measure the usable shoulder width. Compare against the trailer’s overall length including the tow bar.
2. Park parallel first, aim second. Treat these as two separate actions rather than one.
3. Check the tow bar position from the lane. Walk to the edge line and look back at the unit.
4. Keep jacks and legs inside the footprint. Levelling equipment extends the effective width.
5. Confirm the approach angle from a driver’s seat height. Aim looks different at 1.2 metres than it does standing.
6. Re-check after wind events. Turbulence from heavy vehicles can shift an unlocked display.
7. Log the final position. A photographed setup is the record that matters if a claim follows.

Crews already applying placement discipline to message content will find our portable message board placement guide covers the sightline side of this, and our guide on message design for VMS display boards addresses what drivers can actually read at the resulting angle.

Why This Costs Hire Companies More Than Contractors

For a contractor, tow-bar encroachment is a site risk. For an equipment hire company, it is also an asset and liability problem.

Damage falls on the fleet owner. A struck tow bar means a bent drawbar, a damaged coupling and a unit out of service. Off-hire inspections turn contentious.

Liability exposure is uncomfortable. When a unit supplied by a hire company sits partly in a live lane, the question of who specified the placement gets asked in daylight, after the fact.

Utilisation suffers quietly. Crews who cannot aim a unit properly on curved sites stop requesting it for those sites. A fleet with fixed-facing units gets returned more often from exactly the jobs that pay best.

Rotation changes the conversation at hire desk level. The unit works on the curve, so it goes out on the curve. Operator familiarity matters too, which our guide on operator training for arrow board deployment covers in practical terms.

Fleets moving several trailers to one site should also plan the haul, since combination rules change once two units travel behind one truck. Our guide on towing two traffic control trailers sets out those limits.

FAQ: Positioning Work Zone Trailers on Highway Shoulders

How do I position a work zone trailer on a highway shoulder on a curve?

Park the chassis parallel to the shoulder. Then aim the display alone at approaching traffic. Never rotate the whole trailer to achieve the aim.

Why do work zone trailers get parked diagonally?

Because the display is fixed to the chassis. The MUTCD directs crews to aim signs at approaching traffic, so the only available method is angling the entire unit.

What is tow-bar encroachment?

It is the intrusion of a trailer’s drawbar into a live traffic lane. It happens when a unit is angled across a narrow shoulder to aim a fixed display.

Does the MUTCD say how to angle a sign on a curve?

Yes. It directs that on curved alignments the placement angle follows the direction of approaching traffic, not the roadway edge at the sign location.

Does screen rotation replace proper placement planning?

No. Rotation removes the need to angle the chassis. Crews still need to measure shoulder width, check offsets and confirm sightlines.

What should I check on a rotating screen mount before buying?

Check the bearing type, the locking method, whether angles repeat reliably, and whether one operator can turn it unassisted.

---

Curved sites are where fleets lose units and where crews take the most risk. Our Team can walk through how rotating screen mounts change placement on the specific site types your fleet works, and what to check on units you already own. Contact Optraffic to arrange that review.
