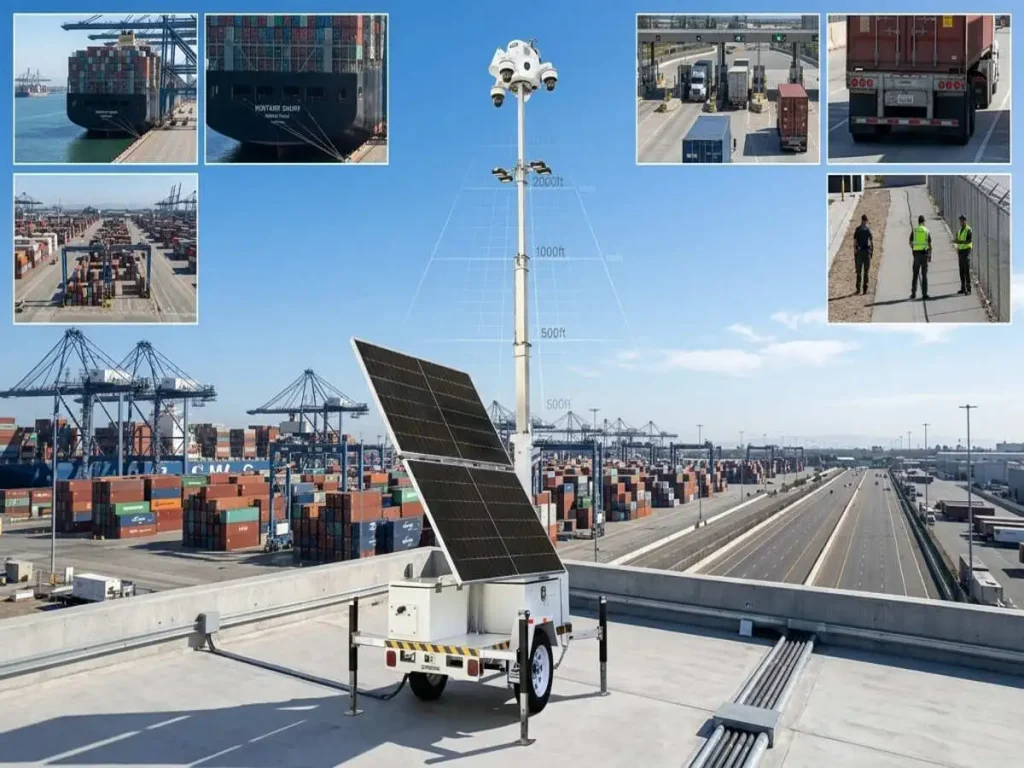

How Far Can a Security Camera Trailer See? Sizing Coverage to DORI in the UK and Australia

A hire fleet gets the same call twice a month. The client says the trailer did not catch the intruder’s face. The footage exists. The trailer worked all night. The camera simply never had enough pixels landing on the target. This guide shows how to answer how far can a security camera trailer see before the unit leaves the yard, using the pixel density method that camera datasheets already publish. The Optraffic team supplies surveillance trailers and camera trailers to hire companies and integrators across both markets, and this question decides more deployments than any spec sheet line.

What Security Camera Trailer Camera Coverage Distance Actually Measures

Most coverage briefs use the wrong unit. A client asks for a camera that “covers 100 metres.” That number describes a field of view, not a usable image.

Security camera trailer camera coverage distance only means something once you attach a task to it. Three tasks sit behind almost every deployment:

1. Knowing that a person entered the compound.
2. Describing what that person wore and carried.
3. Identifying a stranger well enough for a police file.

Each task needs a different amount of image detail on the target. The measure is pixel density: how many camera pixels land across one metre of the scene at the distance that matters.

The Formula That Answers the Question

Pixel density uses one calculation. No software is required.

Pixel density (px/m) = horizontal resolution of the camera ÷ width of the scene in metres at the target distance

A camera with 1,920 horizontal pixels viewing a 10-metre-wide scene delivers 192 px/m at that point. The same camera viewing a 40-metre-wide scene delivers 48 px/m. The sensor never changed. The lens choice and the distance did.

Scene width comes from the lens. A wider angle spreads the same pixels across more ground. This is why a wide-angle camera on a tall mast covers a large yard but cannot support identification anywhere in it.

The Four DORI Distance Levels for Surveillance Cameras

The international video surveillance standard IEC 62676-4 anchors those tasks to fixed pixel density thresholds. The industry calls them DORI: Detect, Observe, Recognise, Identify. Camera manufacturers print DORI distance for surveillance cameras directly on their datasheets, so specifiers can compare units on the same basis.

Level	Pixel density	What an operator can do	Typical trailer use
Detect	25 px/m	Confirm a person or vehicle is present	Wide perimeter awareness, motion verification
Observe	62.5 px/m	Describe clothing, build, carried objects	Compound overview, activity monitoring
Recognise	125 px/m	Match a person already known to the viewer	Gate areas, repeat-offender sites
Identify	250 px/m	Support identification of a stranger	Entry points, plant compounds, evidence capture

The step from Detect to Identify is ten times the pixel density. In practice that collapses the usable range of one camera by roughly the same factor. A head that detects at 80 metres will not identify past 8 metres.

The Caveat Every Specifier Should State

These thresholds assume adequate light, correct focus and a target that is not moving fast. They describe what a human operator can do with the image. Video analytics and thermal imaging work to different models entirely.

A unit that reaches 250 px/m on paper still produces unusable footage in near-darkness with a slow shutter. Several other failure modes do the same thing quietly, which the Optraffic team covers in why surveillance trailer footage is not usable when you need it.

UK and Australian Tenders Now Use Different AS/NZS 62676.4 Pixel Density Wording

Here the two markets split, and integrators working across both should plan for it.

Australia and New Zealand adopt the standard as AS/NZS 62676.4:2020, which takes the 2014 international edition with local modifications. AS/NZS 62676.4 pixel density wording therefore still uses the classic four DORI levels.

The international standard moved on. IEC 62676-4:2025 entered into force in October 2025 and added a parallel seven-step ladder alongside DORI. European and UK adoption of that edition began rolling through national bodies during 2026.

	Current adoption	Ladder in use	What a tender may specify
UK	BS EN 62676-4, with the 2025 edition adopting through 2026	Four DORI levels, moving to seven	Identify, or Characterise at 250 px/m
Australia / NZ	AS/NZS 62676.4:2020	Four DORI levels	Identification at 250 px/m

The numbers overlap. The vocabulary does not. A UK specification written to the new edition may ask for Characterise where an Australian specification asks for Identification, at the same 250 px/m. Fleets quoting across both markets should answer in px/m and name the edition. UK fleets carry separate documentation duties as well, set out in mobile camera tower UK data protection compliance.

Mast Height and Tilt Angle Change Surveillance Tower Identification Distance

Raising the camera solves one problem and creates another.

Height clears fences, stacked containers and parked plant. It buys sight lines that a pole at eye level never gets. But surveillance tower identification distance falls as the downward tilt angle steepens.

Two effects cause this. A steeply tilted camera sees the top of a head rather than a face, and facial pixels are what the Identify threshold counts. The tilt also stretches the target plane, so pixel density varies sharply across the image.

A workable rule for planning: place the identification zone out from the mast base at roughly two to three times the mast height. Directly beneath the mast you get presence, not identity. The trade-off between raising and fixing the camera position is set out in telescopic mast versus fixed-height camera trailers.

How Many Cameras for a Construction Site Perimeter: Working It Through

The question how many cameras for a construction site perimeter has no single answer. It has a method.

1. Draw the site and mark the tasks. Gates and plant compounds need Identify. Fence lines usually need Detect. Storage areas often need Observe.
2. Measure the distance from each candidate trailer position to each marked zone.
3. Apply the formula. Work out the scene width each lens produces at that distance, then divide horizontal resolution by that width.
4. Compare against the threshold table. Any zone below its required density needs a closer position, a narrower lens or its own camera head.
5. Count the heads, then count the trailers.

Two patterns recur. A single wide-angle head on one trailer almost never delivers Identify at a gate 30 metres away. And a site that needs three separate identification zones needs either three camera heads or three positions.

Fixed and steerable heads behave differently here, since a steerable camera holds high density only where it is currently pointed. That comparison sits in PTZ versus single-camera surveillance trailers.

Why More Megapixels Does Not Extend How Far a Security Camera Trailer Can See

Buyers reach for resolution first. It rarely fixes the problem alone.

Doubling horizontal resolution doubles pixel density at a fixed scene width. That is real. But specifiers usually spend the extra pixels on a wider lens instead, and the density returns to where it started.

Three limits sit above resolution:

• Light. Pixel thresholds assume the scene is lit well enough to hold a fast shutter.
• Compression. Aggressive encoding removes the fine detail that identification depends on.
• Aim. A camera pointed five degrees off covers the wrong ground at full resolution.

Higher resolution also raises bitrate and storage load, which changes the retention plan. That relationship is covered in cloud storage versus on-board recording for surveillance trailers.

Conclusion

Coverage is a calculation, not a claim. Attach a task to every zone, convert it to a pixel density target, then check the lens and the distance against that number. Fleets that quote in px/m win specification arguments that fleets quoting in metres lose.

Optraffic manufactures the trailer, mast, power system and camera mount as one platform, so the sight line a specification assumes is the sight line the unit delivers. Fleet software ships with the equipment at no extra cost, which lets integrators verify camera aim across several sites from a single login. Broader deployment context for Australian projects sits in the mobile surveillance guide for Australian infrastructure sectors. To size coverage for a specific site, contact the Optraffic team with your site plan and target zones.

FAQ

How far can a security camera trailer see at night?

Less far than the daytime figure, unless illumination is added. Pixel density thresholds assume adequate light. Infrared and white-light illumination extend usable range but each has a stated reach.

What pixel density do I need to read a number plate?

Plate capture sits at the Identify end of the scale, around 250 px/m. Vehicle speed and approach angle matter as much as density, so plate zones need a dedicated camera position.

Does a taller mast always improve coverage?

No. Height clears obstructions, but a steeper tilt reduces surveillance tower identification distance. Plan the identification zone out from the base, not underneath it.

Can one trailer cover a whole construction site?

Rarely, if identification is required at more than one point. How many cameras for a construction site perimeter depends on how many zones need Identify rather than Detect.

Do UK and Australian projects use the same thresholds?

The px/m values match. The terminology differs, because AS/NZS 62676.4 pixel density wording follows the older edition while UK practice moves to the 2025 international edition. Quote both.
