Full-Matrix Multi-Screen VMS vs Segmented Display: Which Should You Specify?

When procurement managers and system integrators request a multi-screen variable message sign, the specification sheet eventually arrives at one unavoidable question: full-matrix display or segmented display? The answer determines legibility at speed, compliance classification, message flexibility, long-term maintenance cost, and whether the unit qualifies for the projects on your forward pipeline.

Full-matrix multi-screen VMS vs segmented display is not a question of better versus worse. It is a question of fit — and the wrong answer on a tender specification costs time, money, and in work zone deployments, compliance standing. This guide resolves the decision for hire company procurement managers and system integrators specifying portable VMS for the US, UK, and Australian markets.

Full-Matrix vs Segmented Display: What the Terms Actually Mean

Full-Matrix Display

Full-matrix VMS display technology arranges individual LED pixels in a uniform grid across the entire panel surface. Every pixel is independently addressable, giving the controller complete freedom to render any content the message requires. Key capabilities:

• Content: text, symbols, arrows, pictograms, graphics — no content restrictions
• Pixel pitch: P10 (10mm), P16 (16mm), P20 (20mm) — selected per deployment speed
• Dimming: per-pixel PWM control across the full luminance range
• Remote update: any message type via Optraffic Web System, no firmware character set limit

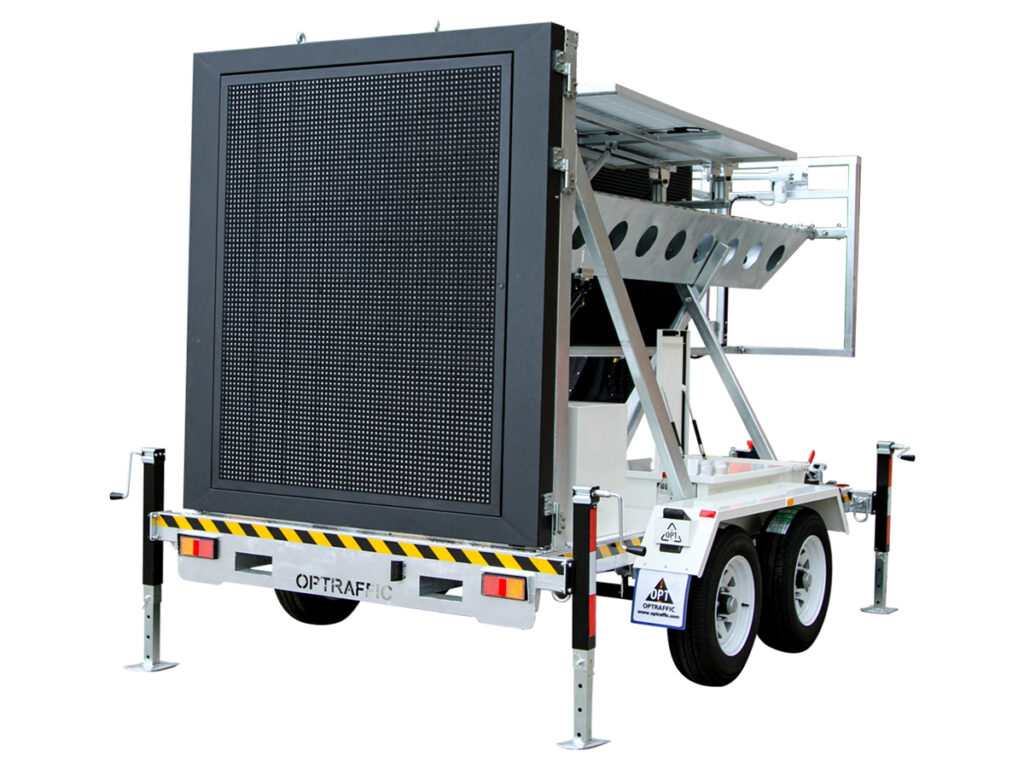

Full-matrix panels are the standard for all Optraffic portable VMS units, including the multi-screen variable message sign product line.

Segmented Display

Segmented VMS display technology arranges LEDs into fixed character positions. Each position contains a set of illuminatable segments — typically seven-segment or sixteen-segment — that render a predefined character set. Core limitations:

• Content: alphanumeric characters only — symbols, arrows, and graphics are not possible
• Flexibility: character size and position are fixed at manufacture
• Dimming: per-segment only; limited luminance granularity
• Update: restricted to the firmware character set; no arbitrary content

Segmented displays were the dominant VMS technology before full-matrix LED became cost-competitive. They are still found in legacy highway infrastructure and permanent overhead gantry signs, but are rarely specified for new portable VMS procurement in US, UK, or Australian markets.

Why the Distinction Matters for Multi-Screen VMS

A multi-screen variable message sign exists to solve a specific problem: delivering multiple independent messages simultaneously to a driver with limited reading time. That problem requires maximum content flexibility — the ability to display regulatory text on Panel 1 and a directional arrow or speed advisory graphic on Panel 2 at the same time.

A segmented display cannot render a directional arrow. It cannot display the standard work zone pictograms referenced in MUTCD Table 6F-1 or the symbolic content classes required under EN 12966:2014+A1:2019. Specifying a segmented display for a multi-screen variable message sign application removes the core capability that justifies the dual-panel architecture in the first place.

For a full explanation of what multi-screen variable message signs are designed to do, see what is a multi-screen VMS and how does it work.

Full-Matrix Multi-Screen VMS vs Segmented Display: Direct Comparison

Specification Dimension	Full-Matrix Multi-Screen VMS	Segmented Display VMS
Pixel architecture	Independent addressable LEDs in uniform grid	Fixed LED segments per character position
Content capability	Text, symbols, arrows, pictograms, graphics	Fixed character set only; no symbols or graphics
Character flexibility	Any font size, any character count per line	Fixed character size and position
EN 12966:2014+A1:2019 class	C4 (alphanumeric + symbolic)	C1 or C2 (alphanumeric only)
MUTCD symbol compliance	Full — renders Table 6F-1 pictograms	Not applicable — cannot render symbols
Pixel pitch options	P10, P16, P20 (select per application speed)	Not applicable
Multi-screen VMS suitability	✅ Full — both panels independently flexible	❌ Not suitable for dual-panel complex messaging
Dimming / brightness control	Per-pixel PWM dimming; full luminance range	Per-segment; limited dimming granularity
Remote content update	Full — any message via Optraffic Web System	Limited — only character set supported by firmware
ITS / NTCIP integration	NTCIP 1203-compliant full-matrix protocol	Limited or no NTCIP symbol support
Maintenance model	Module-level LED replacement; field serviceable	Character position replacement; specialist tooling
Typical unit cost	Higher	Lower
Best application	Highway work zones, events, ITS, complex messaging	Simple advisory signs, speed display, legacy systems

Non-Optraffic figures represent general market benchmarks. Verify with individual suppliers.

Compliance Classification: Where EN 12966 Separates the Two Display Types

EN 12966:2014+A1:2019 is the governing standard for variable message signs in UK and EU markets, and is the international benchmark referenced in Australian and other market specifications. The standard classifies VMS displays across multiple dimensions; the content class is the key differentiator between full-matrix and segmented panels.

EN 12966 Content Classes

Class	Content Type	Display Requirement
C1	Alphanumeric only	Fixed character set; segmented or full-matrix
C2	Alphanumeric + limited pictograms	Full-matrix required for pictogram rendering
C3	Full alphanumeric + standard pictograms	Full-matrix; higher pixel density required
C4	Full alphanumeric + all symbols + graphics	Full-matrix mandatory; minimum pixel pitch per character height

A segmented display can achieve C1 classification at most. A full-matrix multi-screen VMS panel qualifies for C4 classification, which is the requirement for deployments involving standard road signs, directional arrows, speed pictograms, and regulatory symbols.

For UK system integrators, a tender specifying EN 12966 C4 content class effectively mandates full-matrix display technology. A segmented panel does not comply — regardless of price or availability. The full compliance classification breakdown for Optraffic multi-screen panels is covered in the multi-screen variable message sign specifications guide.

See the full EN 12966:2014+A1:2019 standard at BSI Standards or the European Committee for Standardization (CEN) for the authoritative classification definitions.

US — MUTCD 11th Edition and Symbol Content

MUTCD 11th Edition Revision 1 (effective March 5, 2026) governs portable changeable message signs under Section 6F.55. It permits approved symbols and pictograms from Table 6F-1 in work zone VMS content. Whether full-matrix is mandatory depends on the message set:

• Text-only messages (ROAD CLOSED / SPEED 60 / EXPECT DELAYS): a segmented display is technically capable of MUTCD compliance
• Messages with arrow overlays, speed camera pictograms, or hazard symbols: full-matrix is mandatory — a segmented display cannot render Table 6F-1 symbolic content

Given that most highway work zone deployments involve at least one symbolic element, full-matrix display is the practical default for MUTCD-compliant portable VMS in the US. Full standard text is available at mutcd.fhwa.dot.gov.

Australia — AS/NZS 4852.2

AS/NZS 4852.2 governs Australian portable VMS compliance and aligns with the EN 12966 content classification framework. Key points for traffic safety equipment for the Australian market:

• AS/NZS 4852.2 content class requirements mirror EN 12966 — C3 and C4 mandate full-matrix
• State Code of Practice approvals (QLD, NSW) for full-matrix units are well established
• Segmented display units are rarely specified for new procurements in any Australian state market

Pixel Pitch Selection for Full-Matrix Multi-Screen VMS

Once full-matrix is confirmed as the correct display type, the next specification decision is pixel pitch. Pitch determines resolution, minimum legible character size, and viewing distance — and it directly affects the unit cost.

Pitch vs Application Speed

The minimum legible character height for a driver reading a VMS at speed follows the relationship: character height (mm) ≈ approach speed (km/h) × 10. At 100 km/h, the minimum character height is approximately 1,000mm; at 60 km/h, approximately 600mm.

Pixel Pitch	Typical Character Resolution	Minimum Legible Distance	Application
P10	High — 10mm per pixel	Longest — suitable for highway speeds	Highway work zones, 80–110 km/h approach
P16	Medium — 16mm per pixel	Medium — urban/suburban	Urban roads, 40–70 km/h approach
P20	Lower — 20mm per pixel	Shortest	Low-speed advisory, car parks, events

The Optraffic inquiry database confirms P10 SMD RGB as the dominant pitch specification across US, Australian, and Middle Eastern markets. A Jordan operator specifically requested P10, P16, and P20 options across a multi-unit order, illustrating that pitch selection is a per-project decision driven by deployment speed rather than a single-fleet standard.

For multi-screen variable message sign deployments on highways — the primary use case for dual-panel architecture — P10 is the correct specification. P16 is appropriate for urban construction and event venue applications where approach speeds are lower and cost efficiency is a procurement driver.

For a detailed breakdown of how panel size and pixel count interact with legibility requirements, see how to calculate the size of LED panels for VMS boards.

Maintenance Implications: Full-Matrix vs Segmented in a Hire Fleet

Hire companies running medium-to-large fleets need to evaluate not just acquisition cost but maintenance model. The two display types differ significantly in how they fail and how they are repaired.

Full-Matrix LED Maintenance

Full-matrix LED panels fail at the module level — a self-contained 8×8 or 16×16 pixel PCB grid connected to the controller via a standardised interface. Maintenance advantages for hire fleets:

• Repair level: module swap in the field or yard; no specialist tooling beyond a screwdriver
• Parts: standardised modules; no legacy component matching required
• Availability impact: unit stays in the revenue pool — field repair means no depot wait
• Enclosure protection: IP65-rated housing guards the LED matrix from dust ingress and water jet in roadside and event conditions

The Optraffic team conducts pre-shipment pixel integrity testing on every panel before dispatch, establishing a baseline that scheduled field maintenance sustains. For more on LED display technology and optical performance, see lens angle, brightness, and pixel pitch: what matters in optical lens VMS.

Segmented Display Maintenance

A segmented display fails at the character position or segment driver level. Replacement requires matching the original segment driver board and character housing — components that may not be available for legacy units. For hire companies managing mixed-age fleets, segmented unit maintenance can create parts availability problems that full-matrix module replacement avoids entirely.

Procurement Decision: Which to Specify

For Hire Companies

Specify full-matrix for all new fleet additions. The cost premium over segmented display is justified by:

• Compliance with EN 12966 C4, MUTCD symbol content, and AS/NZS 4852.2 for any project type
• Message flexibility that serves both construction site TMP content and event venue directional content on the same hardware
• Module-level maintenance model that supports field repair and maximises fleet availability
• Remote content management via Optraffic Web System for any message type, not limited to a fixed character set

Segmented display is not recommended for new purchases targeting the US, UK, or Australian markets. Its use case has been absorbed by low-cost full-matrix units at P16 or P20 pitch, which deliver comparable cost at significantly greater capability.

For guidance on the full specification checklist before committing to a purchase, see top features to look for when buying a VMS for sale and key factors traffic management companies should consider when investing in portable VMS signs.

For System Integrators

Specify full-matrix for all ITS-integrated projects. Three conditions that make full-matrix mandatory for integrators:

• NTCIP 1203 compliance: the protocol requires full-matrix display capability; segmented hardware cannot implement the symbol content commands
• WZDx / connected work zone: dynamic speed advisory and data-feed-driven content requires pixel-level rendering — not possible on segmented displays
• EN 12966 C3/C4 tenders: government and highway authority tenders specifying C3 or C4 content class legally exclude segmented display — confirm the class in tender documents before submitting a specification

The operational case for full-matrix in mixed-fleet hire operations is covered in detail in multi-screen variable message sign fleet management.

For Multi-Screen VMS Specifically

A multi-screen variable message sign should always be specified with full-matrix panels on both displays. The dual-panel architecture’s core value — simultaneous independent message delivery — requires that each panel can display any content type at any time. A segmented panel on either screen removes that flexibility and undermines the reason for specifying dual-panel hardware.

The deployment implications of full-matrix dual-panel configuration across construction and event applications are covered in multi-screen VMS construction sites vs event venues.
