What Do The Different Types Of Arrow Road Sign Mean?

Arrow road signs tell drivers what movement is required, or warn of a change in the road ahead — before a single word is read. In the United States, every arrow road sign on a public road must comply with the Manual on Uniform Traffic Control Devices (MUTCD), 11th Edition with Revision 1, issued by the Federal Highway Administration (FHWA) in December 2025. In the United Kingdom, arrow road signs are governed by the Traffic Signs Regulations and General Directions 2016 (TSRGD 2016, SI 2016/362). In Australia, AS 1742.2 covers permanent arrow road signs and AS 1742.3 covers temporary traffic control.

Understanding the different types of arrow road sign is a foundational road safety skill. Each arrow road sign type carries a specific legal meaning, and misreading one at speed can result in a wrong-way maneuver, a missed merge, or a traffic violation. This guide covers every standard arrow road sign category, its verified color and form under the applicable standard, and the key differences between the US, UK, and Australian systems.

Where those alignment changes are temporary rather than permanent, the sign itself has to move with the work — which is why lane-closure tapers are guided by LED arrow road sign (portable arrow boards) rather than fixed plates.

Note: The MUTCD 11th Edition with Revision 1 is the currently applicable federal standard for all public roads in the United States. States are required to adopt it or a substantially compliant supplement. This article provides general educational information only and should not replace engineering advice or official standards documents.

Arrow road signs serve two distinct functions in traffic control: they regulate mandatory movements — telling drivers what they must do — and they warn of upcoming changes in road alignment — telling drivers what is ahead. Confusing these two categories is a common driver error, one that arrow road sign design works to prevent through consistent color and shape coding across all sign types.

Why Arrow Road Signs Matter for Road Safety

According to the FHWA, intersections account for roughly one-quarter of all US traffic fatalities and approximately half of all traffic injuries each year — making them the most critical locations where arrow road sign compliance directly affects driver decision-making. The MUTCD arrow sign standards are designed to minimize ambiguity at these high-risk decision points.

Arrow road signs are not arbitrary. Their colors, shapes, and arrow forms follow strict national standards. Yellow means warning. Black on white means a mandatory regulatory instruction. Orange means a temporary work zone instruction. Knowing these codes allows a driver to process an arrow road sign correctly in under two seconds — the processing window available at highway speeds.

Types of Arrow Road Sign: Complete Guide by Category

1. Regulatory Arrow Road Signs — Mandatory Directions

A regulatory arrow road sign tells drivers what movement they must or must not make. These signs carry the force of law; ignoring them is a traffic offense in all US states. Under MUTCD Chapter 2B, regulatory signs are white-background vertical rectangles with black legends and borders. This is the standard color and form for all mandatory traffic instructions in the US — not yellow, not green, not blue.

The most common regulatory arrow road sign types are:

• Turn restriction arrow signs: A curved black arrow beneath a red circle with a diagonal bar indicates a prohibited turn direction — no right turn, no left turn, or no U-turn. The red circle-and-bar format makes the prohibition immediately recognizable.
• Mandatory lane-use arrow signs (R3-5, R3-7 series): Black arrows on white vertical rectangle signs, placed overhead or at lane entries, designate which movement is mandatory in a given lane — straight ahead only, left turn only, right turn only, or a combination. When one of these arrow road signs is posted, the movement shown is legally required for drivers in that lane.
• One-way arrow signs (R6-1, R6-2): A black arrow on a white horizontal rectangle indicates a one-way road and the permitted direction of travel. Placed parallel to the one-way roadway at all intersecting approaches.

In the UK, the TSRGD 2016 Schedule 3 prescribes mandatory direction arrows as white arrows within a blue circle — the format shared with most Vienna Convention countries. In Australia, AS 1742.2 uses the same blue-circle format for mandatory directional arrows. Neither the UK nor Australia uses the US black-on-white rectangle format for mandatory arrows.

2. Warning Arrow Road Signs — Hazard Ahead

A warning arrow road sign alerts drivers to an upcoming change in road alignment requiring caution. In the United States, all permanent warning arrow road signs use a yellow diamond background with a black arrow — governed by MUTCD Chapter 2C. This yellow diamond format is consistent across all 50 states and applies to every warning arrow type.

Key warning arrow road sign types under MUTCD Chapter 2C:

• Curve arrow sign (W1-2): A single curved black arrow on a yellow diamond warns of a curve in the road ahead. The arrow curves in the direction of the road. Placement distance from the hazard is based on posted speed per MUTCD Chapter 2C.
• Turn arrow sign (W1-1): A right-angle curved black arrow on a yellow diamond warns of a sharp turn — more severe than a curve sign. Used where the curve requires a significant speed reduction.
• Reverse curve and reverse turn signs (W1-4, W1-3): An S-shaped arrow on a yellow diamond warns of two successive curves or turns in alternating directions.
• One-Direction Large Arrow sign (W1-6): A large oversized black arrow on a yellow background — not the standard diamond shape — placed on the outside of sharp curves to provide continuous alignment guidance. Governed by MUTCD Section 2C.10.
• Diverging arrow sign: A forked black arrow on a yellow diamond warns that the road splits into separate directions ahead — used at Y-junctions and freeway splits.
• Merge arrow sign (W4-1): A converging black arrow on a yellow diamond warns that two roadways merge ahead and merging movements will be required. Placed on the major roadway side where entering traffic will merge.
• Two-Way Traffic arrow sign (W6-3): Two black arrows pointing in opposite directions — one up, one down — on a yellow diamond. This is a WARNING sign, not a regulatory sign. It warns drivers of the transition from a divided or one-way section to a two-lane, two-way road ahead. Governed by MUTCD Chapter 2C, Section 2C.51.

In temporary traffic control zones, warning arrows switch from yellow to orange backgrounds — the diamond shape is retained, but the orange color signals a work zone environment requiring additional caution (MUTCD Chapter 6F). In the UK, the TSRGD 2016 Schedule 13 governs temporary warning arrow signs. In Australia, AS 1742.3 specifies equivalent orange-background requirements.

3. Yellow Arrow Road Sign Meaning

A yellow arrow road sign is always a warning sign under MUTCD Chapter 2C — it indicates a change in road alignment or road condition ahead that requires caution. Yellow arrow road signs are diamond-shaped with black arrows. This covers curve arrows, turn arrows, diverging arrows, merge arrows, and the two-way traffic arrow sign (W6-3).

Yellow warning arrow signs are advisory in nature. They do not carry the mandatory compliance of a regulatory sign. However, failing to adjust driving behavior to the condition warned is a contributing factor in crash liability under US traffic law. The practical instruction is to reduce speed and prepare for the indicated road change.

Specific yellow arrow road sign types and meanings:

• Yellow curved arrow: A curve ahead requiring speed reduction. The arrow curves in the direction of the road.
• Yellow right-angle arrow: A sharp turn ahead — more severe than a curve. Requires significant deceleration.
• Yellow S-shape arrow: Two successive curves in alternating directions ahead.
• Yellow forked arrow: The road divides into two directions ahead — Y-junction or freeway split.
• Yellow up-and-down arrow (W6-3): Two-way traffic transition ahead — the road changes from divided or one-way to bidirectional.

4. Double Arrow Sign Meaning — Two-Way Traffic (W6-3)

The double arrow road sign showing two arrows pointing in opposite directions — one up, one down — is the Two-Way Traffic sign, MUTCD designation W6-3. This is a WARNING sign: a yellow diamond with black arrows, governed by MUTCD Chapter 2C, Section 2C.51. It warns drivers that the road ahead transitions from a divided highway or one-way section to a two-lane, two-way road where oncoming traffic will be present.

This is one of the most commonly misclassified arrow road signs. W6-3 is not a regulatory sign and does not use a white rectangle format. It is a yellow diamond warning sign — the same color and shape category as all other MUTCD Chapter 2C signs. Drivers seeing this sign should prepare for oncoming traffic, stay in their designated lane, and reduce speed if necessary.

5. Green Arrow Signs — Permitted Movements

Green arrow signs are used in two distinct contexts in the US traffic control system. As a traffic signal indication under MUTCD Part 4, a green arrow means a protected turn is permitted — oncoming traffic is stopped, and drivers may proceed in the arrow direction without conflict. As a guide sign element under MUTCD Chapter 2D, green background arrows on overhead rectangular signs provide route guidance and direction information. Green is not used for warning arrows in the US system.

Arrow Road Signs in Work Zones: From Static Signs to Dynamic Arrow Boards

Static arrow road signs set the regulatory baseline for any work zone. Under MUTCD Part 6, every temporary traffic control zone must include compliant advance warning signs, including arrow warning signs for lane shifts, tapers, and alignment changes. These static signs cannot, however, adapt to real-time conditions — a changing lane closure, a moving work zone, or a queue that builds faster than anticipated.

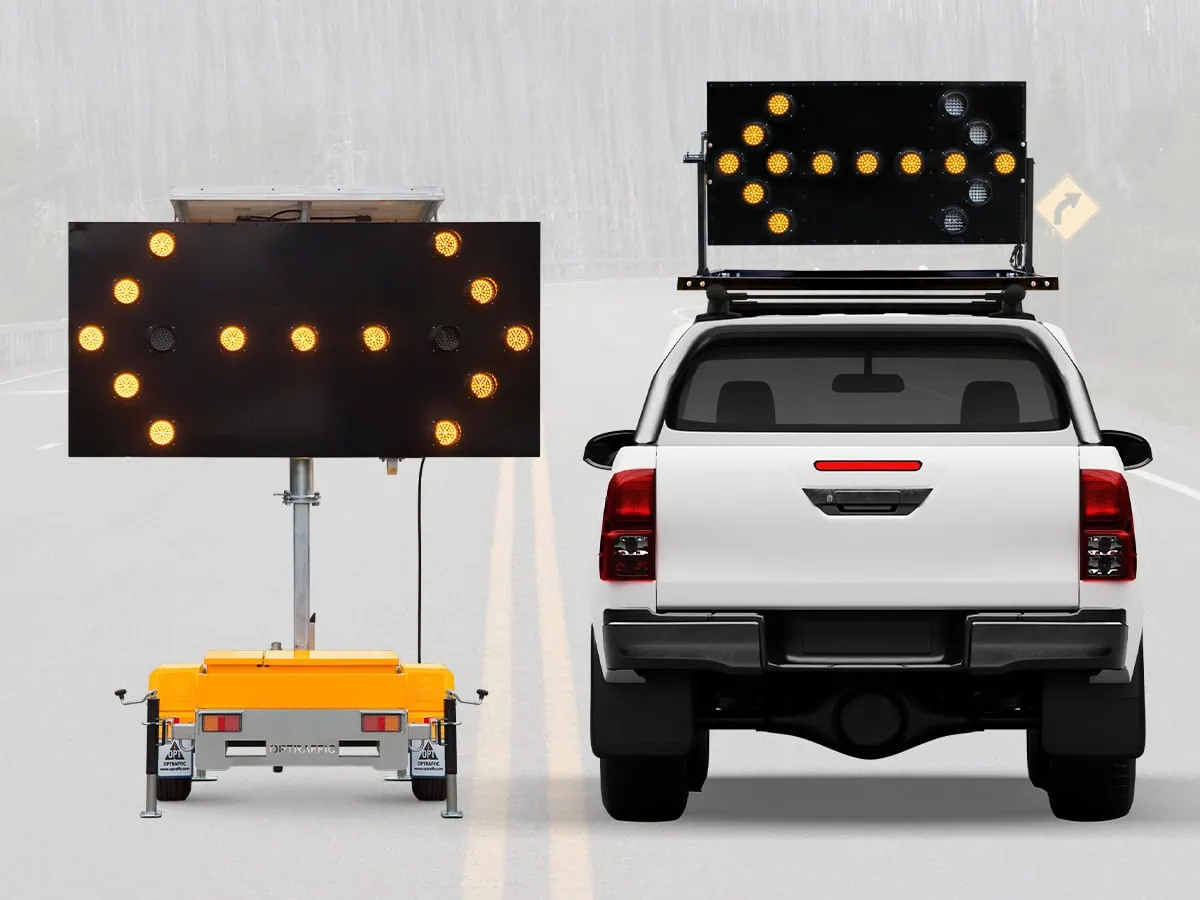

This is where dynamic arrow boards extend the static sign system. MUTCD Section 6F.57 requires arrow boards at lane-closure tapers on freeways and expressways. Arrow boards display directional arrow patterns — left, right, or alternating chevrons — to actively guide traffic through the taper point. Unlike a static arrow road sign, an arrow board can be repositioned as the work zone moves, activated or deactivated remotely, and programmed for different display modes depending on traffic conditions.

In Australia, AS 1742.3 and the Austroads Guide to Temporary Traffic Management specify equivalent requirements for arrow boards in work zones. In the UK, Traffic Signs Manual Chapter 8 governs temporary arrow sign placement and the use of portable traffic management equipment at road works.

For work zone managers and contractors: understanding arrow road sign types is the foundation — but managing live traffic conditions at a taper or lane closure also requires MUTCD-compliant arrow board equipment. For an overview of arrow board specifications by road type and work zone configuration, see our guide to white arrow board traffic signs on highways.

Arrow Road Signs: US, UK, and Australia Compared

Arrow road sign design varies significantly by jurisdiction. The table below compares the three regulatory frameworks most relevant to international drivers, contractors, and traffic management professionals operating across the US, UK, and Australian markets.

Sign Purpose	USA — MUTCD 11th Ed.	UK — TSRGD 2016	Australia — AS 1742.2
Mandatory direction	Black arrow on white vertical rectangle (Chapter 2B)	White arrow in blue circle (Schedule 3, SI 2016/362)	White arrow in blue circle (AS 1742.2)
Curve warning	Black arrow on yellow diamond (Chapter 2C)	Black arrow in red-bordered white triangle (Traffic Signs Manual Chapter 4)	Black arrow on yellow diamond (AS 1742.2)
Two-way traffic warning	Two black arrows on yellow diamond — W6-3, WARNING sign (Chapter 2C, Section 2C.51)	Equivalent warning triangle format per Traffic Signs Manual	Yellow diamond warning format (AS 1742.2)
Work zone arrow	Black arrow on orange diamond (Chapter 6F)	Temporary arrow signs per TSRGD 2016 Schedule 13	Orange background per AS 1742.3
One-way direction	Black arrow on white rectangle — R6-1 (Chapter 2B, Section 2B.49)	White arrow on blue rectangle (Schedule 3)	White arrow on blue rectangle (AS 1742.2)
Turn prohibition	Black curved arrow beneath red circle with diagonal bar (Chapter 2B)	Black arrow beneath red circle with bar (Schedule 3)	Black arrow beneath red circle with bar (AS 1742.2)

The US did not ratify the Vienna Convention on Road Signs and Signals (1968), which is why mandatory direction arrows in the US use black-on-white rectangles while the UK and Australia use blue-circle formats. Warning arrows also differ: the US uses yellow diamonds while the UK uses red-bordered white triangles. Drivers traveling internationally should consult the local standard before driving.

For full official sign specifications, refer directly to the primary sources:

• USA: FHWA MUTCD 11th Edition — mutcd.fhwa.dot.gov
• UK: TSRGD 2016 on legislation.gov.uk — legislation.gov.uk
• Australia: Austroads — austroads.com.au

For a broader comparison of how traffic sign types differ by country, see our guide on how traffic sign types differ by country or region.

Arrow Road Sign Quick Reference

Sign Type	Color / Form	Standard	Driver Action
Curve ahead arrow sign	Black arrow / yellow diamond	MUTCD Ch. 2C	Reduce speed — curve in road ahead
Turn ahead arrow sign	Black right-angle arrow / yellow diamond	MUTCD Ch. 2C	Significant speed reduction — sharp turn ahead
One-Direction Large Arrow sign	Oversized black arrow / yellow background	MUTCD 2C.10	Follow arrow direction — alignment guidance at sharp curve
Two-way traffic arrow sign (W6-3)	Two black arrows up/down / yellow diamond — WARNING	MUTCD 2C.51	Two-way traffic transition ahead — watch for oncoming vehicles
Diverging arrow sign	Forked black arrow / yellow diamond	MUTCD Ch. 2C	Road splits ahead — prepare to choose direction
Merge arrow sign (W4-1)	Converging black arrow / yellow diamond	MUTCD Ch. 2C	Lanes merging ahead — yield and merge safely
Lane-use arrow sign — straight (R3-5)	Black arrow / white vertical rectangle — REGULATORY	MUTCD Ch. 2B	This lane must proceed straight — mandatory
Lane-use arrow sign — turn (R3-7)	Black arrow / white vertical rectangle — REGULATORY	MUTCD Ch. 2B	This lane must turn in direction shown — mandatory
One-way arrow sign (R6-1)	Black arrow / white horizontal rectangle — REGULATORY	MUTCD 2B.49	Travel only in arrow direction
Work zone arrow sign	Black arrow / orange diamond	MUTCD Ch. 6F	Work zone ahead — reduce speed, follow lane guidance
Green arrow signal	Green arrow signal face	MUTCD Part 4	Protected turn — oncoming traffic stopped, proceed in arrow direction

Related Equipment and Solutions

Arrow signage is one layer of a temporary traffic control setup. The equipment below covers the layers that sit alongside it at the same work site:

• Lane-closure messaging beyond a directional arrow — an arrow board states direction only. Where the closure needs a reason, a detour instruction, or a queue warning, that text is carried by a message board trailer.
• Signalized single-lane control — where a closure drops two-way traffic onto one lane, the arrow board hands off to portable traffic signal lights for right-of-way control at each end of the shuttle section.
• Site monitoring after the crew leaves — unattended work zones lose signage and plant overnight. Surveillance and camera trailers keep the site under recorded observation between shifts.

For the full picture of how these devices work together across a temporary traffic control zone, see Optraffic’s traffic safety industry overview.

Frequently Asked Questions

Disclaimer: This article provides general educational information about traffic sign standards and should not be relied upon as legal or engineering advice. Always consult the applicable edition of the MUTCD 11th Edition with Revision 1, the current applicable federal standard, TSRGD 2016, or AS 1742 as appropriate for your jurisdiction, and a qualified traffic engineer for site-specific compliance determinations.
