Crosswalk Speed Feedback Signs for High-Pedestrian Corridors: How US Traffic Engineers and Public Works Directors Increase Pedestrian Safety at Traffic Signals and Crosswalks

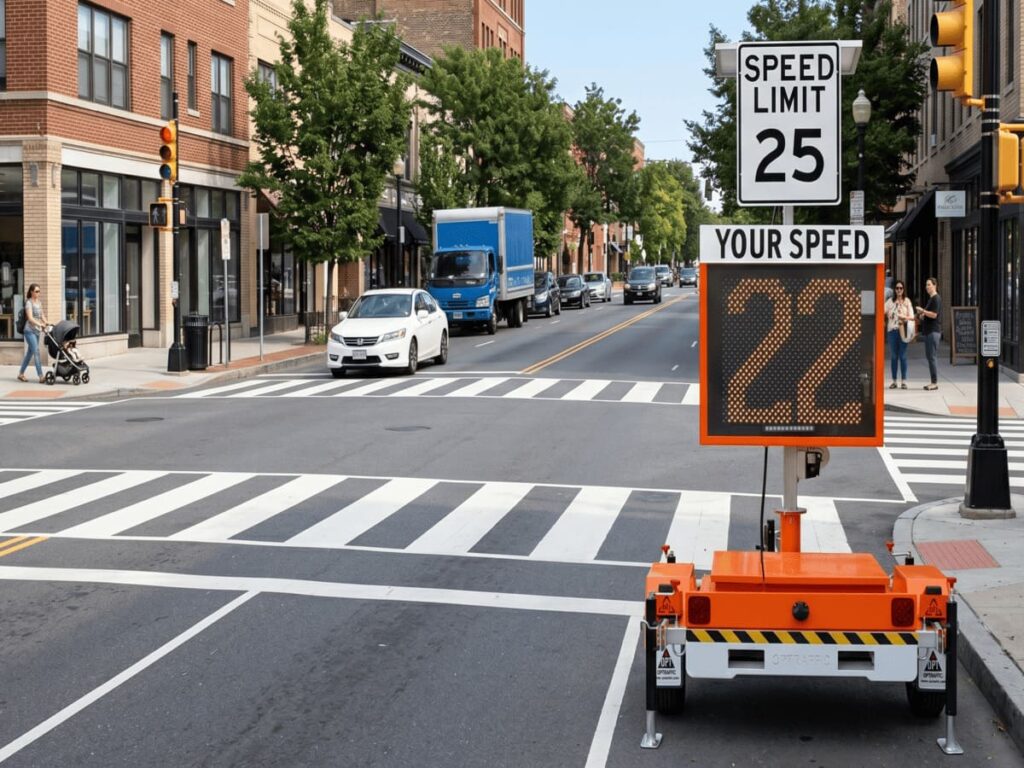

A crosswalk speed feedback sign displays an approaching vehicle’s real-time speed to the driver at or in advance of a pedestrian crossing. Unlike a traffic signal, it does not stop traffic. Unlike a speed camera, it does not generate citations. What it does — consistently, according to FHWA research — is reduce approach speeds at targeted locations by making drivers aware of their speed before they reach the crossing.

For US traffic engineers and public works directors, the device sits at the intersection of three persistent problems: increasing pedestrian safety at traffic signals and crosswalks, generating the before/after speed data that federal grant auditors require, and doing both without triggering the enforcement-grade compliance obligations that come with speed cameras. This guide covers all three — starting with what MUTCD §2C.13 actually requires, moving through portable deployment options and data logging, and ending with the advisory-vs-enforcement boundary that catches agencies off guard.

Why Traffic Signals Alone Don’t Solve Speeding at Pedestrian Crossings

A signalized intersection controls vehicle movement at the point of conflict. It does not control approach speed in the 300–500 feet before the signal. FHWA pedestrian safety research identifies this approach zone as the primary risk window: drivers arriving at speed during a signal phase change — particularly at the onset of yellow — frequently cannot stop in time for pedestrians still in the crosswalk.

The FHWA Pedestrian and Bicycle Safety program documents that pedestrian fatalities are not limited to uncontrolled mid-block crossings. Signalized intersections account for a significant share of struck-by incidents, particularly in urban corridors where signal timing is optimized for traffic throughput rather than pedestrian clearance intervals.

A portable radar speed sign deployed in advance of a high-pedestrian signalized intersection addresses the approach speed problem directly — without requiring signal retiming, infrastructure modification, or law enforcement presence. The same compliance gap exists in residential HOA roads and school zone corridors; see our guide on neighborhood radar speed signs for HOA boards and municipal engineers for the residential deployment context.

MUTCD 11th Edition §2C.13: What Agencies Must Know Before Specifying a Crosswalk Speed Feedback Sign

The MUTCD 11th Edition §2C.13 (effective January 18, 2024) governs the Vehicle Speed Feedback Sign (W13-20) and Vehicle Speed Feedback Plaque (W13-20aP). These are the federal designations for what practitioners call crosswalk speed feedback signs, driver feedback signs, or radar speed signs. Key provisions:

• Warning device classification: §2C.13 classifies the W13-20 as a warning sign. Speed readings cannot be used to issue citations. No law enforcement authorization is required for installation under the federal standard — though state and local rules may impose additional requirements.
• Display requirement: Yellow luminous legend on a black opaque background. Speed displayed as an integer.
• No flash, strobe, or color-change of the changeable legend: §2C.13 Standard provision: the sign shall not flash, strobe, change color, or use other animated elements in the changeable display. Blank when no vehicle is detected.
• No calibration mandate: Warning device classification removes the calibration requirements that apply to enforcement-grade radar. This eliminates the largest recurring compliance cost for agencies.
• Portable deployment: §2C.13 does not restrict Vehicle Speed Feedback Signs to permanent installation. Portable models can redeploy across multiple crosswalk locations. Each relocation does not require a new permit under the federal standard — confirm with your state DOT.
• Size by road type: MUTCD 11th Edition determines sign size by road classification (single-lane, multi-lane, expressway) rather than posted speed limit. Confirm appropriate size with a qualified traffic engineer for your specific crosswalk geometry.

State adoption note: States must adopt MUTCD 11th Edition by January 18, 2026. Until formal adoption, your state DOT may still be operating under the 2009 edition. Confirm your state’s current adopted standard — particularly on size requirements and any additional display rules — before finalizing specifications.

Crosswalk Speed Feedback Sign Placement: FHWA Advance Distance Guidelines

Placement is the variable most agencies get wrong. Installing a crosswalk speed feedback sign at the crosswalk itself captures the vehicle too late — the driver has insufficient distance to react and reduce speed before reaching pedestrians.

FHWA guidance for warning devices references Table 2C-3 advance placement distances based on road speed. For pedestrian zone speed signs deployed at crosswalks, the relevant considerations are:

• Advance placement distance: Install the sign in advance of the crosswalk — at a distance sufficient for the driver to perceive the speed display, recognize they are approaching a crosswalk, and decelerate. At 25 mph, 200 feet provides approximately 5.5 seconds of reaction time. At 35 mph, 400 feet provides approximately 7.8 seconds. A qualified traffic engineer should confirm appropriate setback for your specific road geometry and posted speed.
• Bilateral installation for two-way corridors: For two-way traffic, one sign in each direction of travel. A portable radar speed sign crosswalk deployment can serve both directions with a single unit on a rotating schedule — AM approach for school arrival, PM approach for dismissal — if budget constrains simultaneous bilateral coverage.
• Coordination with other pedestrian devices: §2C.13 speed feedback signs are compatible with HAWK beacons and Rectangular Rapid Flash Beacons (RRFBs) at the same crosswalk. These are distinct systems with separate warrants and activation mechanisms. The speed feedback sign addresses approach speed; the HAWK or RRFB addresses vehicle yielding at the crossing. Both can be deployed at the same location — confirm device interaction with your state DOT signal engineer.
• School zone coordination: In school zones, the Vehicle Speed Feedback Plaque (W13-20aP) can be mounted below a School Speed Limit sign per MUTCD §7B.05. The plaque displays the driver’s actual speed — not a posted limit. For full school zone placement guidance, see our article on solar speed display signs for school zones.

Engineering judgment: MUTCD §2C.13 specifies that sign placement should be based on engineering judgment. Agencies are advised to involve a qualified traffic engineer for crosswalks with complex geometry, high pedestrian volumes, or multi-lane approaches.

Portable Radar Speed Signs with Data Logging: What Grant Auditors Actually Need

Federal highway safety grants — FHWA’s Highway Safety Improvement Program (HSIP) and Safe Routes to School (SRTS) — require before/after speed data to demonstrate that funded countermeasures produced measurable results. A radar speed sign with data logging generates this evidence automatically during normal operation.

What the Data Logging Function Captures

• Vehicle count by time interval (typically 15-minute bins)
• Speed distribution histogram: percentage of vehicles at each speed bracket
• 85th-percentile speed: the standard metric FHWA grant programs use to measure before/after change
• Time-stamped speed records: exportable for audit submission

How OPTRAFFIC Fleet Manager Supports Multi-Location Grant Reporting

Models compatible with the OPTRAFFIC Fleet Manager 3.0 aggregate data across multiple deployed units on a single cloud dashboard. For agencies managing speed feedback signs at several crosswalk locations under one HSIP or SRTS grant, Fleet Manager generates location-by-location speed records without requiring on-site data retrieval visits.

The Fleet Manager also supports remote radar configuration — adjusting detection thresholds and display behavior across all units from one interface — and provides device health monitoring to flag battery or communication issues before they cause data gaps in a grant reporting period.

For non-enforcement certification documentation that some agencies need alongside their data logging records, see our guide on speed feedback sign non-enforcement certification for audit requirements.

Grant Funding Pathways for Crosswalk Speed Feedback Sign Procurement

Grant Program	Administering Body	Typical Eligibility	Confirm With
HSIP (Highway Safety Improvement Program)	State DOT	Locations with documented crash history or high pedestrian risk	State DOT HSIP coordinator
SRTS (Safe Routes to School)	State DOT	Within ~1 mile of K–12 school; non-infrastructure countermeasures eligible	State DOT SRTS coordinator
CMAQ (Congestion Mitigation & Air Quality)	MPO	EPA non-attainment or maintenance areas	Regional MPO
UASI (Urban Area Security Initiative)	DHS / local UASI admin	High-density urban pedestrian corridors — confirm eligibility	Your jurisdiction’s UASI administrator

Grant eligibility note: Eligibility requirements, match ratios, and application cycles vary by state, program year, and MPO. The table above reflects general program parameters. Confirm current requirements directly with your state DOT coordinator or MPO before initiating a procurement process.

Radar Speed Signs with License Plate Camera: Where Advisory Ends and Enforcement Begins

Several inquiries our team receives each year come from agencies asking whether a radar speed sign with license plate camera can generate enforceable citations. The answer involves an important legal distinction that affects both procurement decisions and device specifications.

The Advisory-Enforcement Boundary Under MUTCD §2C.13

MUTCD §2C.13 classifies the Vehicle Speed Feedback Sign (W13-20) as a warning device. This classification is not changed by attaching a camera to the same post, mounting bracket, or housing. The sign’s speed display cannot be used as evidence for a citation regardless of whether a camera records the approach.

An LPR (license plate recognition) camera is a separate system with its own legal authorization requirements. In most US jurisdictions, automated speed enforcement using LPR requires specific enabling legislation, a court-approved program, and chain-of-custody protocols for image evidence. None of these requirements are satisfied by deploying a §2C.13 advisory sign with a camera enclosure.

What the Camera Pocket on Optraffic’s Folding Frame Radar Speed Sign Actually Does

The Folding Frame Radar Speed Sign‘s camera enclosure option is a physical housing — it accommodates a third-party camera for situational awareness purposes (monitoring pedestrian volume, documenting near-miss incidents, or supporting a separately authorized enforcement program).

Agencies operating a separately authorized automated speed enforcement program should work with their legal counsel and state DOT to confirm the chain-of-custody and technical requirements before combining a §2C.13 advisory sign with an LPR camera system. For dedicated law enforcement deployments requiring a purpose-built surveillance platform, see our guide on police camera trailers for law enforcement checkpoints.

From the Inquiry Queue: Crosswalk Deployment Questions Our Team Has Addressed

The following are anonymized composite representations of procurement inquiries received by our team. They illustrate common decision points — not specific outcomes or product commitments.

Inquiry A — Public Works Director, Mid-Atlantic US County

“We have six school-adjacent crosswalks in the same district that all need speed feedback signs. Budget only covers four units right now. Is it better to put permanent signs at the four worst locations, or get portable units we can rotate across all six?”

How our team approached this: We walked through the tradeoff. Fixed installation at four locations gives continuous 24/7 coverage at those sites but leaves two crosswalks unaddressed. A portable deployment strategy with four units on a rotation schedule — for example, two units per week per location on a two-week cycle — means all six crosswalks receive coverage within every grant reporting period, which matters for HSIP multi-site documentation requirements. The data logging function on Fleet Manager-compatible models records speed data during each deployment window, and location tags in the platform keep multi-site records separate for auditing. We recommended the portable approach for agencies with more locations than units, and directed the director to contact our team to discuss which models best fit the mounting infrastructure already in place at the six sites.

Inquiry B — Transportation Planner, West Coast City

“We’re deploying crosswalk speed feedback signs at twelve intersections as part of a Vision Zero corridor program. Some are narrow residential streets, some are four-lane arterials. Do we need different sign sizes or models for each road type?”

How our team approached this: Yes — and this is precisely where MUTCD 11th Edition changed the rules. Prior to the 11th Edition, sign size was based on posted speed limit. The 11th Edition bases size on road type classification: single-lane, multi-lane, expressway. A sign sized for a 25 mph residential street is not automatically compliant on a four-lane arterial, even at the same posted speed. We recommended the planner work with a qualified traffic engineer to confirm road classification and appropriate sign dimensions for each of the twelve locations before specifying a single model across the program. For the arterial locations, the trailer-mounted Variable Speed Limit Signs (VSLS®) handle larger road scales and can be repositioned without requiring new mounting hardware. For the residential crosswalks, the Folding Frame Radar Speed Sign is sized for lower-speed, narrower roads. We directed the planner to contact our team with the road classification breakdown for a model recommendation per location type.

Optraffic Portable Speed Feedback Signs for Pedestrian Corridors: Model Guide

Optraffic’s Radar Speed Signs range is designed primarily for portable deployment — repositionable across multiple crosswalk and corridor locations without new permits per site. The following reflects confirmed product information from Optraffic’s published product pages.

Primary Recommendations for Crosswalk Deployments

Model	Type	Best For	Key Feature
Folding Frame Radar Speed Sign	Portable (post/u-channel mount, removable)	Single-location or rotating crosswalk deployments; school zone corridors	High-accuracy radar; 90-degree folding frame; optional camera pocket housing; compact for residential-scale roads
Compact Radar Speed Sign	Portable (compact structure)	Space-constrained crosswalk locations; secondary intersections	Compact structure; easy relocation without heavy equipment
Variable Speed Limit Signs (VSLS®)	Trailer-mounted (portable)	Multi-intersection municipal programs; rotating deployment across corridor locations	Trailer-mounted for fast relocation; optional radar detection; remote control via Fleet Manager; suited to arterial-scale roads

Fixed Installation Option

For permanent high-risk crosswalk locations where the same site warrants continuous year-round coverage, the Fixed Radar Speed Sign provides a solar-powered permanent installation option. Fixed installations are suited to locations with documented long-term pedestrian fatality history or where a traffic study confirms permanent speed feedback is warranted. Contact our team to discuss whether a fixed or portable configuration better matches your site conditions and budget.

Fleet Manager Integration

All primary models above are compatible with the OPTRAFFIC Fleet Manager 3.0 — a cloud-based platform providing smart radar configuration, data logging, device health monitoring, interactive location mapping, and OTA firmware updates across multiple deployed units. For agencies managing crosswalk speed feedback signs across several intersections under a single grant program, Fleet Manager centralizes data collection and reporting without requiring on-site visits to each unit.

Full product range: Optraffic Radar Speed Signs.

Conclusion

Crosswalk speed feedback signs address the approach speed problem that traffic signals alone cannot solve. Under MUTCD 11th Edition §2C.13, they are warning devices — no enforcement authority, no calibration mandate, no law enforcement authorization required under the federal standard.

For US traffic engineers and public works directors, the portable form factor means one unit can serve multiple crosswalk locations across a corridor program. The data logging function means that same unit generates the before/after speed records that HSIP and SRTS grant auditors require. And the advisory classification means the program avoids the legal and compliance obligations of automated enforcement.

Confirm your state DOT’s current MUTCD adoption status before finalizing specifications. To discuss which portable model fits your crosswalk geometry, request a datasheet, or explore Fleet Manager data reporting formats for your grant program, contact the Optraffic team.

Frequently Asked Questions
