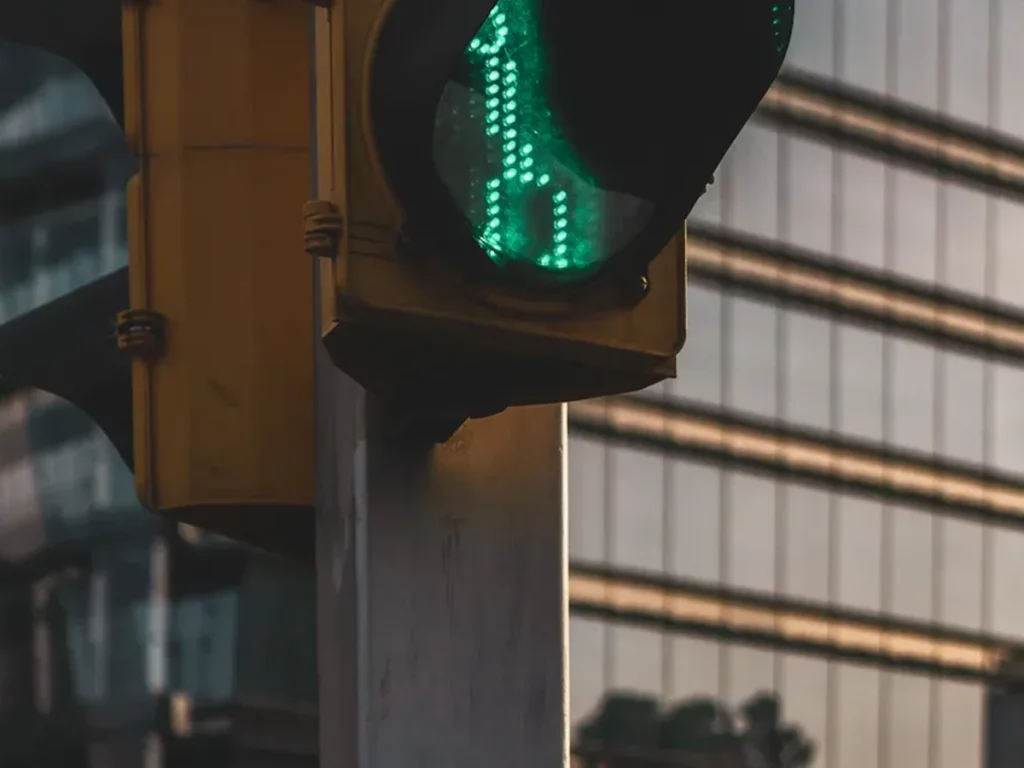

The Relationship Between the Color of Automatic Traffic Light and Visual Structure

The connection between the colors of automatic traffic lights and their visual structure plays a vital role in traffic management. Red, yellow, and green are not random choices; they are selected for their ability to influence driver behavior and ensure road safety. Red commands attention and signals drivers to stop, while yellow prompts caution and prepares them to slow down. Green encourages movement, facilitating smooth traffic flow. Studies reveal that red and yellow improve decision-making and reduce accidents by prompting quicker reactions. The design of traffic signal lights complements these colors, ensuring clarity and effective traffic control on busy roads.

Historical Context of Automatic Traffic Lights

The Evolution of Traffic Signals

Early Traffic Control Systems

The journey of traffic signals began in 1868 when London introduced the first gas-lit traffic signal. Designed by J.P. Knight, it used semaphore arms to manage traffic flow. However, a gas leak caused an explosion, making this system short-lived. In 1912, Lester Wire developed the first electric traffic light in Salt Lake City, Utah. This innovation replaced gas-powered systems and marked a significant step forward in traffic management. By 1920, William Potts introduced the three-color traffic light in Detroit, adding an amber light to improve traffic control at intersections.

These advancements laid the foundation for modern traffic signals. Cleveland, Ohio, installed the first electric traffic signal system in 1914, which proved more effective than earlier designs. Garrett Morgan further contributed in 1923 by patenting a three-position traffic signal. His design included a warning position, which evolved into the yellow light used today.

Adoption of Red, Yellow, and Green

The adoption of red, yellow, and green as standard colors for traffic signals was not arbitrary. Red, with its long wavelength, is highly visible and signals drivers to stop. Yellow, positioned between red and green in the spectrum, serves as a cautionary color. Green, associated with safety and movement, encourages drivers to proceed. These colors became universally recognized due to their effectiveness in reducing accidents and improving traffic management.

Innovations in the early 20th century solidified this color scheme. Garrett Morgan and William Potts played pivotal roles in establishing the three-color system. Their contributions ensured that traffic signals provided clear and consistent messages to drivers, enhancing road safety.

Standardization of Traffic Light Design

Global Adoption of Color Codes

The global adoption of red, yellow, and green as standard traffic light colors resulted from their proven effectiveness. These colors improved road safety by providing clear signals to drivers. Countries worldwide recognized the need for a uniform system to facilitate international travel and trade. This standardization ensured that drivers could understand traffic signals regardless of location.

Influence of Urbanization and Industrial Growth

Urbanization and industrial growth in the 20th century increased the demand for efficient traffic control systems. As cities expanded, the need for standardized traffic signals became evident. The introduction of automatic traffic lights addressed this challenge by managing traffic flow more effectively. These systems reduced congestion and improved safety in rapidly growing urban areas.

The evolution of traffic signals reflects the intersection of technological innovation and societal needs. From gas-lit signals to modern automatic traffic lights, these systems have transformed traffic management, ensuring safer and more efficient roads.

The Psychology of Color in Traffic Signals

Color Perception

How the Human Eye Detects Colors

The human eye perceives colors through specialized cells in the retina called cone cells. These cells are sensitive to specific wavelengths of light. Red is detected when light with wavelengths around 600 nanometers reaches the retina. Green is perceived at approximately 550 nanometers, while yellow is recognized through the simultaneous stimulation of red and green cone cells. This unique mechanism allows drivers to distinguish traffic signals quickly, even in varying lighting conditions. The eye’s sensitivity peaks at 555 nanometers, which falls within the green spectrum, making green signals particularly effective for traffic management.

Visibility and Wavelength Properties of Red, Yellow, and Green

The visibility of red, yellow, and green in traffic signals is closely tied to their wavelength properties. Red, with the longest wavelength, remains highly visible over long distances, making it ideal for stop signals. Yellow, positioned between red and green, serves as a cautionary color due to its ability to stimulate both red and green cone cells. Green, associated with movement, is easily distinguishable and promotes smooth traffic flow. These properties ensure that each color communicates its intended message clearly, enhancing road safety.

Cognitive Response to Colors

Psychological Impact of Red (Stop)

Red triggers an immediate sense of urgency and alertness. Its association with danger and warnings makes it an effective choice for stop signals. Drivers instinctively respond to red by halting their vehicles, reducing the likelihood of accidents at intersections.

Psychological Impact of Yellow (Caution)

Yellow conveys caution and prompts drivers to prepare for a change in traffic conditions. Its intermediate wavelength ensures high visibility, allowing drivers to react promptly. This color plays a crucial role in maintaining traffic control by signaling transitions.

Psychological Impact of Green (Go)

Green evokes a sense of safety and permission. It encourages movement and facilitates the smooth flow of traffic. Drivers associate green with progress, making it an essential component of automatic traffic light systems.

The Role of Color in Traffic Safety

Reducing Accidents Through Color Choices

The strategic use of red, yellow, and green in traffic signals significantly reduces accidents. Red and yellow, with their high-visibility wavelengths, prompt quicker reactions from drivers. Amber lights, in particular, signal caution effectively, ensuring drivers interpret messages without confusion. Clear signals enhance driver awareness, especially in high-risk areas, preventing collisions.

Enhancing Compliance with Traffic Signals

Colors in traffic signals improve compliance by providing clear and consistent messages. Red commands attention, yellow signals caution, and green encourage movement. This clarity minimizes decision-making delays and ensures safer roads. The integration of LED technology further enhances visibility, making signals more effective in various lighting conditions.

Visual Structure of Automatic Traffic Lights

Physical Design

Shape and Size of Signal Lights

The physical design of traffic signals plays a crucial role in ensuring their effectiveness. Signal lights are typically circular, as this shape provides uniform illumination and is easily recognizable. The size of these lights is standardized to maintain consistency across traffic systems. Larger lights improve visibility, especially in areas with high-speed traffic. Reflective backplates are often added to enhance the visibility of signals by reducing glare and improving contrast against bright backgrounds.

Modern designs frequently incorporate LED lights. These lights offer consistent brightness and high-intensity output, ensuring visibility in various lighting conditions. Anti-glare optics further enhance clarity, making signals easier to interpret for drivers. Elevating traffic lights using mast arms or overhead mounting avoids obstructions and ensures that drivers can see them from a distance.

Vertical vs. Horizontal Layouts

Traffic signals are arranged in either vertical or horizontal layouts, depending on regional preferences and road conditions. Vertical layouts are more common and feature a top-to-bottom arrangement of red, yellow, and green lights. This design is intuitive and aligns with the natural order of color perception. Horizontal layouts, on the other hand, are often used in areas with low-hanging obstacles or wide intersections. Both layouts prioritize visibility and clarity, ensuring drivers can quickly interpret the signals.

Optimal Placement and Visibility

Positioning for Maximum Driver Visibility

The placement of traffic signals directly impacts their effectiveness. Signals are typically positioned at intersections, where they are most needed for traffic control. Overhead mounting or mast arms elevate the lights, ensuring they remain unobstructed by vehicles or roadside structures. Studies, such as the NCHRP Project on Overhead Signs, highlight the importance of luminance and retro-reflectivity in improving the conspicuity of signals. Proper placement ensures that drivers can see and respond to signals promptly, reducing the risk of accidents.

Distance and Angle Considerations

The distance and angle at which traffic signals are placed influence their visibility. Signals must be visible from a sufficient distance to give drivers ample time to react. Research from the University of Minnesota shows that well-lit intersections reduce nighttime crashes, while optimal illuminance levels between 8-12 lx improve visibility. Positioning signals at the correct angle ensures that they are visible to all approaching vehicles, regardless of their lane or speed.

Effect of Light Size and Spacing

Clarity of Message Communication

The size and spacing of signal lights are carefully designed to communicate messages clearly. Larger lights are easier to see, especially in adverse weather conditions. Adequate spacing between lights prevents visual overlap, ensuring that each signal is distinct and unambiguous. This clarity is essential for effective traffic management, as it reduces the likelihood of driver confusion.

Avoiding Visual Overlap or Confusion

Proper spacing between signal lights minimizes the risk of visual overlap, which can lead to misinterpretation. Traffic systems often use reflective backplates and anti-glare optics to enhance the visibility of individual lights. These features ensure that drivers can distinguish between signals, even in challenging lighting conditions. By avoiding confusion, traffic signals contribute to safer and more efficient traffic control.

The Relationship Between Color and Visual Structure

Complementary Design

How Color and Structure Work Together

The design of automatic traffic lights relies on a seamless integration of color and structure to ensure effective communication. Colors like red, yellow, and green are paired with specific shapes and arrangements to create a system that drivers can quickly interpret. For instance, the circular shape of signal lights enhances uniform illumination, while their vertical or horizontal layouts align with the natural order of color perception. This complementary design ensures that traffic signals remain intuitive and universally recognizable, even in diverse traffic environments.

The structural elements of traffic lights also enhance the visibility of colors. Reflective backplates and anti-glare optics improve clarity, especially in bright or low-light conditions. These features work in tandem with the high-visibility wavelengths of red and yellow to reduce misinterpretation. By combining color and structure effectively, traffic light control systems promote road safety and efficient traffic management.

Ensuring Consistency Across Traffic Systems

Consistency in traffic light design is crucial for maintaining uniformity across different regions. Standardized color codes and layouts ensure that drivers can understand signals regardless of location. This uniformity reduces confusion and enhances compliance with traffic rules. For example, the global adoption of red for stop, yellow for caution, and green for go has created a universal language for traffic control. Consistent design elements, such as the size and spacing of lights, further contribute to the clarity and effectiveness of traffic signals.

Contrast and Readability

Importance of High-Contrast Colors

High-contrast colors play a vital role in improving the readability of traffic signals. Red, yellow, and green are chosen for their ability to stand out against various backgrounds. Their distinct wavelengths make them easily distinguishable, even from a distance. This contrast ensures that drivers can quickly interpret signals, reducing the risk of accidents. Adjustments in panel angles and the addition of visors further enhance visibility by minimizing glare and improving clarity.

Reducing Misinterpretation Through Design

Traffic light designs incorporate several strategies to minimize misinterpretation. The table below highlights some of these approaches:

Strategy	Description
Wavelength Selection	High-visibility wavelengths like amber and red align with human eye sensitivity, making signals more conspicuous.
Visibility Enhancements	Adjusting panel angles and adding visors reduce glare, improving clarity and legibility from various distances.
Clear Signals	Bright, unambiguous instructions help prevent confusion, especially in high-risk areas.

These design elements ensure that drivers receive clear and accurate messages, enhancing road safety and traffic management.

Impact on Driver Behavior

Prompting Timely Reactions

The design of automatic traffic lights significantly influences driver behavior. Studies show that the height and placement of signals affect how quickly drivers notice and respond to them. Properly positioned lights, combined with the high visibility of red and yellow, prompt timely reactions. This reduces decision-making delays and improves compliance with traffic rules. Clear signals also help drivers anticipate changes in traffic conditions, minimizing the likelihood of accidents.

Minimizing Decision-Making Delays

Traffic light control systems aim to simplify decision-making for drivers. The use of distinct colors and clear layouts ensures that signals are easy to interpret. The table below summarizes findings from studies on the impact of traffic light design on driver behavior:

Aspect	Findings
Height Impact	Affects driver behavior and reaction times
Signal Recognition	Influences noticing and responding to signals
Compliance	Affects adherence to traffic rules
Accident Rates	Correlates with vehicle collisions due to height issues

By addressing these factors, traffic signals enhance road safety and contribute to efficient traffic management.

Technological Advances in Automatic Traffic Lights

LED vs. Incandescent Bulbs

Differences in Light Clarity and Energy Efficiency

LED technology has revolutionized traffic light control by offering superior energy efficiency and clarity compared to traditional incandescent bulbs. LEDs achieve between 37 and 120 lumens per watt, while incandescent bulbs only reach about 10 lumens per watt. This efficiency reduces energy consumption significantly, as incandescent bulbs waste 90% of their energy as heat. The table below highlights the operational differences:

Traffic Light Type	Energy Consumption	Operational Cost Impact
LED	Significantly less	Lower energy bills
Incandescent	Higher	Increased operational costs

LEDs also provide consistent brightness, ensuring clear visibility in various conditions. This makes them an ideal choice for urban traffic management systems.

Improved Color Rendering with LEDs

LEDs enhance color rendering, which is critical for traffic management. They produce vibrant and distinct colors, reducing the risk of misinterpretation. Unlike incandescent bulbs, LEDs maintain their color accuracy over time, ensuring compliance with traffic light pre-emption standards. Their ability to represent colors accurately improves the reliability of electronic traffic signals.

Smart Traffic Signals

Adaptive Control Based on Traffic Flow

Smart traffic signals use adaptive control to optimize traffic flow. These systems adjust light cycles based on real-time data, reducing congestion and improving efficiency. The table below outlines the benefits of adaptive traffic light control:

Benefit	Description
Reduced Congestion	Adjusts timings based on real-time vehicle data to minimize delays.
Enhanced Safety	Detects vehicles and pedestrians accurately, ensuring timely signal changes.
Energy Efficiency	Reduces energy consumption through optimized operations.
Sustainable Management	Minimizes idling and emissions, contributing to eco-friendly traffic management.

Adaptive systems also improve pedestrian safety by accounting for their presence during signal adjustments.

Integration with Sensors and AI

Modern intelligent traffic management systems integrate sensors and AI to enhance efficiency. These technologies enable smarter sensors to analyze data locally and make decisions without central intervention. Multi-sensor fusion combines data from video, radar, and inductive loops, improving accuracy even in challenging conditions. Wireless sensor networks, supported by 5G, ensure low-latency data transmission, enabling seamless communication across urban traffic management systems.

Integration with Smart City Infrastructure

Interconnected Systems for Traffic Efficiency

Interconnected systems play a vital role in intelligent traffic management. They optimize traffic flow by using data from sensors and cameras to manage signals effectively. Synchronizing traffic signals with public transit schedules reduces congestion and enhances transportation efficiency. These systems also integrate renewable energy sources, contributing to sustainable urban development.

Enhancing Safety Through Real-Time Adjustments

Real-time adjustments in traffic lights enhance safety and reduce congestion. Intelligent systems use vehicle volume and speed data to modify signal timings dynamically. This reduces delays and the number of stops, optimizing road usage. Accurate detection of vehicles and pedestrians ensures timely signal changes, improving overall safety. These advancements support emergency vehicle pre-emption, allowing emergency vehicles to navigate traffic efficiently.

Challenges and Future Directions

Visibility Issues

Problems Caused by Weather and Lighting

Weather and lighting conditions significantly impact the visibility of automatic traffic lights. Rain, fog, and snow can obscure signals, making it difficult for drivers to interpret them. Bright sunlight or glare can also reduce the clarity of electronic traffic signals, especially during dawn or dusk. These challenges increase the risk of accidents, particularly at busy intersections. To address these issues, traffic management systems often incorporate reflective backplates and anti-glare visors. However, adverse weather remains a persistent obstacle for ensuring consistent visibility.

Addressing Visual Obstructions

Visual obstructions, such as overgrown trees, tall vehicles, or poorly placed signals, hinder the effectiveness of traffic control systems. Drivers may struggle to see signals in time, leading to delayed reactions or non-compliance. Intelligent traffic management solutions, such as elevated mast arms and optimized signal placement, help mitigate these problems. Additionally, integrating sensors with real-time monitoring capabilities can detect obstructions and alert maintenance teams promptly. These measures ensure that signals remain visible and functional, even in challenging environments.

Standardization

Need for Global Consistency in Design

Global consistency in traffic light design is essential for seamless traffic management. Standardized color codes and layouts allow drivers to interpret signals accurately, regardless of location. This uniformity is particularly important for international travelers and autonomous vehicles. A consistent system reduces confusion and enhances compliance, contributing to safer roads. Organizations like the International Organization for Standardization (ISO) play a key role in promoting these standards across countries.

Challenges in Implementing Uniform Standards

Implementing uniform standards for automatic traffic lights faces several challenges. Regional preferences, infrastructure limitations, and varying traffic laws complicate the process. For example, some countries use horizontal layouts, while others prefer vertical arrangements. Adapting to these differences requires significant coordination and investment. Despite these obstacles, efforts to harmonize traffic control systems continue to advance, driven by the need for efficient and safe transportation networks.

The Future of Automatic Traffic Light Design

Dynamic or Adaptive Color Signals

Dynamic or adaptive color signals represent a promising innovation in traffic control. These systems use real-time data to optimize traffic flow and improve safety. Emerging technologies propose new colors, such as blue for autonomous vehicle zones, white for emergency vehicle priority, and purple for public transport lanes. These additions aim to address modern traffic challenges and enhance the functionality of actuated traffic signal systems. Adaptive signals also adjust their timing based on traffic volume, reducing congestion and improving efficiency.

Innovations in Traffic Light Technology

Technological advancements continue to transform automatic traffic light design. Key innovations include:

• Smarter sensors equipped with AI for local data analysis and decision-making.
• Multi-sensor fusion, combining data from cameras, radar, and inductive loops for improved accuracy.
• Wireless sensor networks that enable seamless communication and data transmission.
• Predictive maintenance systems that monitor sensor data to detect anomalies and optimize performance.

These innovations enhance the reliability and efficiency of electronic traffic signals. Smart LED traffic signals, for instance, offer real-time adaptability and energy efficiency, making them ideal for modern urban environments. By integrating these technologies, traffic management systems can better address the needs of growing cities and reduce the likelihood of accidents.

The relationship between the colors and visual structure of automatic traffic lights forms a well-engineered system that ensures clarity and road safety. The science behind color perception and the strategic design of these signals work together to reduce accidents and improve traffic compliance. As technology progresses, smarter systems will redefine traffic management.

Digital traffic signals will dynamically adjust in real time to prioritize public transport and reduce congestion.

Intelligent systems will integrate IoT devices and AI to collect real-time data, enhancing traffic flow and environmental monitoring.

Interconnected networks will leverage big data and predictive analytics to create responsive urban traffic systems.

These advancements will support emergency vehicle navigation and meet the demands of modern transportation.
