Arrow Board for Highway Incident Management and Solar Light Tower Selection: Preventing Secondary Crashes at Night Scenes

Key Takeaways
- Secondary crashes at active incident scenes are a leading cause of responder fatalities — the moth effect draws inattentive drivers toward uncontrolled bright light sources at night.
- MUTCD §6F.61 guidance designates Type C arrow panels for lane closures on roads posted above 45 mph; most state DOT supplements treat this as a de facto requirement — verify against your state TTC manual.
- For a standard 12-foot lane at 65 mph, MUTCD Table 6C-4 sets the minimum merging taper length at 780 feet — not the speed number in feet. Incorrect taper setup is one of the most common TIM compliance failures.
- Solar light towers with directional optics deliver the even illuminance distribution that FHWA work zone guidance targets for incident zones, without the glare spill that worsens moth-effect attraction.
- A three-device stack — arrow board trailer + solar light tower + upstream VMS — addresses channelization, illumination, and advance warning independently and simultaneously.
- FEMA BRIC, FHWA HSIP, and DHS UASI all fund TIM equipment. Documentation requirements are covered in our federal grant compliant traffic safety equipment guide.
What Is the Moth Effect — and Why It Kills Responders
Every year, secondary crashes at active incident scenes injure and kill the responders who just arrived to help. The primary mechanism is the moth effect: at night, drivers unconsciously steer toward the brightest light source in their visual field. When that source is an unshielded generator flood or an unstructured cluster of emergency strobes — positioned directly in the path of approaching traffic — an inattentive driver follows the light rather than the lane.
The FHWA Traffic Incident Management handbook identifies secondary crashes as a compounding hazard that extends scene duration and multiplies responder exposure. The NLEOMF-NHTSA Officer Safety Partnership specifically identifies inadequate channelization and improper scene lighting as contributing factors in roadway struck-by fatalities — a finding that applies to law enforcement, fire/EMS, and highway maintenance crews equally.
Standard flares and static cones do not solve this problem. Flares produce omnidirectional white-orange light with no directional information. Cones provide no active visibility beyond their reflective band. Only a highway patrol arrow board displaying a sequential Type C pattern gives approaching drivers a clear, active visual directive — with enough lead time at speed to complete a lane change before reaching the taper. The arrow board for highway incident scenes is not supplemental equipment; under MUTCD Chapter 6I guidance, it is the baseline expectation for intermediate and long-duration incidents on high-speed roadways.
MUTCD Compliance Framework for Incident Scene Traffic Control
Chapter 6I — Traffic Incident Management Requirements
MUTCD Chapter 6I classifies incidents by expected duration and prescribes minimum TCD requirements for each tier:
| Incident Duration | Classification | Minimum TCD Guidance |
|---|---|---|
| < 30 minutes | Short-duration | Advance warning + cones or flares at scene perimeter |
| 30 min – 2 hours | Intermediate | Advance warning + arrow board or channelizing devices + shadow vehicle |
| > 2 hours | Long-duration | Full TCD setup: arrow board + upstream VMS + scene lighting + formal taper |
Most Chapter 6I provisions are classified as Guidance rather than Standard under MUTCD’s compliance hierarchy, meaning they represent recommended best practice rather than a legal mandate. However, the majority of state DOT supplements elevate these provisions to enforceable requirements for incidents on state and federal highways. Always verify the applicable compliance tier against your state’s TTC manual before deployment.
For intermediate and long-duration incidents on roads posted above 45 mph, Chapter 6I guidance calls for active channelization — a Type B or Type C incident response arrow board positioned at the upstream taper apex, not at the scene edge. Positioning the arrow board at the incident itself rather than the taper is one of the most common placement errors identified in FHWA TIM field reviews.
§6F.61 — Type C Arrow Panel Requirements
Section §6F.61 outlines specific MUTCD arrow board requirements by defining three distinct display classes. The manual designates the Type C fully illuminated sequential pattern for high-speed roads. Traffic control crews must deploy this specific panel for lane closures above 45 mph and nighttime incidents.
These Type C panels must meet the following criteria:
- Minimum display area: 48 inches × 96 inches for Type C panels
- Flash rate: 25–40 flashes per minute in sequential mode
- Minimum legibility distance: 1.0 mile under day and night conditions
- Panel surround retroreflectivity: must meet the minimum coefficient per MUTCD Table 6F-1
§6F.61 is classified as Guidance in the 2009 MUTCD edition. Most state DOT supplements — including California, Texas, and Florida — elevate Type C compliance to a Standard for highway incident scenes. Confirm the applicable edition and supplement for your jurisdiction before specifying equipment.
Procurement officers should request a §6F.61 display class compliance certificate from the manufacturer, referencing the specific MUTCD edition.
ANSI/IES RP-8-22 — Roadway Lighting Standards for Incident Scenes
ANSI/IES RP-8-22 provides roadway lighting design criteria covering illuminance, uniformity, and glare control for roadway and parking facilities. For work zone and incident scene lighting, FHWA guidance references a maintained horizontal illuminance target of 1.0–2.0 foot-candles (fc), with the higher end applicable to high-speed facilities and nighttime operations. These are recommended targets, not legally mandated thresholds — but they represent the benchmark most state DOT compliance reviewers reference when evaluating incident scene lighting adequacy.
Generator-powered metal halide floods commonly exceed 8.0 fc in the beam center while delivering less than 0.5 fc at the taper and approach area. This uneven, high-contrast distribution creates exactly the glare spike that worsens moth-effect disorientation for approaching drivers. Solar light towers with adjustable directional optics are specifically designed to deliver even-distribution illuminance within the FHWA-referenced 1.0–2.0 fc target band
The 3-Device Stack: Arrow Board Trailer, Solar Light Tower, and Upstream VMS
No single device eliminates the secondary crash risk. The arrow board for highway incident management requires upstream advance warning to give drivers adequate reaction distance, and it requires scene illumination that reinforces — rather than contradicts — its directional signal. Each device in the three-device stack addresses a different behavioral failure mode:
| Device | Role at Scene | Applicable Standard | Notes |
|---|---|---|---|
| Type C Arrow Board (trailer-mounted) | Lane channelization at upstream taper apex | MUTCD §6F.61 guidance (Type C) | Positioned at taper, not at scene |
| Solar Light Tower | Even-distribution scene illumination; low glare spill to approach lanes | FHWA work zone illuminance target: 1.0–2.0 fc (ref. ANSI/IES RP-8-22) | Directional optics critical |
| VMS Board (trailer-mounted, upstream) | Advance warning 0.5–1.5 miles before taper; 60–90 sec driver decision time | MUTCD Chapter 6I / §6F.02 | Distance scales with posted speed |
The upstream VMS captures distracted drivers before they enter the moth-effect zone. Incident commanders routinely deploy portable variable message signs for emergency response to broadcast real-time detours. The trailer-mounted arrow boards then provide an unambiguous visual lane directive. The solar light tower safely illuminates the work area. This eliminates the central glare attractor causing moth-effect swerving. Remove any element, and the system creates a fatal gap.
From Optraffic inquiries: A US highway construction contractor managing a long-duration nighttime lane closure on an interstate specified solar light towers over generator floods after a state DOT supervisor flagged “light confusion” complaints from approaching drivers. The even-beam solar configuration resolved the issue; the generator units were removed from that site’s TIM protocol.

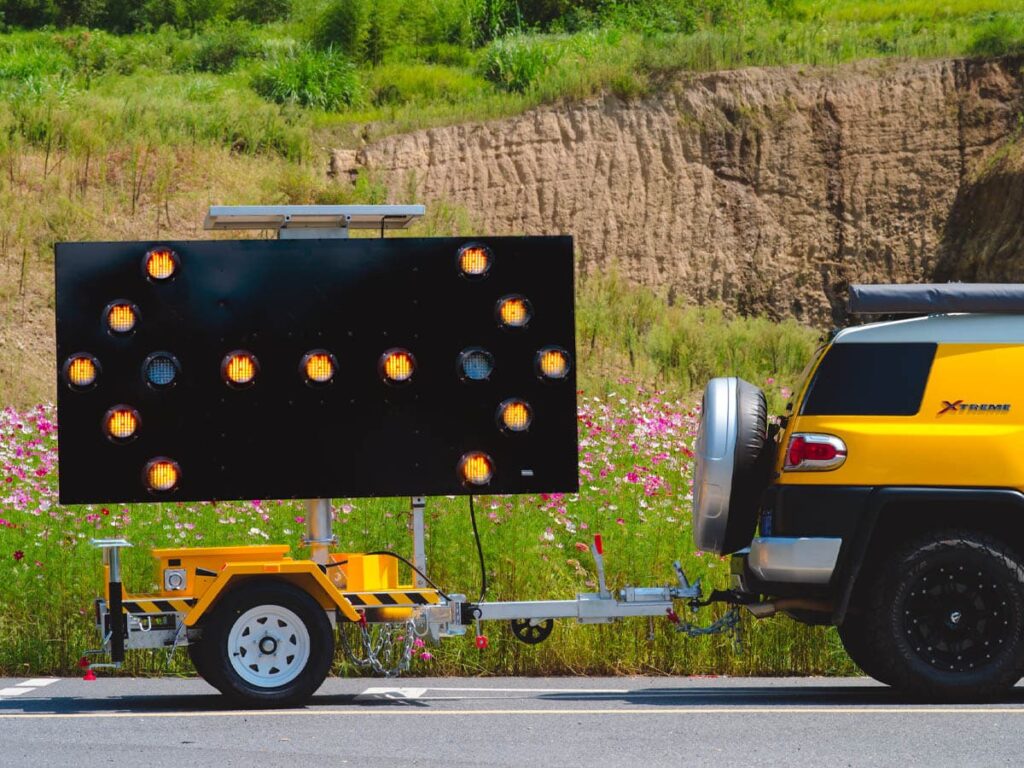

Arrow Board Selection: Trailer-Mounted vs. Truck-Mounted Arrow Board
Trailer-Mounted Arrow Board: Intermediate and Long-Duration Incidents
The arrow board trailer is the appropriate choice for incidents expected to last more than 30 minutes. Three operational advantages over vehicle-mounted units apply at extended incidents:
- Independent positioning: The trailer can be placed precisely at the taper apex without committing an emergency vehicle to that location. A shadow vehicle parked behind a truck-mounted board extends the incident footprint and ties up a response asset.
- Solar power autonomy: Trailer-mounted units with onboard solar panels and battery banks operate continuously without engine idling — no generator fuel, no exhaust at the scene perimeter. Optraffic’s Solar Arrow Board Trailer runs a 25-lamp Type C LED panel on an integrated solar system.
- Single-operator setup: The trailer can be dropped and leveled by one person in under 5 minutes, freeing the tow vehicle immediately for other scene functions.
Traffic management contractors in Australia have specifically requested C-class trailer-mounted arrow boards for highway incident applications, with follow-on inquiries for replacement shrouds and structural components — indicating high field utilization rates at extended roadway incidents.
Truck Mounted Arrow Board: Short-Duration and Mobile Operations
The truck mounted arrow board is appropriate for short-duration incidents under 30 minutes, mobile maintenance operations, and rolling slowdowns. Vehicle-mounted units deploy faster than trailer setups and require no tow vehicle — a meaningful advantage when the responding unit is operating alone. For fixed incident scenes where a tow vehicle is available, TIM coordinators consistently prefer trailer-mounted configurations because they do not commit a command or response vehicle to a static position.
Arrow Board Specification Checklist
| Specification | Minimum Requirement | Compliance Basis |
|---|---|---|
| Display class | Type C (fully illuminated sequential) | MUTCD §6F.61 guidance |
| Display area | 48″ × 96″ minimum | MUTCD §6F.61 |
| Flash rate | 25–40 flashes/min sequential mode | MUTCD §6F.61 |
| Visibility distance | ≥ 0.5 miles day and night | MUTCD §6F.61 |
| LED configuration | 15-lamp federal minimum (MUTCD Fig. 6F-6); Optraffic Type C panels ship with 25-lamp configuration | Exceeds §6F.61 baseline |
| Power system | Solar + sealed battery (min. 72-hr autonomy) | Operational continuity |
| IP rating | IP65 | Field weather conditions |
| Setup time | < 5 min, single operator | TIM operational requirement |
| Compliance documentation | §6F.61 certificate on request | Agency audit / procurement file |
Portable Solar Light Tower Selection for Night Incident Scenes
Solar Powered Lighting Tower vs. Generator: The Glare Trade-Off
The case for a solar powered lighting tower at night incident scenes is not primarily about fuel cost — it is about photometric control. Generator-powered metal halide floods produce high lumen output concentrated in a narrow beam cone. Aimed at the work zone, they create a central hotspot that exceeds the 1.0–2.0 fc target band at the scene center while leaving the taper and approach lanes comparatively dark. This high-contrast gradient is precisely the light environment that triggers moth-effect disorientation in approaching drivers.
Solar light towers with directional LED arrays distribute lumens more evenly across the illuminated footprint. Adjustable mast height — 7 meters is standard for highway incident use — elevates the light source above vehicle cab height, reducing direct glare to approaching drivers while maintaining ground-level illuminance for responders. A portable solar light tower at 40,000 lm output meets the FHWA-referenced 1.0–2.0 fc illuminance targets for a standard highway work zone without the generator noise that complicates radio communication at active scenes.
Solar Hybrid Light Tower: Extended Operations
For long-duration incidents exceeding 48 hours — major structural failures or bridge strike closures — teams require robust equipment. A solar hybrid lighting tower provides continuous illumination when consecutive overcast days deplete the battery bank. The generator activates automatically to maintain overnight scene illumination. When these extended incident recoveries transition into formal repair zones, crews deploy portable traffic signals for road maintenance. This equipment automates long-term traffic flow and entirely eliminates manual flagging risks.
Light Tower Specification Checklist
| Specification | Recommended Requirement | Rationale |
|---|---|---|
| Lumen output | ≥ 40,000 lm | IES RP-8-14 coverage for standard highway work zone |
| Mast height | ≥ 7 m adjustable | Clears vehicle cabs; reduces direct glare to approach lanes |
| Beam type | Directional adjustable optics | Even fc distribution; minimizes spill to travel lanes |
| Setup time | < 3 minutes, single operator | TIM operational requirement |
| Power autonomy | ≥ 72 hours solar-only | Covers intermediate and long-duration incidents |
| IP rating | IP65 | Highway weather conditions |
| Noise (solar mode) | < 65 dB at 7 m | Radio communication at active scene |
Arrow Boards for Traffic Control: Field Deployment Sequence
The following sequence is based on MUTCD Chapter 6I incident duration protocols. It is designed for a single TIM unit carrying one arrow board trailer, one portable solar light tower, and one upstream VMS trailer. Adjust timing and sequence for your agency’s staffing and equipment configuration.
Step 1 — T+0 min: Upstream VMS activation. Position the VMS trailer 0.5–1.5 miles upstream of the incident. Distance scales with posted speed: 1.5 miles for 65 mph, 0.5 miles for 45 mph. Activate advisory message (e.g., INCIDENT AHEAD / RIGHT LANE CLOSED / REDUCE SPEED). Park on the shoulder or gore area — never in the travel lane.
Step 2 — T+2 min: Taper cone deployment. Calculate merging taper length using MUTCD Table 6C-4. For roads posted at or above 45 mph: L = W × S, where W is lane width in feet and S is posted speed in mph. For a standard 12-foot lane at 65 mph, minimum taper length = 780 feet. For 45 mph: 540 feet. State DOT supplements may specify longer tapers — always verify against your state TTC manual before deployment. Deploy channelizing devices upstream-to-downstream. Responders remain behind the cone line at all times during setup.
Step 3 — T+5 min: Arrow board trailer positioning. Drop and level the trailer mounted arrow boards at the upstream taper apex. Activate Type C sequential pattern, directing traffic to the open lane. Confirm flash rate is within the 25–40 flashes/minute §6F.61 guidance range before leaving the unit.
Step 4 — T+7 min: Solar light tower deployment. Position the solar light tower at the scene perimeter — not at the taper. Extend mast to full height (7 m minimum). Orient beam arrays toward the work zone, away from the approaching travel lanes. Confirm outriggers are fully deployed before extending the mast.
Step 5 — T+10 min: Protected zone confirmed. All personnel work within the zone bounded by the cone taper and scene perimeter. Arrow board and VMS remain active until full lane clearance is confirmed.
Clearance — Sequential tear-down. Remove scene equipment first, working downstream to upstream. Retrieve the arrow board trailer last, after all cones are cleared and traffic is flowing normally. Deactivate and retrieve the upstream VMS only after the taper zone is fully clear.
Grant Funding for TIM Equipment
Arrow boards, solar light towers, and upstream VMS trailers are eligible for federal grant funding through multiple programs. Agencies that procure TIM equipment without advance grant documentation frequently forfeit reimbursement eligibility.
- FHWA Highway Safety Improvement Program (HSIP): Funds safety infrastructure at high-risk locations, including TIM equipment at high-frequency incident corridors. Equipment must be documented as part of an approved Highway Safety Plan.
- FEMA Building Resilient Infrastructure and Communities (BRIC): Funds hazard mitigation infrastructure for emergency response agencies. Arrow boards, light towers, and VMS units qualify when documented in an approved Hazard Mitigation Plan. See FEMA BRIC program.
- DHS Urban Area Security Initiative (UASI): Available to law enforcement and fire/EMS agencies in designated urban areas. TIM equipment serving dual law enforcement and emergency response functions qualifies under the Authorized Equipment List (AEL). See DHS HSGP / UASI.
When the Full Stack Isn’t Necessary
Matching equipment to incident classification prevents over-deployment and keeps the full stack available for major incidents:
- Short-duration incidents (< 30 min) on roads posted below 45 mph: A truck-mounted Type B arrow board with advance cones satisfies Chapter 6I minimum guidance. A light tower is not required if ambient illuminance meets FHWA work zone illuminance targets.
- Daytime incidents with adequate ambient light: Natural illuminance typically meets FHWA work zone illuminance targets. Light tower deployment is not required and may create unnecessary visual complexity at the scene.
- Rural 2-lane roads with low AADT: Chapter 6I allows Type A or B panels on lower-volume roadways. Consult your state DOT supplement for the applicable panel class by road type and speed.
- Mobile operations and rolling slowdowns: Truck-mounted arrow boards are the appropriate configuration. Trailer-mounted units cannot be used effectively in moving operations.
For non-enforcement speed monitoring at fixed locations — a distinct compliance question from TIM equipment — see our non-enforcement speed feedback sign certification guide. For law enforcement checkpoint configurations where TIM and access control intersect, see our police camera trailer for DUI checkpoint guide.
Frequently Asked Questions
What is the difference between a Type A, B, and C arrow board?
Type A uses a 25-lamp sequential pattern and is designated for roads posted at or below 45 mph. Type B uses a sequential pattern on a larger display area, covering roads up to 65 mph. Type C — the fully illuminated sequential pattern — must display the complete arrow outline simultaneously before sequencing, and is designated by MUTCD §6F.61 guidance for highway incident scenes above 45 mph. Confirm the applicable class for your road type and posted speed against your state DOT supplement.
Does every incident require an arrow board?
MUTCD Chapter 6I guidance calls for active channelization — including an arrow board — at all intermediate and long-duration incidents. Short-duration incidents have more flexibility but still require advance warning and scene perimeter marking at minimum. The arrow board becomes the guideline recommendation once the incident is classified as intermediate (30 min–2 hours) or involves a lane closure on a road posted above 45 mph. State supplements vary; verify the applicable requirement for your jurisdiction.
Can a solar light tower meet FHWA work zone illuminance targets?
Yes. Solar light towers at 40,000+ lm output meet the FHWA-referenced 1.0–2.0 fc illuminance targets for standard highway work zones. The critical variable is beam distribution, not total lumen output — generator units often produce higher peak lumens but with uncontrolled spill that creates an uneven footprint outside the recommended 1.0–2.0 fc target band.
How do I verify my arrow board meets §6F.61 for a procurement audit?
Request a §6F.61 display class compliance certificate from the manufacturer, referencing the specific MUTCD edition (2009 or 2023 revision). The certificate should confirm display class (A, B, or C), minimum lamp count, and flash rate range. This documentation should be included in the agency’s procurement file before bid submission.
What is the correct arrow board position at an incident scene?
The arrow board should be positioned at the upstream taper apex — not at the incident scene itself. Positioning the board at the scene edge is the most common MUTCD §6F.61 placement error. The taper begins at the arrow board and extends downstream toward the incident, with channelizing devices spaced at intervals not exceeding the posted speed in feet per MUTCD §6F.65 guidance.
Conclusion
The moth effect is a predictable physics problem. Arrow boards for traffic control paired with properly specified solar light towers are the engineering solution MUTCD and IES RP-8-14 point toward.
Type C trailer mounted arrow boards positioned at the upstream taper apex satisfy §6F.61 guidance for active channelization on high-speed highways. Portable solar light towers deliver even-distribution illuminance within IES RP-8-14 recommended targets — without the central glare spill that converts the scene into a moth-effect attractor. An upstream VMS gives approaching drivers the reaction distance they need before reaching the taper.
The three-device stack reduces struck-by exposure for every responder at the scene. All three components are grant-eligible through FHWA HSIP, FEMA BRIC, and DHS UASI — with correct documentation, agencies can fund the full configuration without capital budget impact.
